210MPa Chemical Injection Surface System Device
Share to
Product Overview
This set of equipment is mainly used for high-pressure injection of diesel and benzaldehyde. The device is a complete closed-loop system. According to the function, three skids are designed and divided. The main distinctions are as follows:
| Model | Name | Main Technical Parameters | Function Brief |
|
WY-210CH-J2 |

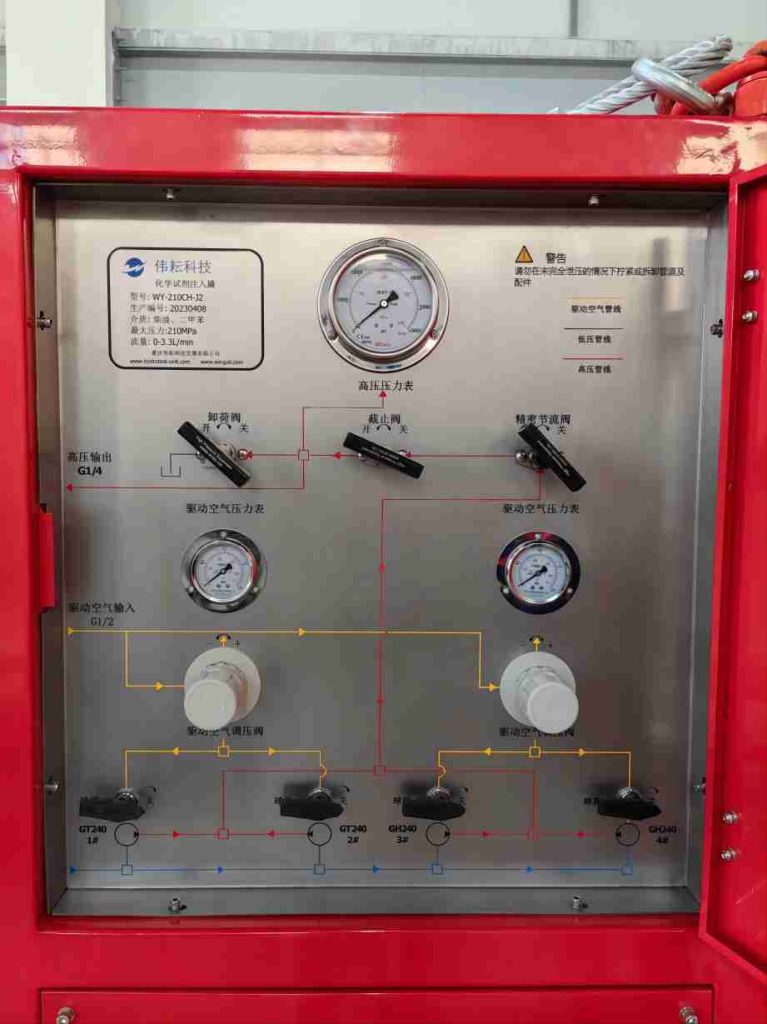

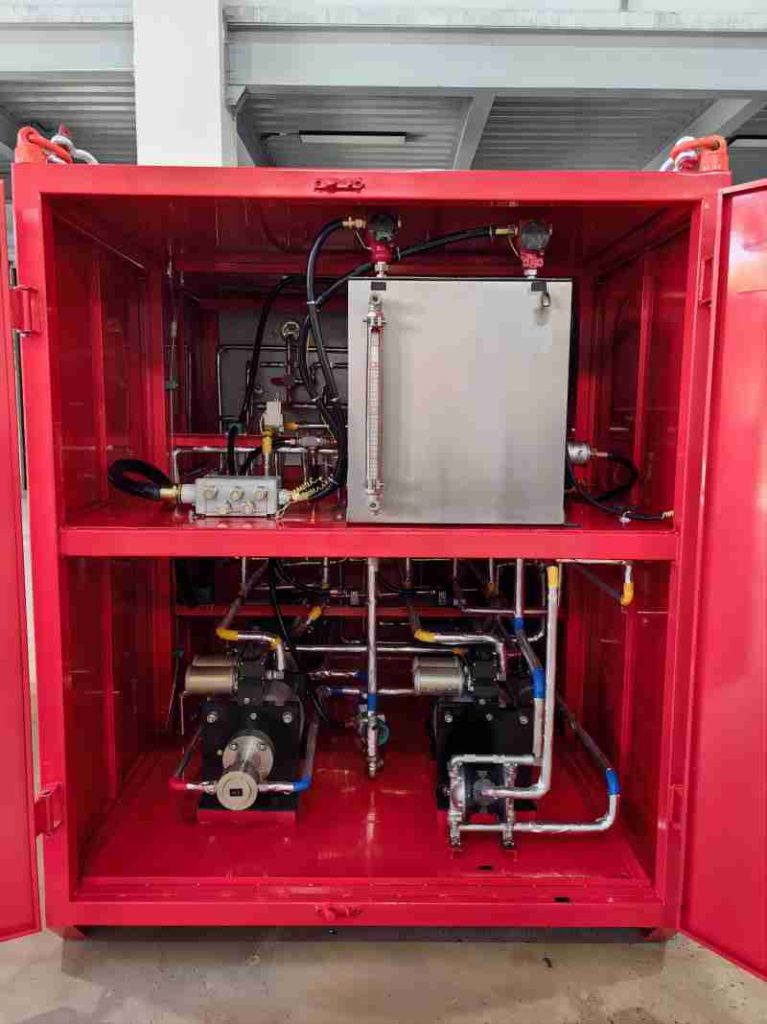

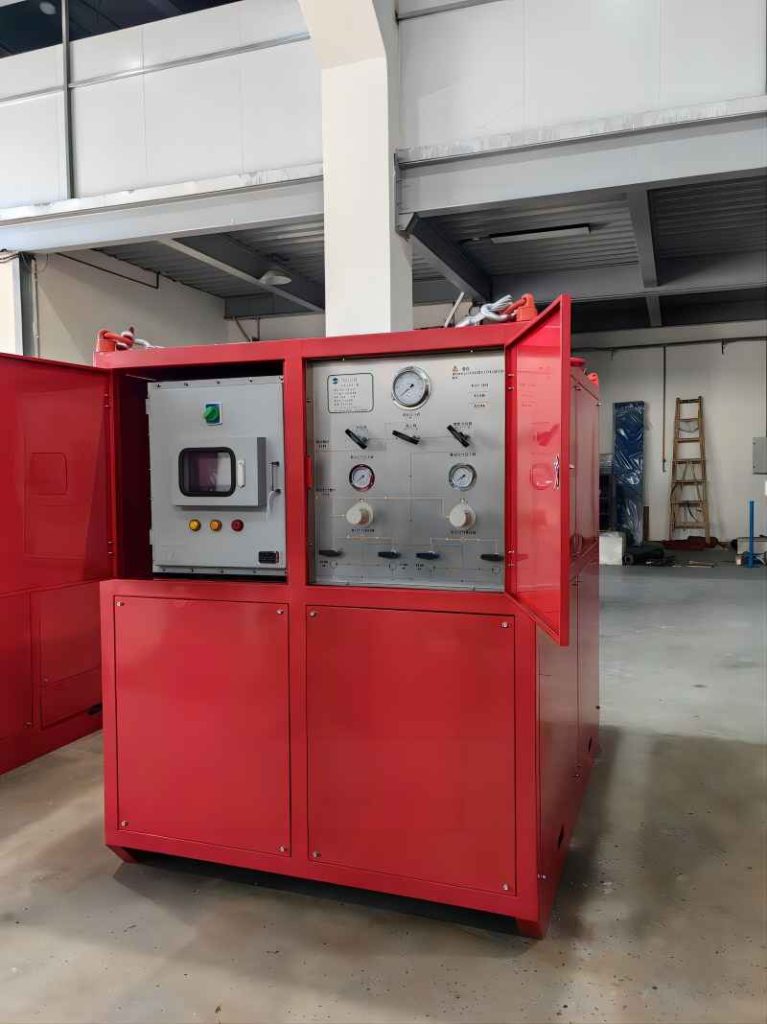

Chemical Reagent Injection Skid | Pressure: 210MPa Flow: 3.38L/min |
Self-contained equipment can only inject chemical reagents into the system |
| WY-100-J2 | Explosion-proof Air Compressor Skid | Pressure: 1MPa Displacement: 2.3m³/min |
Explosion-proof and energy-saving air compressors |
| WY-1000L | Chemical Reagent Storage Tank Skid | Volume: 1000L | Liquid storage tank with heating, heat preservation, and stirring |
Note: The equipment is a high-temperature and high-pressure injection system, please read this manual carefully before using the equipment. This practical manual mainly focuses on the use of safety and manual operation, and the automatic control is provided by a special manual for reference.
