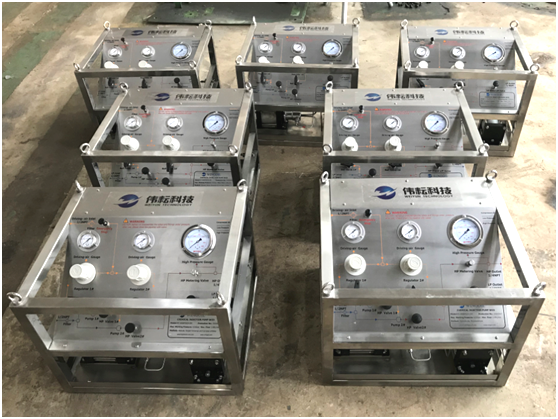

    • Chemical Injection Skid with Shockproof and Dual Scale Display Pressure Gauge

    • Chemical Injection Skid, is a piece of equipment designed to inject chemicals into a system at the required pressure of the system.
    • WINGOIL chemical injection skid provides low-pressure compressed air as a booster power source a pressure to keep convenience and safety. This equipment is applicated in surface low pressure, and downhole high pressure.

    Share to

    Features

    • > Low-pressure compressed air as booster power source  to keep convenience and safety.
    • > Adopted pressure to be self-locked to adjust output pressure keeps constant in case of overshoot under air-driven pressure setting constant.

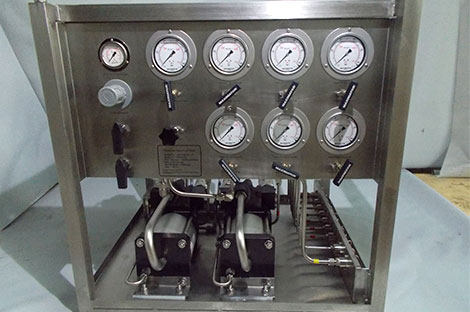

    • > With shockproof and dual scale display pressure gauge

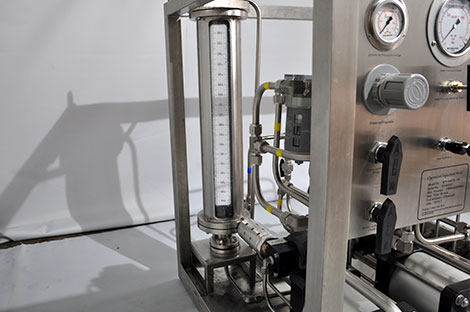

    • > Equipped with a glass column and high-precision flow control valve to meet the requirements of high flow rate chemical injection.The main -material are glass and 316s to meet the corrosion-proof requirements;
    • > All components, piping and valves are made of 316s or 316L, which can prevent from corrosion effectively ;
    • > has operation schematic on the control panel, which is easy to observe and operate.

    Specification

    • Chemicals: anti-frozen agent, viscosity reducer, blocking remover, biocide chemicals, oxygen scavenger, pour point disperant(PPD), anti-corrosion agent,
    • Pressure: 0~2000bar/29000PSI
    • Flow: 0~24L/min;(customize)
    • Pressure accuracy: ±1%FS
    • Ambient: -20℃ to 65℃
    • Application: surface low pressure, downhole high pressure.

    Technical Performances

    • -Max. outlet pressure: 4,000 psi
    • -Max. flow rate: 2.89 L/M
    • -Driving air inlet: NPT1/2F
    • -Fluid inlet: NPT1/2F
    • -HP outlet: NPT1/4
    • -Bleed-off outlet: NPT1/4
    • -No. of HP outlets: 1 (available for more outlets)
    • -Dimension: 700L×600W×550H(mm)
    • -Weight: 66 kgs

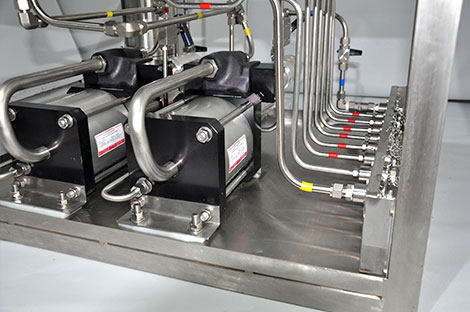

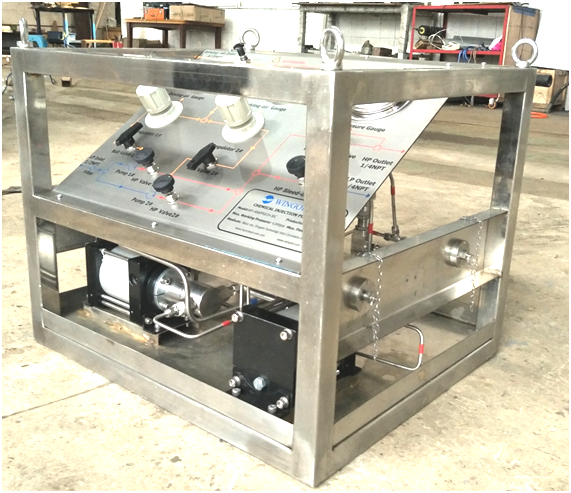

    • -Pneumatic pump : two sets of pumps, one for working, the other for standby
    • -Pump model: WYXH39-1
    • -Pressure ratio： 1:39
    • -Driven: By compressed air
    • -Driving air pressure: 100 PSI

    Part List

    • -Pneumatic pump, S/S, 2
    • -Air-driven ball valve, S/S, 6
    • -Air regulator, rubber & alloy, 2
    • -Bulkhead union, S/S, 2
    • -HP bleed-off valve, S/S, 1
    • -Air filter, S/S, 1
    • -HP gauge, S/S, 1
    • -LP gauge, S/S, 2
    • -Check valve, S/S, 2
    • -Safety valve, S/S, 1
    • -Emergency stop, Copper, 1
    • -Metering, S/S, 1
    • -Metering valve, S/S, 1
    • -Y strainer S/S, 1
    • -HP tubings, S/S, meters
    • -Connectors, S/S, numbers
    • -Frame, S/S 1

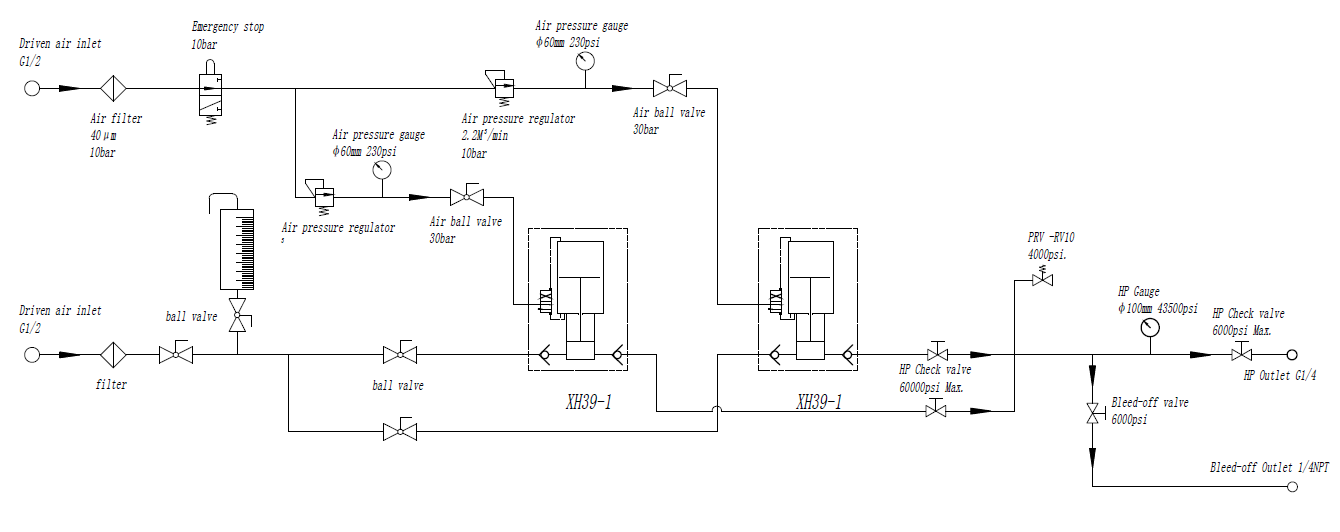

    Schematic Diagram
