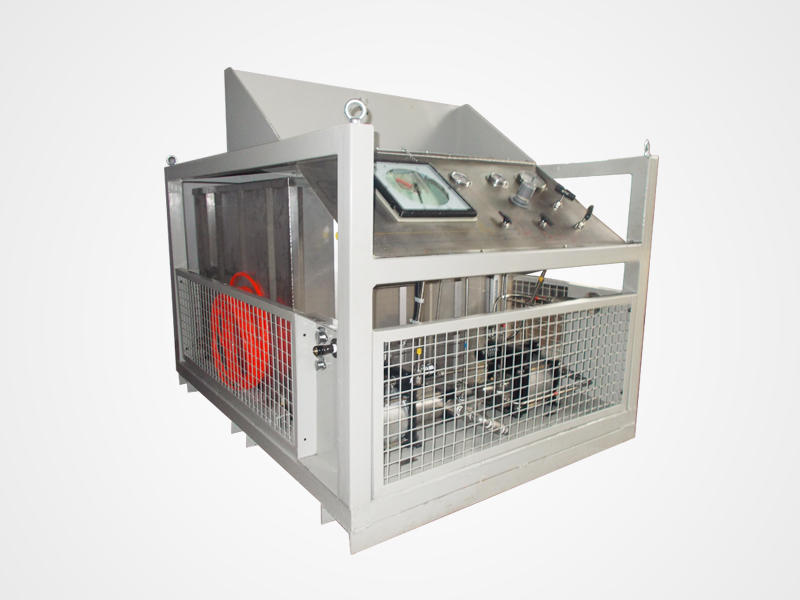

Pressure Testing System with Chart Recorder Pipeline Pressure Testing Equipment

Model: WY-700W-J1

Share to

Product Overview

This is a pressure test equipment with a liquid storage tank and a mechanical recorder. It is equipped with a 1000L liquid storage tank and uses compressed air as a power source to quickly press the detection medium and record pressure in real time.

Product Features

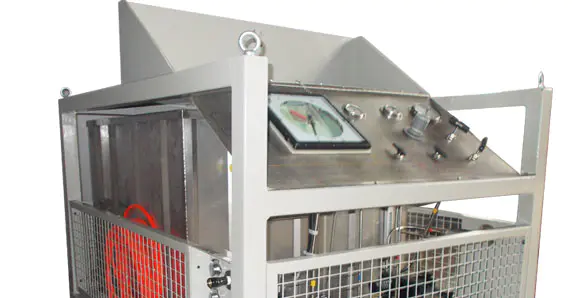

Pressure Testing System With Chart Recorder Pipeline Pressure Testing Equipment
  • ●  Flow chart of boosting etched on the control panel surface of the booster unit.
  • ●  Adopts air-driven hydro pump as the boosting unit, which have pressure self-locking function and effectively avoid overpressure.
  • ●  Stainless steel material withstanding harsh conditions.
  • ●  The large-displacement low-pressure pump and the small-displacement high-pressure pump are configured to achieve functional control of different pressures, flows, and compression times.
  • ●  With a mechanical recorder.
  • ●  The electrical component interfaces are placed in the explosion-proof box.
  • ●  The uniquely designed rope-retractor structure enables the coiling of the pipeline to be more regular and at the same time preliminary cleaning.
  • ●  Equipped with a large-capacity liquid storage tank, which can carry the media for on-site operation.

Performance Data

Test medium

Clear water

Max output pressure of low pressure pump

10Mpa

Max output pressure of high pressure pump

60Mpa

Max air pressure

1Mpa

Product Connection

Drive air inlet

G1/2

High pressure outlet 1

G1/2

High pressure outlet 2

G1/4-60°

Power interface

220V two-wire system

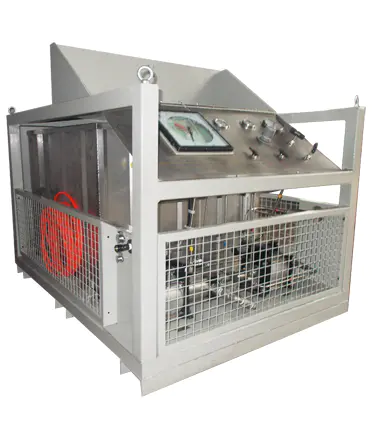

Pressure Testing System With Chart Recorder Pipeline Pressure Testing Equipment

Product Construction

Panel

Stainless steel

Water tank

Stainless steel

Pressure gauge

Stainless steel

Valve

Stainless steel

Tube

Stainless steel

Connector

Stainless steel

Hydraulic cylinder

Anodized aluminium

Piston

Stainless steel

Pump head

Stainless steel

Frame

Carbon steel

Low Pressure Pump_Hydraulic Pressure Static Conditions(@7bar)

Air pressure(bar)

0

1

2

3

4

5

6

7

Hydraulic pressure(bar)

0

10

20

30

40

50

60

70

Output flow(L/min)

35

30

26

24

20

19

18

17

High Pressure Pump_Hydraulic Pressure Static Conditions (@7bar)

Air pressure(bar)

0

1

2

3

4

5

6

7

Hydraulic pressure(bar)

0

100

200

300

400

500

600

700

Output flow(L/min)

3.6

3.5

3.3

3.1

3

2.95

2.9

2.87

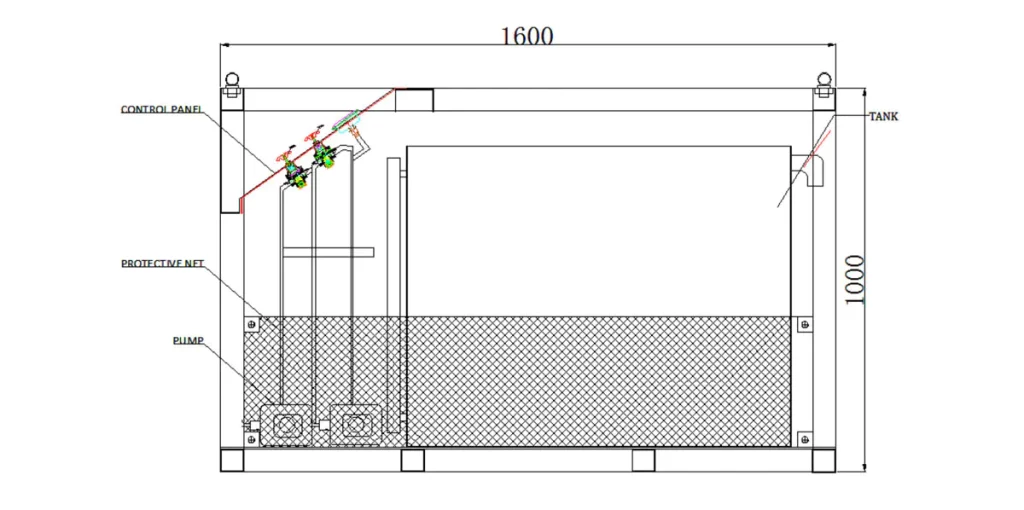

General Layout Drawing

Pressure Testing System With Chart Recorder Pipeline Pressure Testing Equipment
