35MPa Hydraulic Pipeline Test Bench

Overview

This 35MPa Hydraulic Pipeline Test Bench is designed for hydrostatic pressure testing using clean water. The pumps, valves, and piping are all made of stainless steel, enabling the system to withstand harsh operating conditions involving high temperatures and pressures. The equipment is equipped with a water injection pump and a pressure booster pump driven by a hydraulic power unit for conducting pressure tests.

This pressure boosting equipment is primarily used to boost the pressure of clean water in pipelines within a specified size range. The equipment has a theoretical maximum operating pressure of 35 MPa.

Model: WY-350GJ1

• The system uses a pressure boosting pump driven by a hydraulic power unit, ensuring stable operation and high safety.

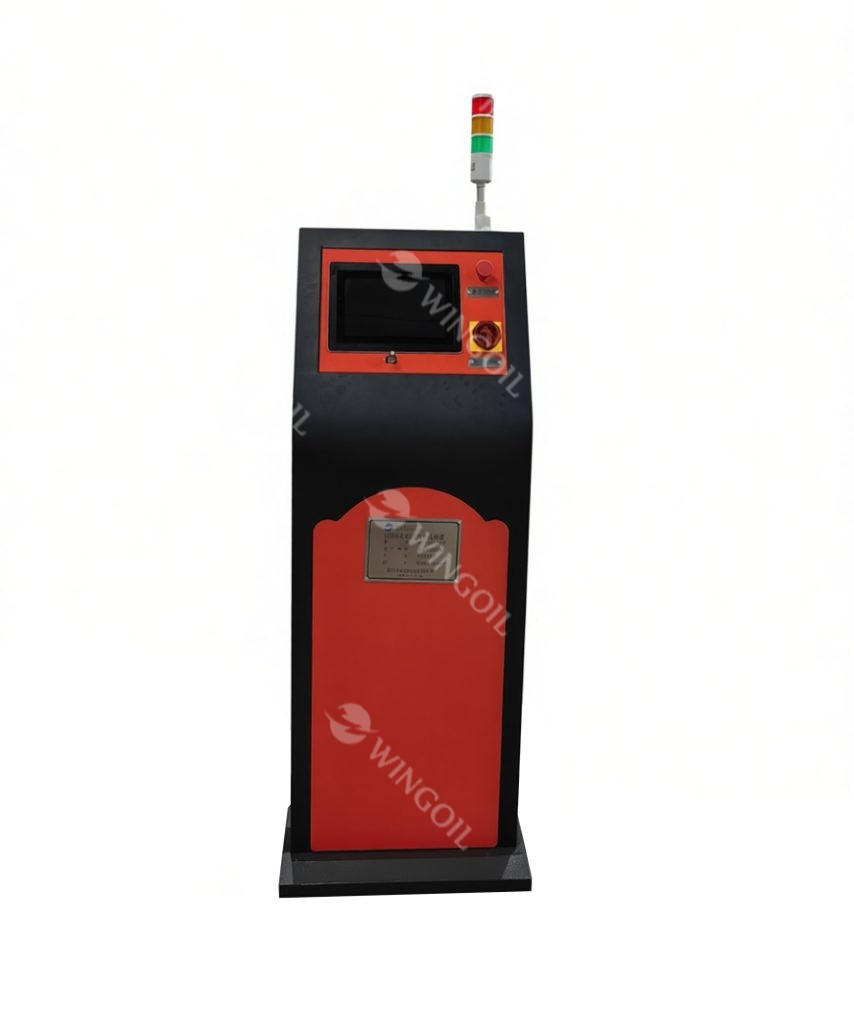

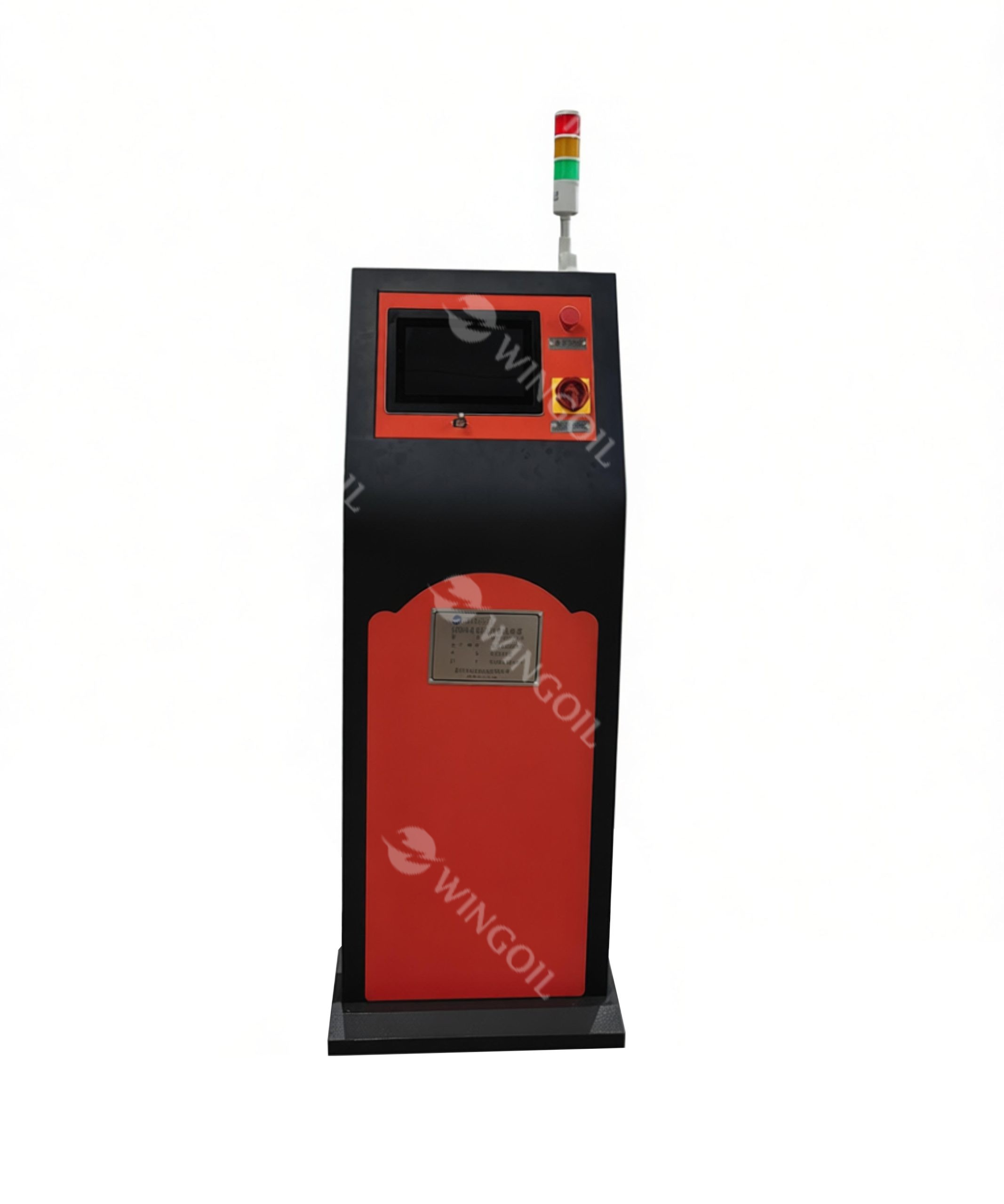

• Equipment controls are integrated into a remote control console, allowing operators to remain at a safe distance from the boosting system during pressure testing to prevent injuries from high pressure.

• The boosting system is designed with transparent glass panels, enabling operators to monitor the test specimen even when its door is closed.
