Overview

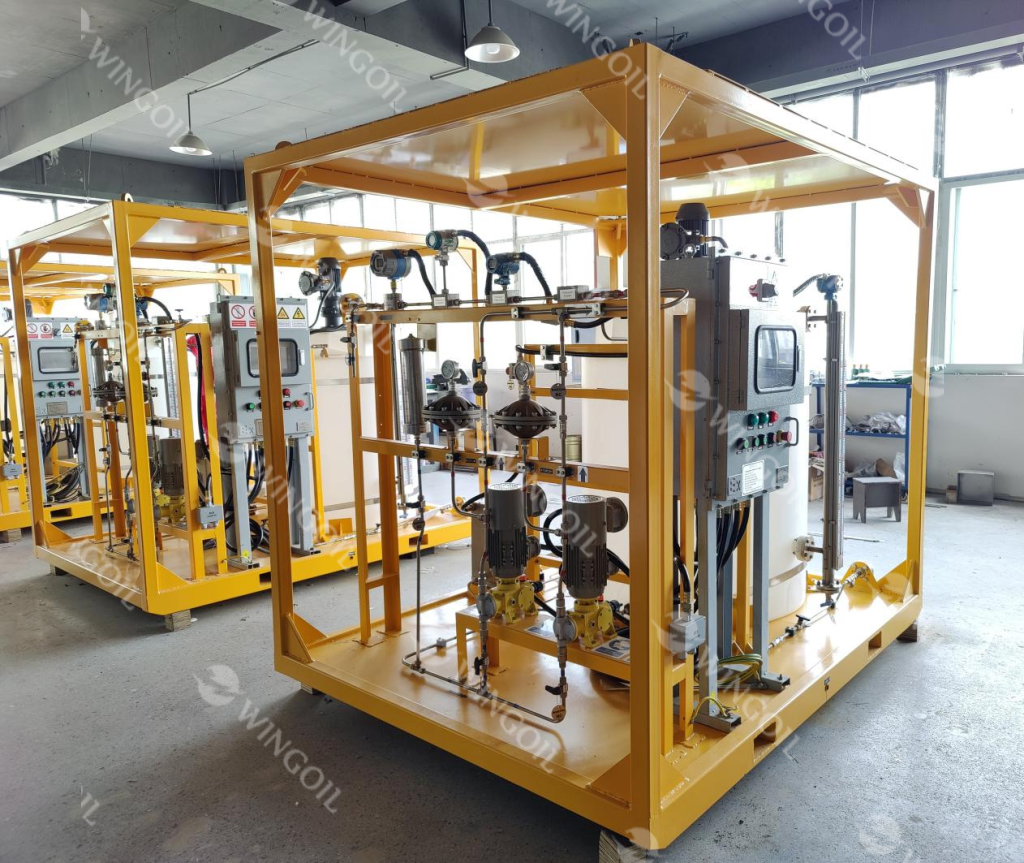

Chemical Injection Package is a fully automatic integrated chemical injection system suitable for oil field, water treatment, chemical, pharmaceutical and other industries, with strong integration, advanced technology, high degree of automation, etc. It can flexibly realize all or any combination of multiple functions such as automatic injection, automatic start and stop, remote monitoring, etc., and can transmit data to the monitoring center through Modbus.
Applicable Industries
- Environmental protection water treatment industry
- Food and pharmaceutical industries
- Oil and gas, chemical, and power energy industries
Structural Features and Working Principle
- Basic structure: Open skid-mounted
- Installation method: Stably placed on the level ground
- Frame material: Carbon steel
- Frame color: RAL1028 light orange
- Surface coating: Plastic powder coating
- Grounding: The skid is equipped with a dedicated ground pin
Features
- The main components of the package include an open skid-mounted structure, dosing part, storage tank part, control part, and eye wash.
- The control methods of the package are mainly divided into manual control and automatic scheduled task control.
- Stable three-phase AC power supply is required for the normal operation of the package.
Technical Parameter
| Chemical Medium | Model | Pressure | Flow Rate |
| Biocide | WY-10C-TJ1-L | 10bar / 145psi | 25L/h |
| Corrosion Inhibitor | WY-10C-TJ1-L | 10bar / 145psi | 25L/h |
| Oxygen Scavenger | WY-8C-TJ1-L | 8bar / 116psi | 20L/h |
| Water Clarifier | WY-8C-TJ1-L | 8bar / 116psi | 20L/h |
| Scale Inhibitor | WY-8C-TJ1-H | 8bar / 116psi | 40L/h |
| Demulsifier | WY-8C-TJ1-H | 8bar / 116psi | 40L/h |
