New Portable Hydro Test Pump Unit with Chart Recorder Shipped to Russia

Hours
Portable Hydro Test Pump Unit with Chart Recorder to Russia

The newly shipped Portable Hydro Test Pump Unit with Chart Recorder is a technological marvel, meticulously engineered to provide unparalleled efficiency and accuracy in hydro testing applications. Its portability sets it apart, allowing technicians to effortlessly transport and deploy it across various job sites. And its casters are designed to easily move equipment.

Parameters

  • Ambient temperature: 0 – 60℃
  • Driven Air Pressure: 0-8.3 bar
  • Testing medium: Water
  • Max. Output pressure: 1079 bar
  • Max. Flow rate: 35 L/min
  • Max. Driven-air Operating pressure: 8.3 bar
  • Connection:
    • Compressed air inlet: 1/2 NPT
    • Drain outlet of water tank: 1/2NPT
    • High Pressure Outlet: HF4
    • Bypass Line Outlet: HF4
    • Relief Outlet: Back to Tank

The shipment of Wingoil’s new portable hydro test pump unit with chart recorder to Russia marks a significant step forward in the country’s ability to conduct accurate and efficient fluid dynamics testing. The unit’s advanced features, including variable flow rate, high-pressure capability, and integrated chart recorder, offer substantial improvements over existing technologies.

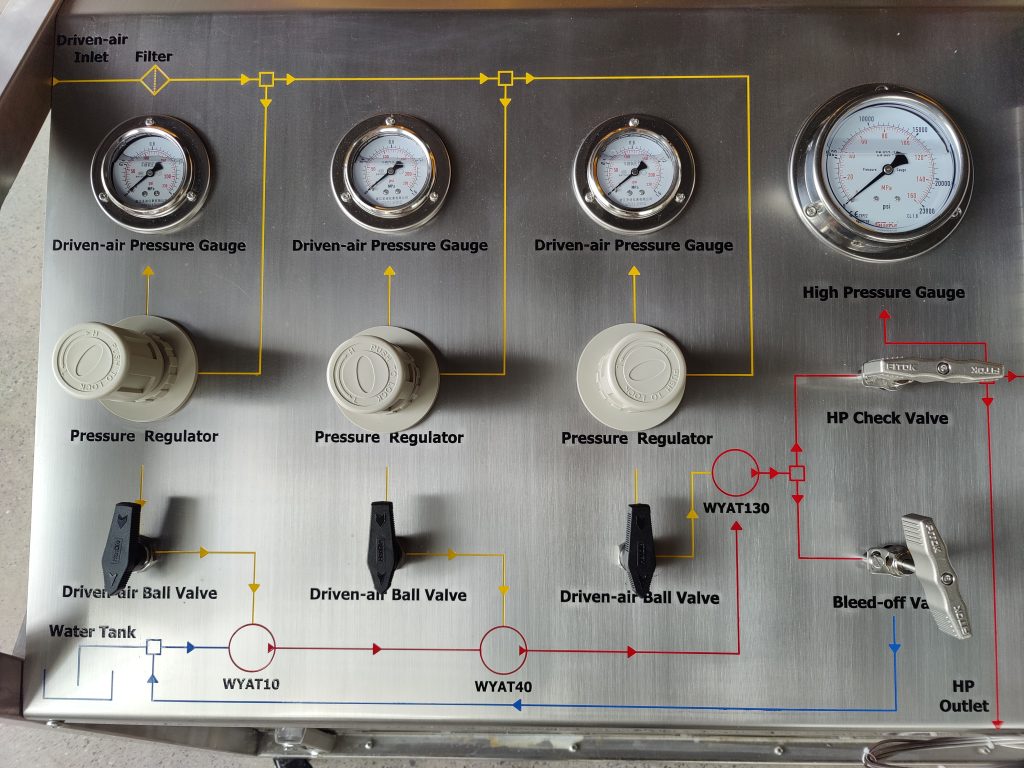

Portable Hydro Test Pump Unit with Chart Recorder - Panel

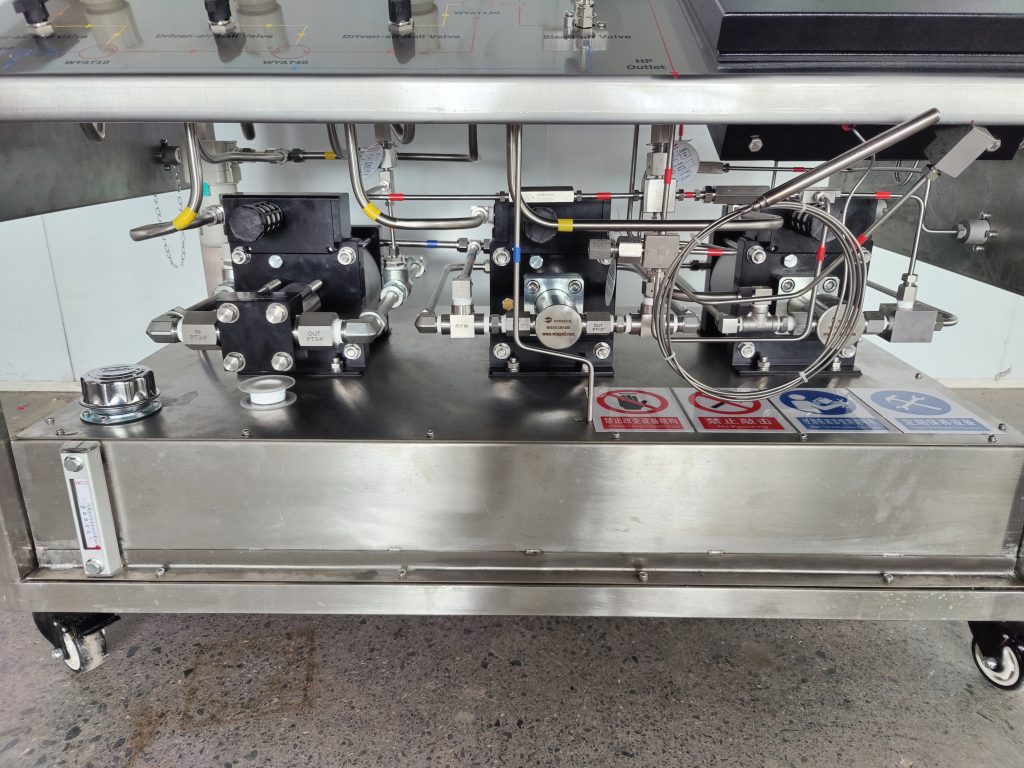

Portable Hydro Test Pump Unit with Chart Recorder - Front View
