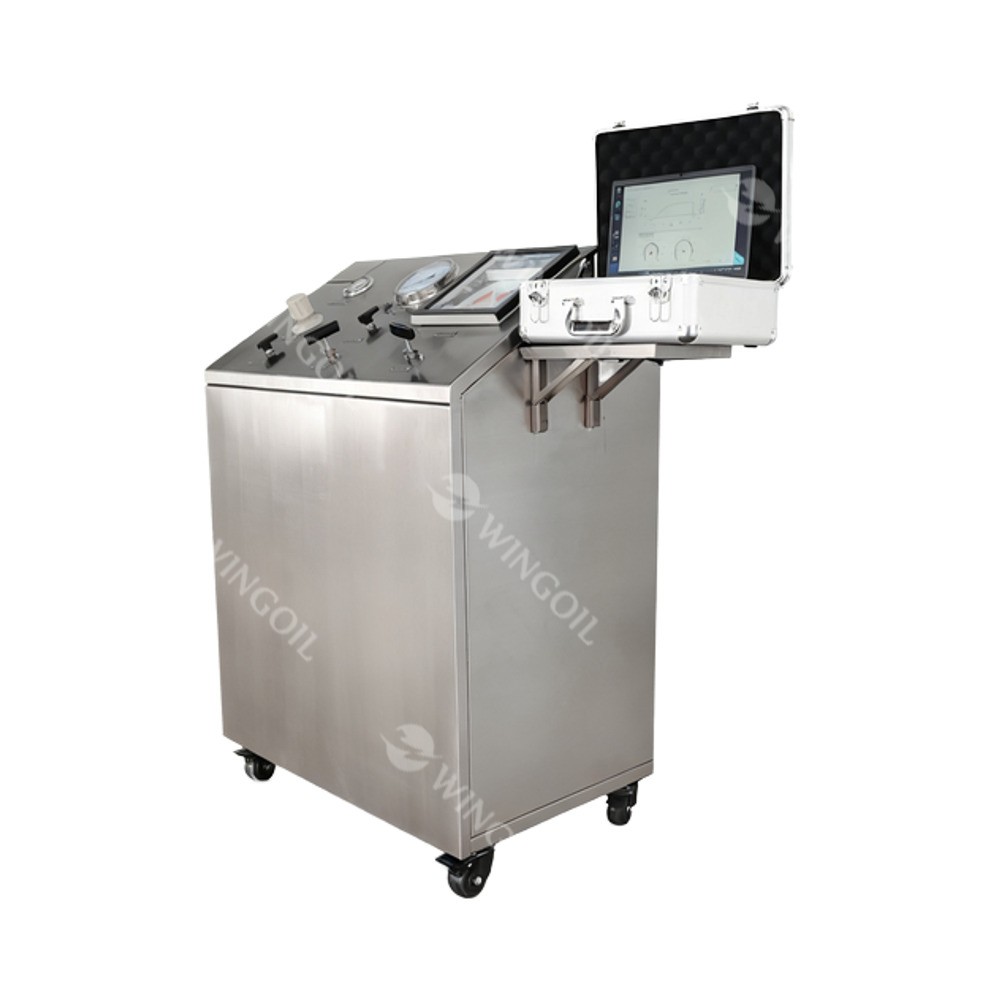

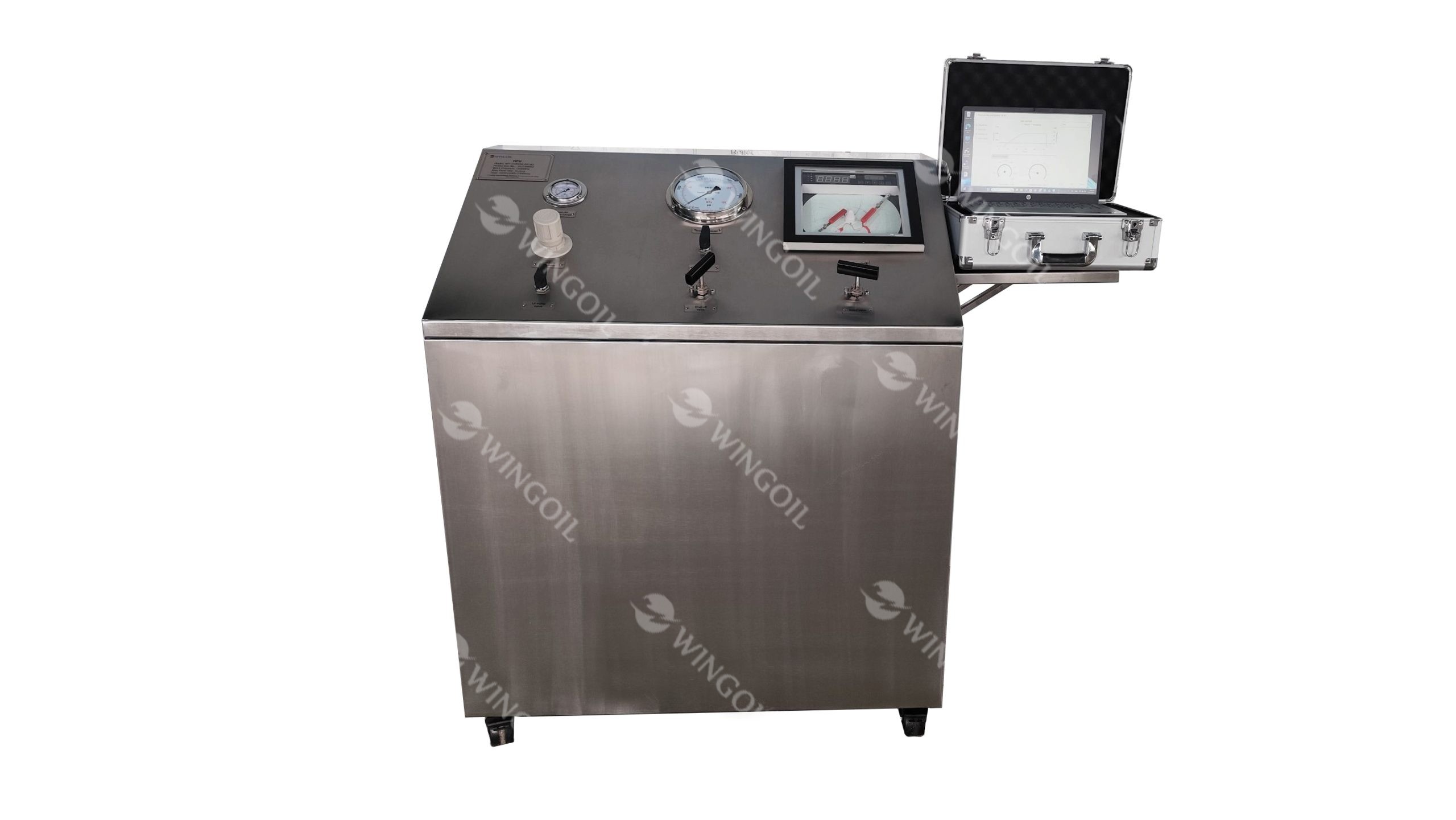

316SS HPU with Chart Recorder and Data Acquisition System
- Model: WY-15000W-GJ1＆2
- It is a specialized setup designed for precise monitoring and control of hydraulic systems. Its 316SS robust structure, combined with advanced data collection and analysis capabilities, positions this system as a valuable machine for any operation seeking to enhance efficiency, reduce maintenance costs, and ensure compliance with stringent regulatory and quality standards.
Share to
Overview
This 316SS HPU with Chart Recorder and Data Acquisition System consists of booster pump, chart recorder, data acquisition system, driven-air adjusting valve, air filter, pressure gauge, LP valve, HP needle valve, etc.
The 316SS indicates that the unit is made from 316 stainless steel, offering excellent corrosion resistance and durability. The chart recorder provides a visual record of pressure or other parameters over time, while the data acquisition system (DAQ) collects, processes, and stores data electronically for analysis and reporting. This combination ensures reliable real-time monitoring and detailed data logging for system performance, troubleshooting, and quality control.
Model: WY-15000W-GJ1＆2
with Chart Recorder and Data Acquisition System
- Use low pressure compressed air as driven power for convenience and safety.
- With the function of pressure self-locked to adjust output pressure, which keeps constant in case of overshoot under air-driven pressure setting constant.
- Pressure is displayed by double-scale vibration proof pressure gauge.
- Strong anti-corrosion, all wet components are made of stainless steel.
- With centralized control panel, which is easy to observe and operate.
Model: WY-15000W-GJ1＆2
with Chart Recorder and Data Acquisition System
| Test medium | Clean water |
| Working pressure 1 | 5000psi |
| Working pressure 2 | 15000psi |
| Max. flow rate | 5L/min@outlet pressure=0psi |
| Water Tank | 20L |
| Power supply | 220V 50Hz |
| Dimensions | 1030L * 640W * 1300H (mm) |
————————————————————————————————————————————————————————————————————————————————————————————————————————————————————
