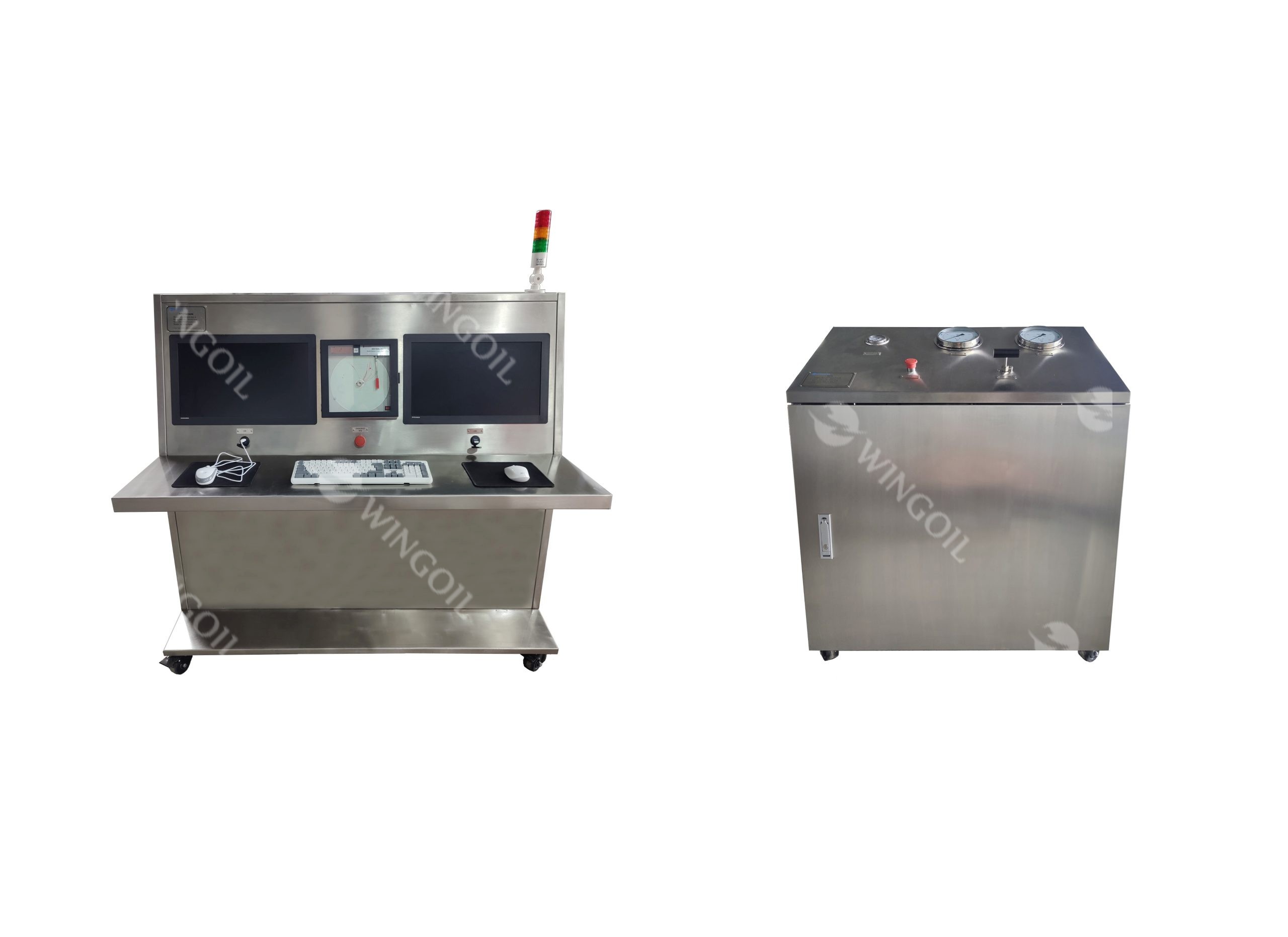

316SS Pressure Testing Equipment

  • Model: WY-15000W-BJ2
  • The HPU Console has auto operation and data recording functions, and can achieve the purpose of pressure testing through auto boosting.
  • The HPU is used to boost and maintain the pressure of the test workpiece.

Share to

Overview

This 316SS Pressure Testing Equipment (WY-15000W-BJ2-A and WY-15000W-BJ2-B) is used to test various pressurized device, including downhole tools, wellhead manifolds, BOP, various valves, etc. to ensure that on-site operations meet requirements and ensure safety.

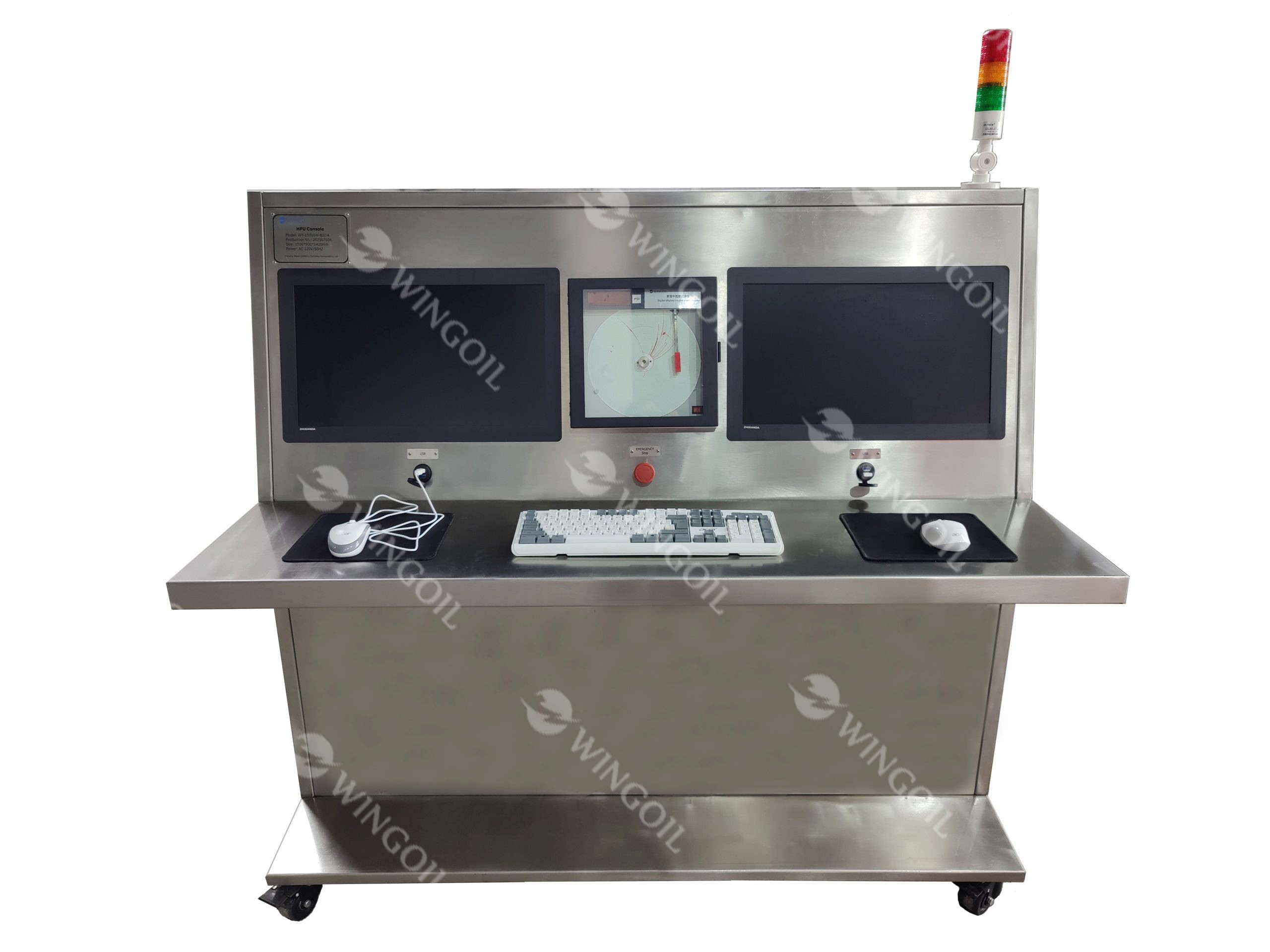

HPU Console

  • With auto operation panel and data recording module: Used to automatically control water pressure boosting and record data of pressure boosting and pressure maintenance in real time.
  • Remote monitoring module: Used to observe the situation in the pressure test area in real time.
  • Mechanical data display module: Use digital display circular chart recorder to display pressure data in real time.

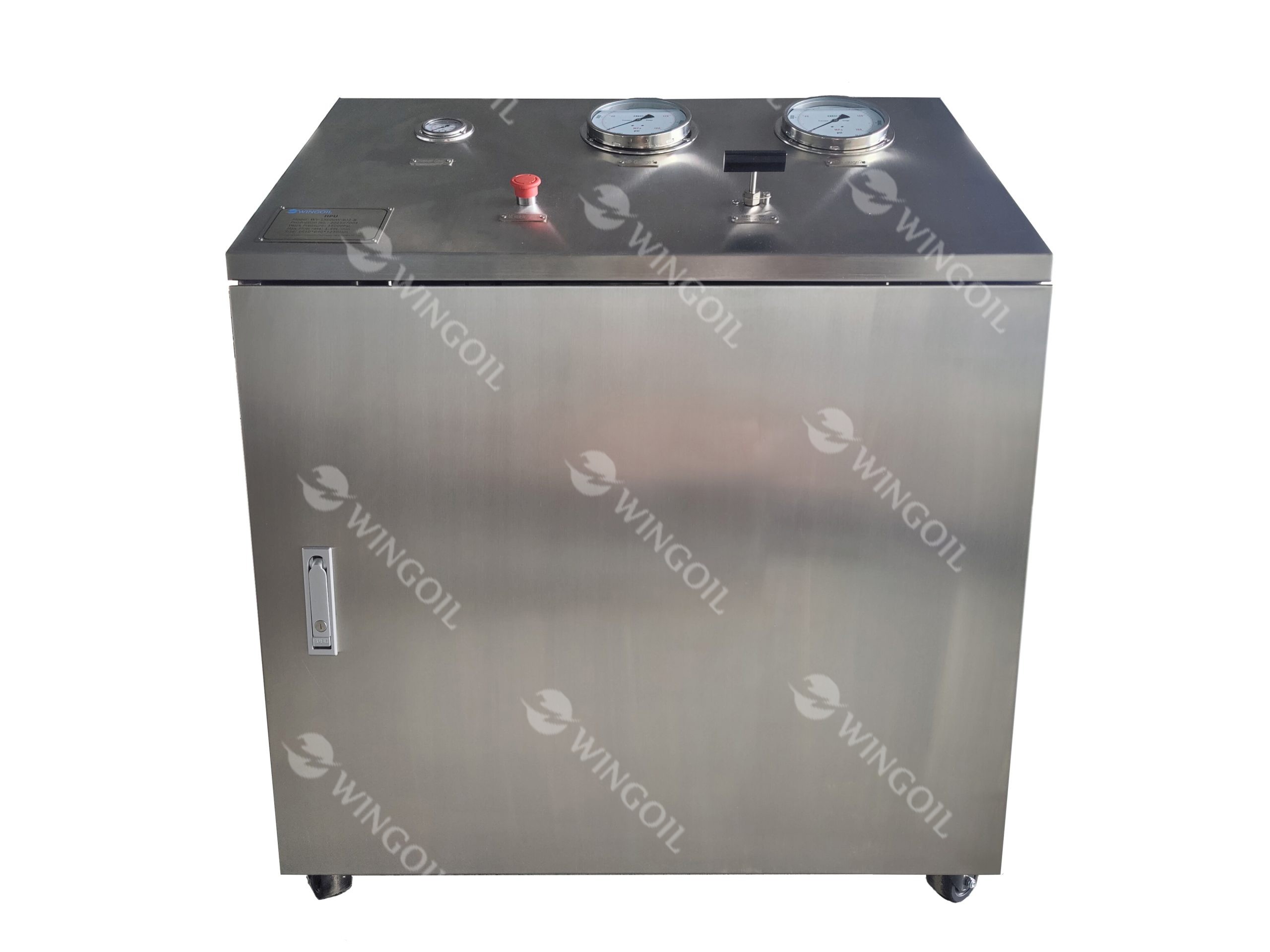

HPU

  • Used to boost and maintain the pressure of the test workpiece.

Model: WY-15000W-BJ2

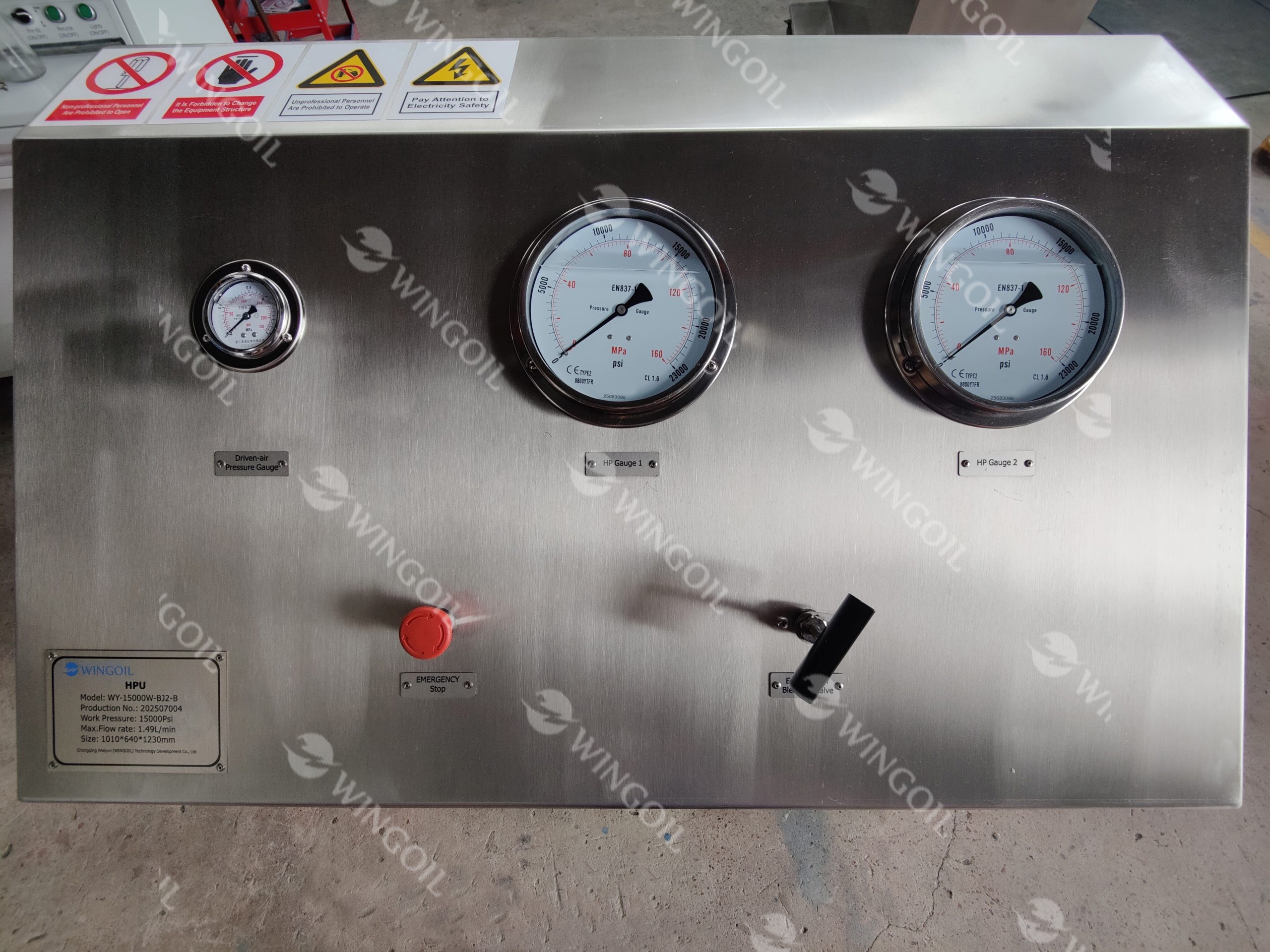

316SS Pressure Testing Equipment HPU Panel

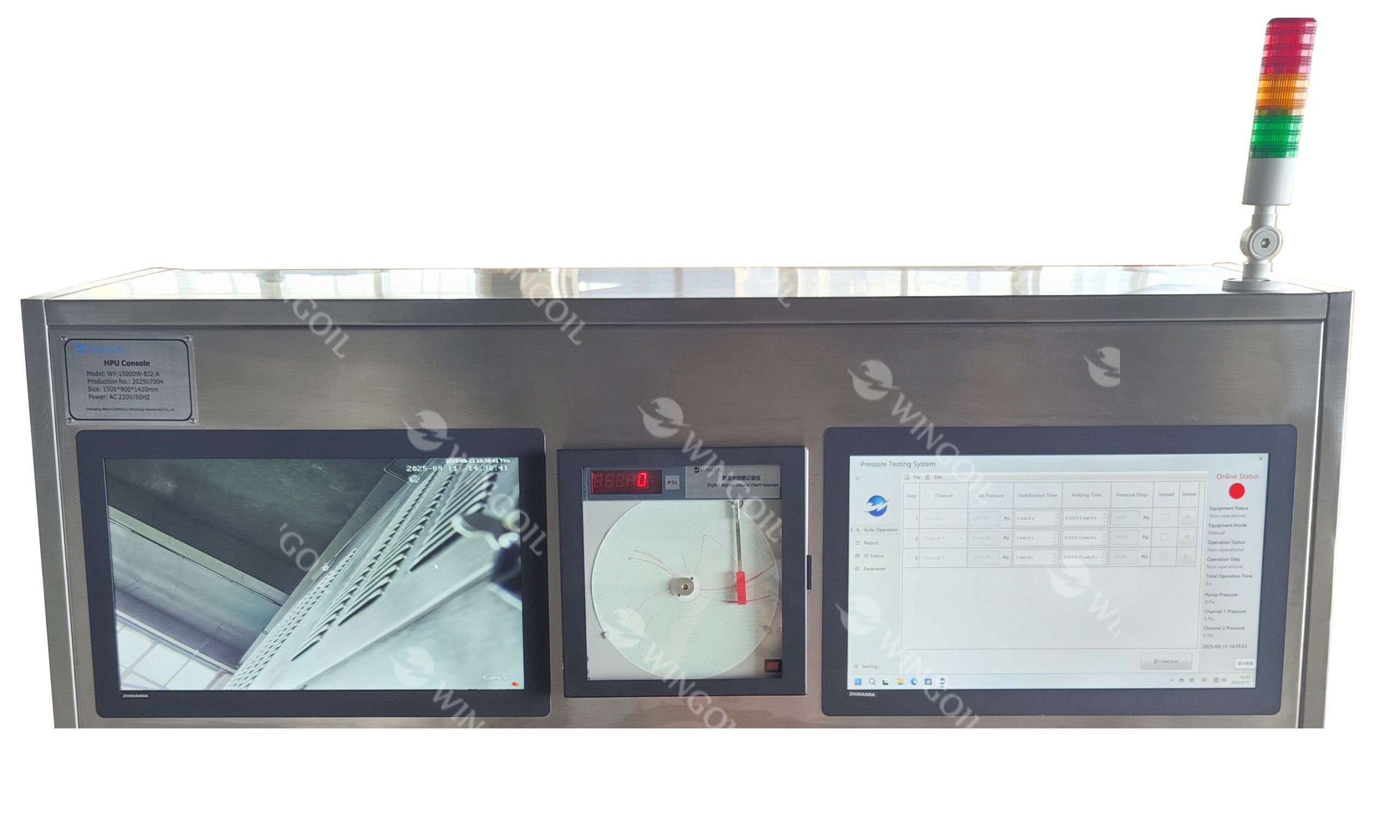

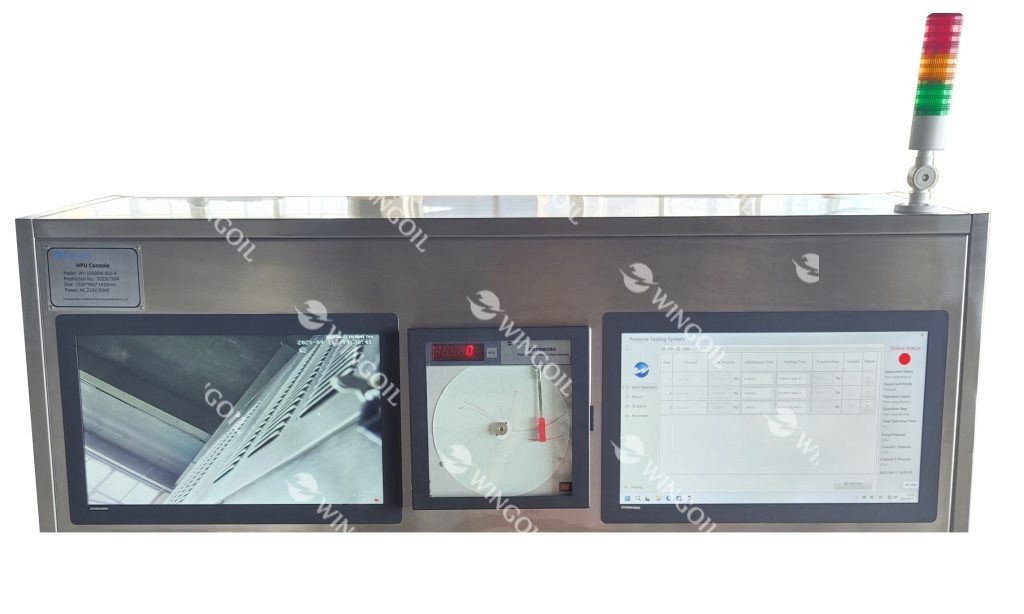

316SS Pressure Testing Equipment HPU Console Display

Model: WY-15000W-BJ2

Test mediumClean water, compressed air
Rated outlet pressure15000Psi
Max. outlet flow rate1.49 L/Min
Power supply220AC 50Hz
Ambient air temperature0 to 40℃
Dimensions of HPU Console1500L * 900W * 1420H​​ (mm)
Dimensions of HPU1010L * 640W * 1230H (mm)

————————————————————————————————————————————————————————————————————————————————————————————————————————————————————
