A Second Order of 375bar Vertical Valve Test Bench Exported to Russia

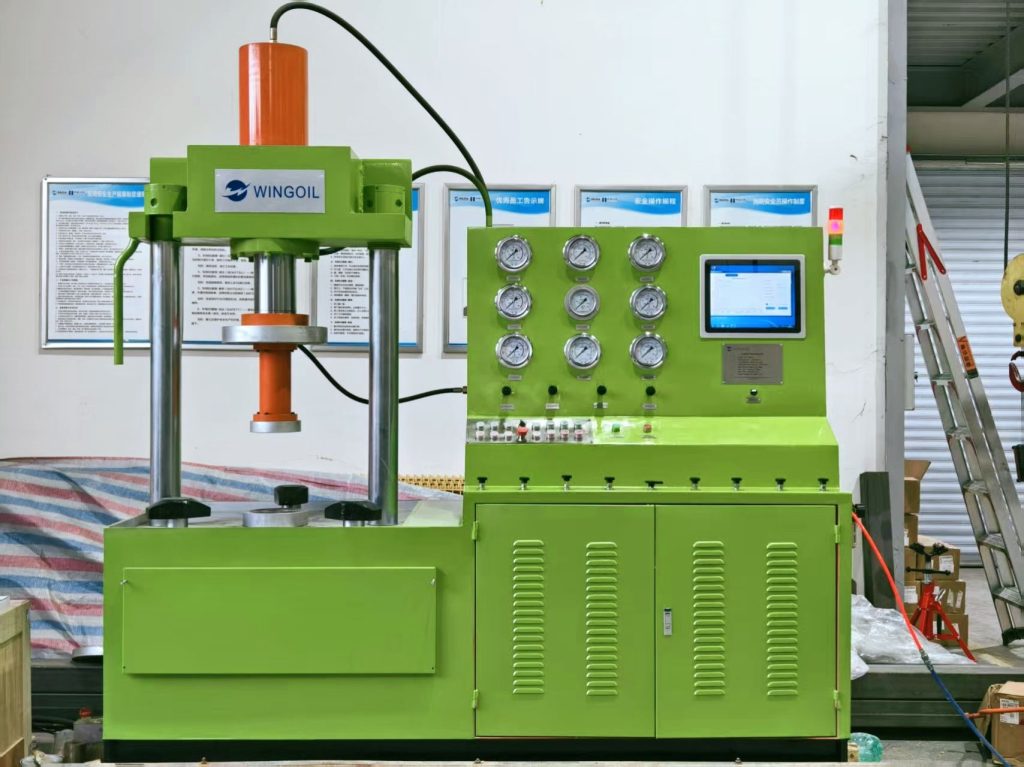

The Vertical Valve Test Bench is a high-performance solution to test the strength and sealing of valves for Russian market, integrating valve fixture, operational platform and pressurization system, etc with functions of pressure test recording, monitoring, and PLC data logging. It delivers reliable, accurate results for industrial valve testing.
Parameters
- Test medium: Corrosion-resistant water, air
- Applicable valves: DN15-DN300 flange/threaded valves, safety valves
- Max. test pressure: 375 bar
- Power supply: 380V/50Hz, 3KW
- Dimensions: 2050*1100*1850 mm
- Weight: 2800KG
Advantages
- It complies with GB/T13927-2008, ISO5208, and API1598 standards.
- The Valve Test Unit has stable clamping, precise pressure control, and user-friendly operation, offering efficiency, adaptability, and cost-effectiveness, which is ideal for valve manufacturing, maintenance, and inspection in Russian industries.
- High Performance: Max. test pressure 37.5MPa, 100-ton clamping force, Class 1.5 precision gauges for accurate results.
- Auto & Easy Operation: Manual/automatic modes, PLC data recording, vertical design (space-saving, easy loading).
- Safe & Reliable: Emergency stop, overpressure protection, durable hydraulic system with anti-rust medium.
- Low Maintenance: Clear service cycles, universal wear parts, stable high-strength structure.
This vertical valve test machine is a repeat order from our Russian customer. The trustworthy valve test bench is able to meet their ongoing operational needs — testament to their satisfaction with the performance of 1st set of valve tester.
