Auto HP Testing System with Explosion-proof Pressure Test Chamber
- Model: WY-105W/N-J2
- This Auto HP Testing System is primarily designed for safety testing of various aviation sealing rings, including one remote control console, one Explosion-proof Pressure Test Chamber, one manual control console.
- The Explosion-proof Pressure Test Chamber features a wall thickness of 62mm, which can conduct pneumatic and hydraulic pressure tests on various small workpieces.
Share to
Overview
This Auto HP Testing System with Explosion-proof Pressure Test Chamber is designed to test and evaluate various types of pressurized equipment, including valves, sealing rings, and pipeline systems. It conducts pressure tests to ensure that on-site operations meet requirements and guarantee operational safety.

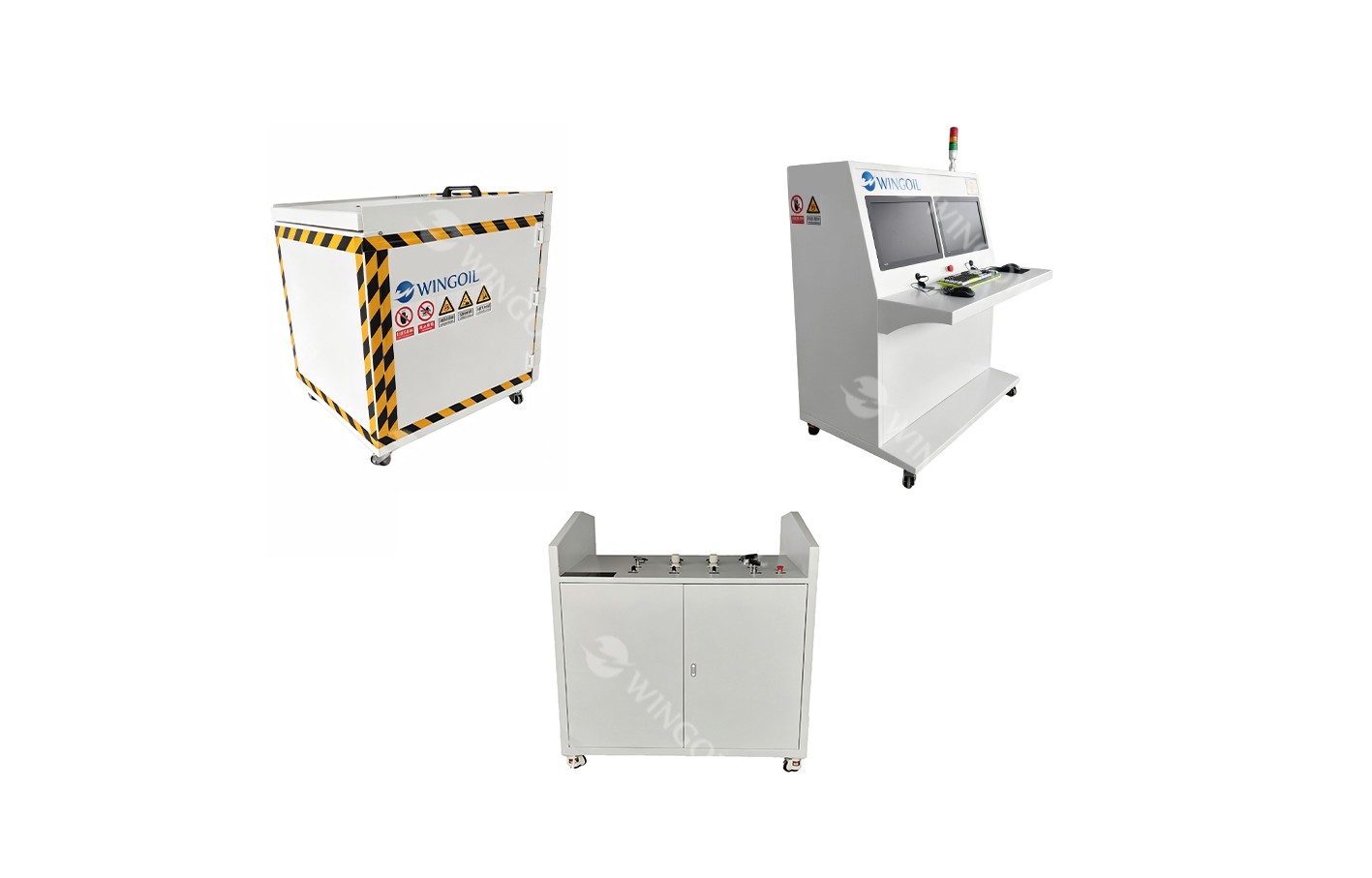

This system primarily consists of three functional modules:

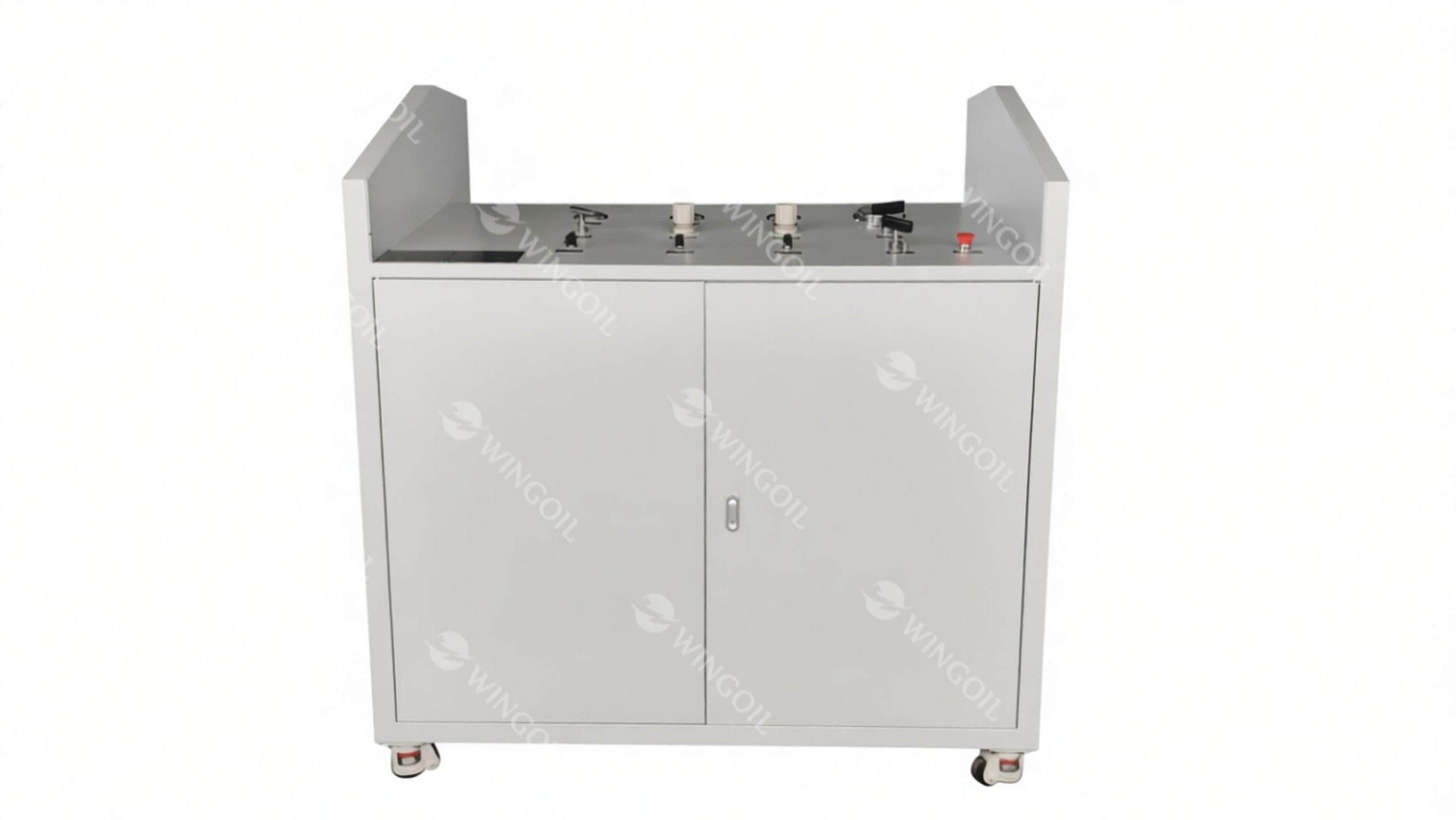

(1) Manual control console: Used to manually control water/gas boosting.

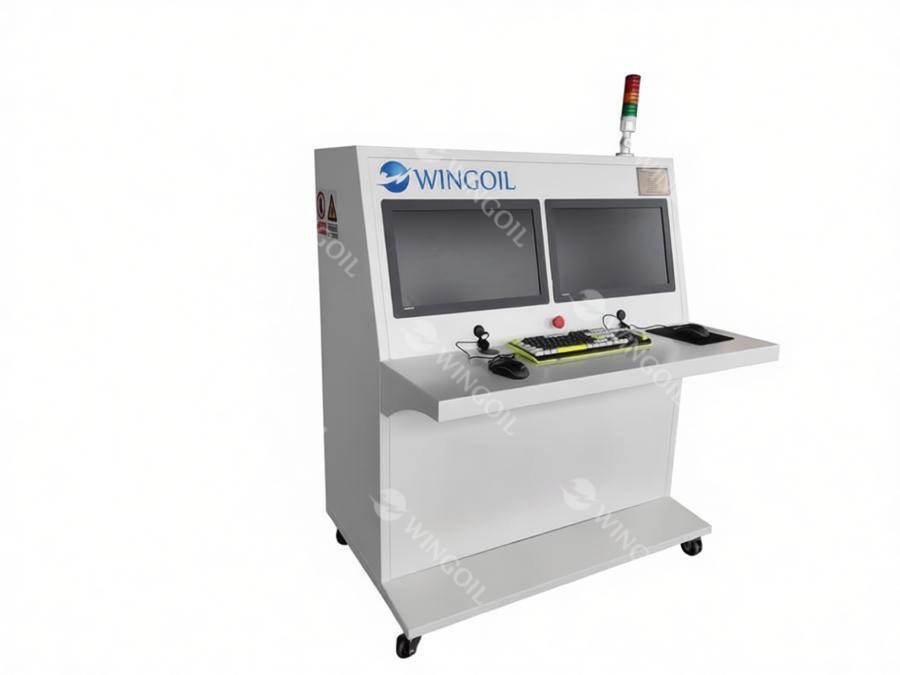

(2) Remote control console: Used to record real-time data on boosting and pressure-holding conditions.

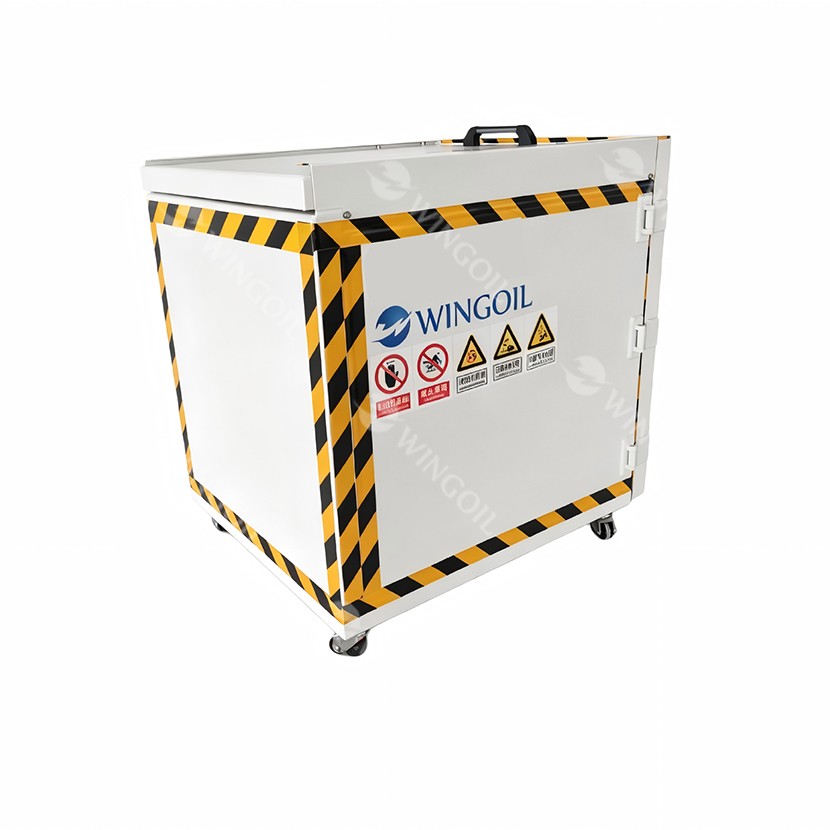

(3) Explosion-proof Pressure Test Chamber: Used to provide safety protection during pressure testing.
Model: WY-105W/N-J2
- Separate structure with sufficient safety distance.
- Using air-driven pumps to prevent overpressure and maintain pressure without additional energy consumption.
- Equipped with Explosion-proof Pressure Test Chamber to ensure operational safety.
- All wetted pipelines are made of stainless steel for corrosion resistance and extended service life.
- With multiple safety measures including remote auto control and remote video surveillance.
Model: WY-105W/N-J2
| Configuration | Remote control console, Explosion-proof Pressure Test Chamber, Manual control console |
| Test medium | Nitrogen, Helium, Air, Water, Hydraulic Oil |
| Max. Working Pressure | 105Mpa / 15000psi |
| Explosion-proof Pressure Test Chamber Wall Thickness | 62mm |
| Internal Dimensions of Explosion-proof Pressure Test Chamber | 900L * 5000W * 900H mm |
| Monitor Dimensions | 21 inches |
| Driving air | 1-7bar / 14.5-101.5 psi |
————————————————————————————————————————————————————————————————————————————————————————————————————————————————————
