Carbon Steel Pressure Testing Equipment
- Model: WY-15000-G

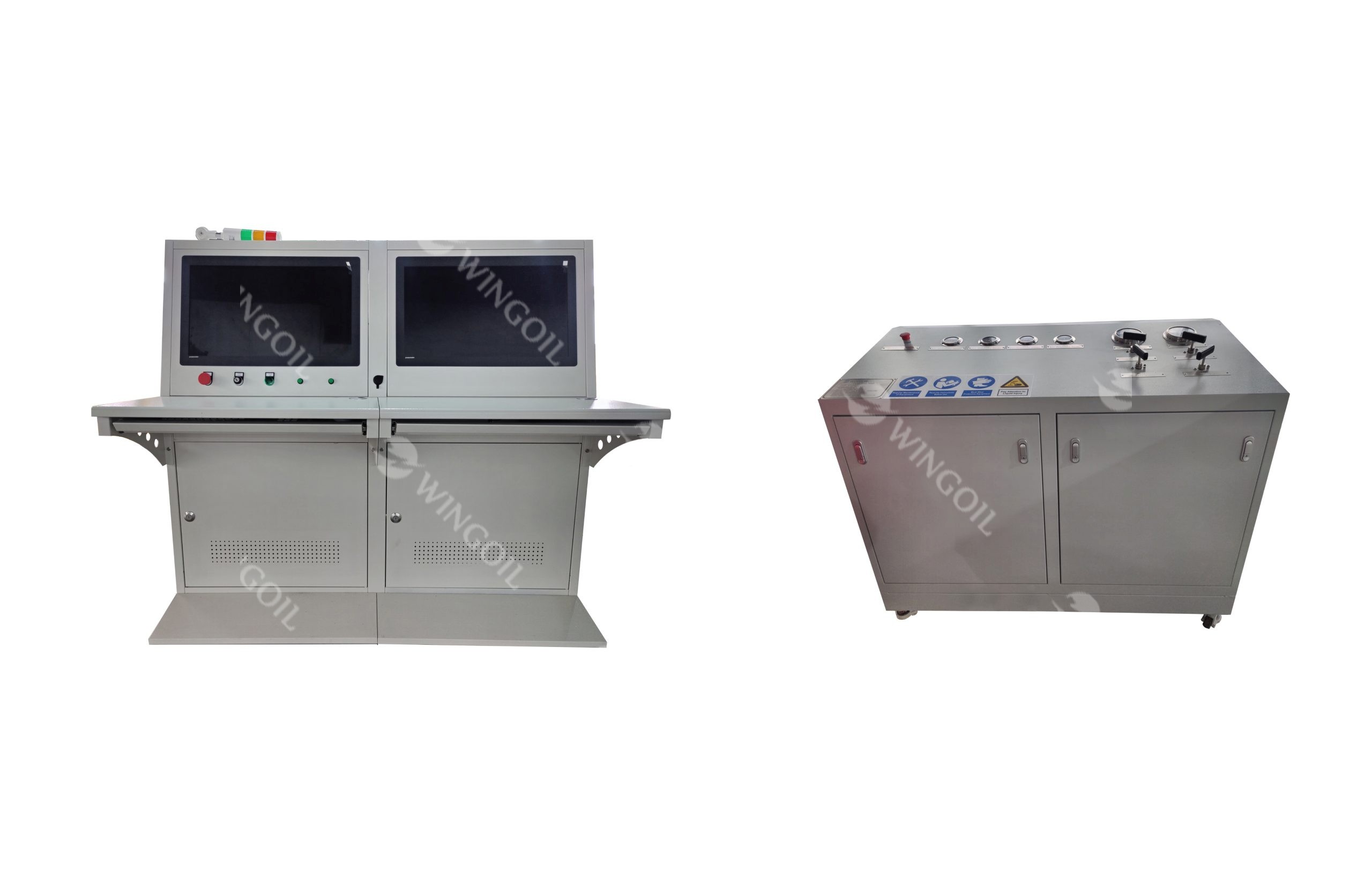

- Manual operation panel: used to manually control the pressure boosting and pressure test process of equipment.
- Automatic control panel: used for intelligent and automated testing processes.
- Accessories: mainly including access control system, monitoring system and mechanical recorder.
Share to
Overview

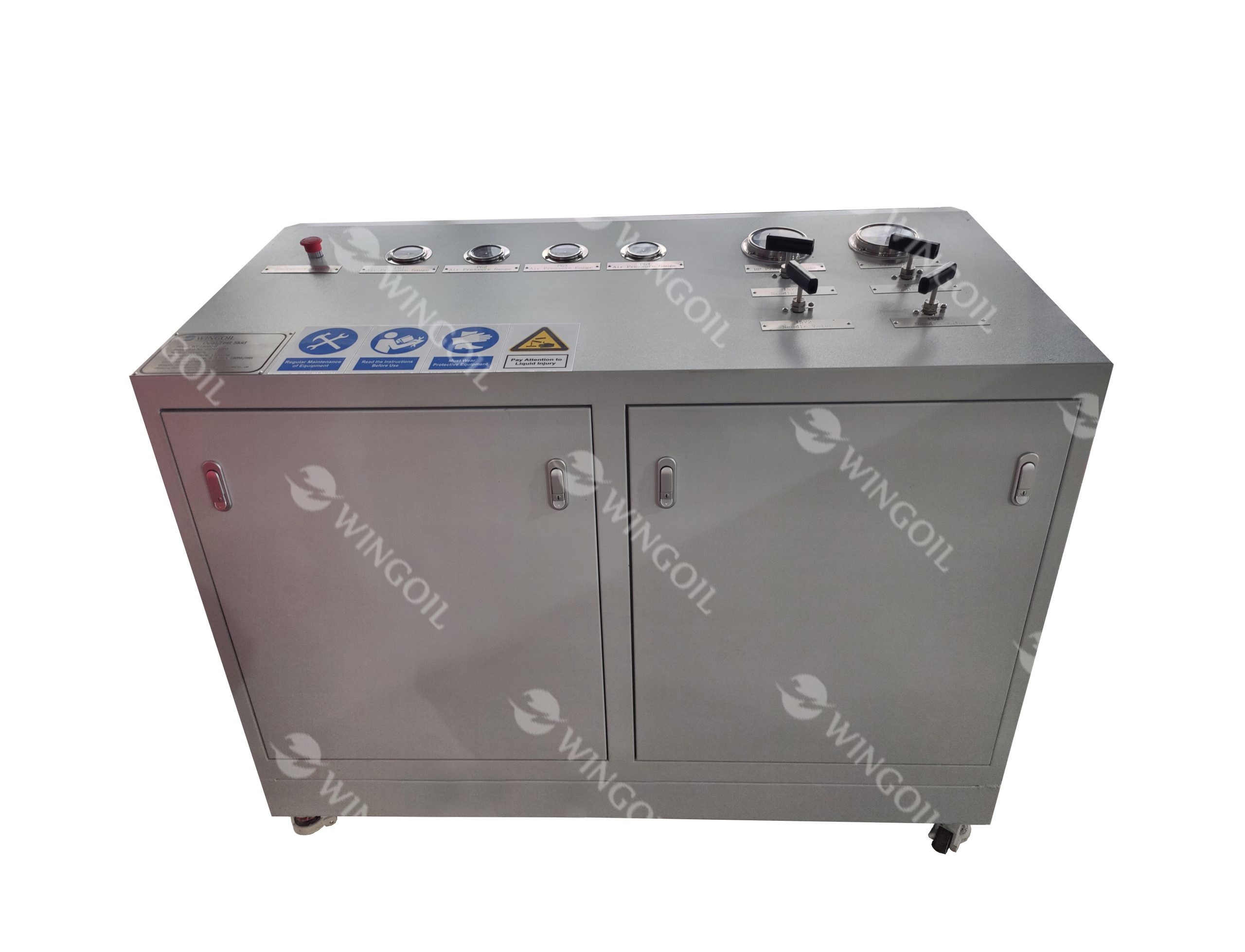

The Dual Test Skid is a sloping workbench that mimics human aesthetics. It is equipped with booster pumps, valves and others inside, and casters are installed at the bottom for easy transportation. The mechanical pressure gauges are installed on the panel to display the working pressure of various tests. And the manual pressure relief valves for emergency use are also installed on the panel.

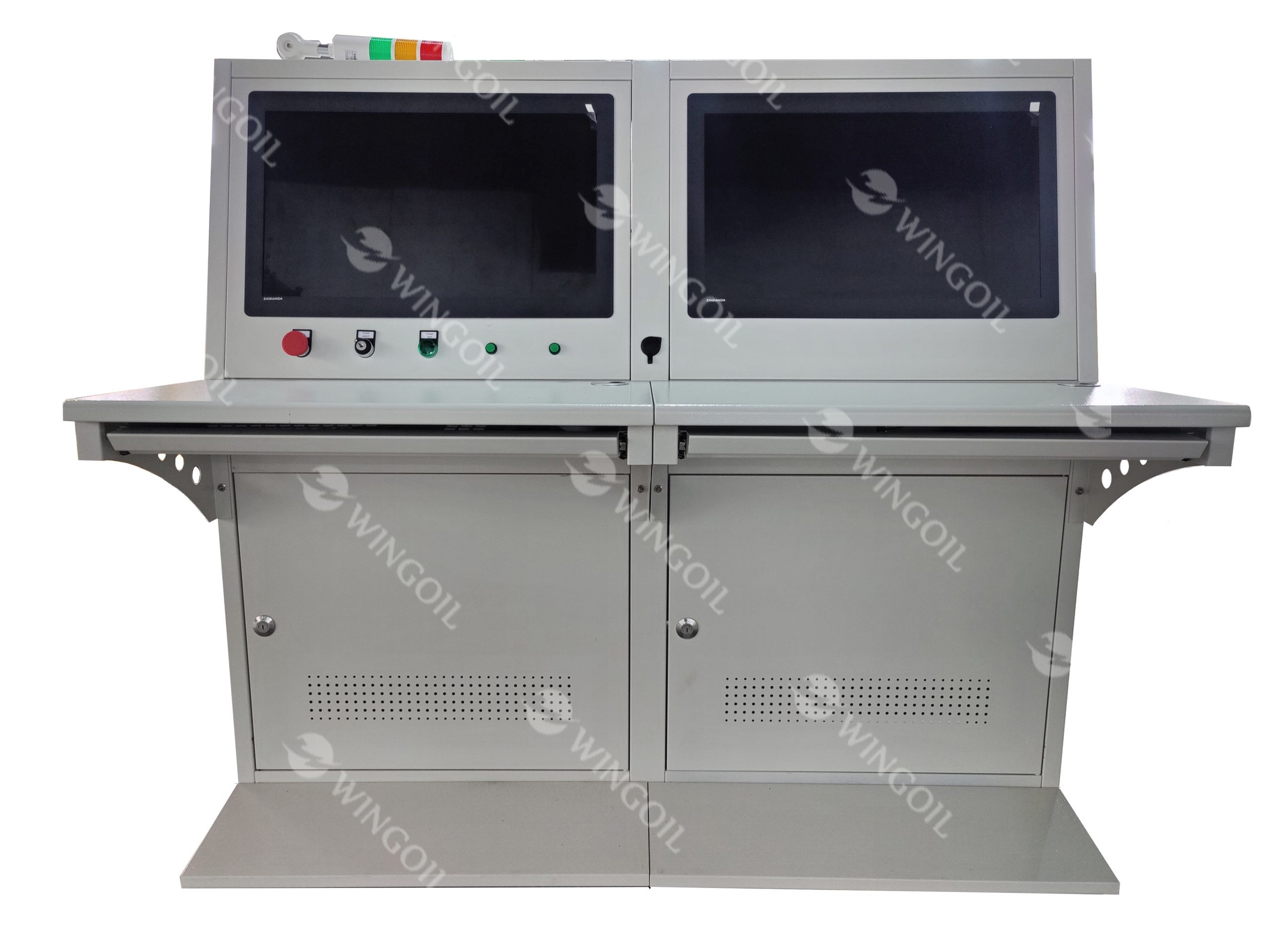

The Pressure Monitoring Device is an inclined table imitating human aesthetics, and various automatic components are installed inside. The right side is mainly the monitoring system operation area, which can transmit, display and store multi-channel video monitoring. The left side is mainly the intelligent pressure test operation area. Through man-machine interaction or button operation, the pressure test operation in different media, different pressures and different stages can be realized; The selection button and emergency stop switch are arranged on the left side, which is convenient for operators to operate.
Model: WY-15000-G
| Test medium | Clean water, Nitrogen |
| Working pressure | 15000Psi |
| Flow rate of liquid medium | 4.7L/min |
| Flow rate of gas medium | 180NL/min@pi=5800psi |
| Ambient air temperature | 0 to 40℃ |
| Power supply | 220AC 50Hz |
| Dimensions of Dual Test Skid | 1400L*650W*1150H (mm) |
| Dimensions of Pressure Monitoring Device | 1400L*750W*1250H (mm) |
————————————————————————————————————————————————————————————————————————————————————————————————————————————————————
