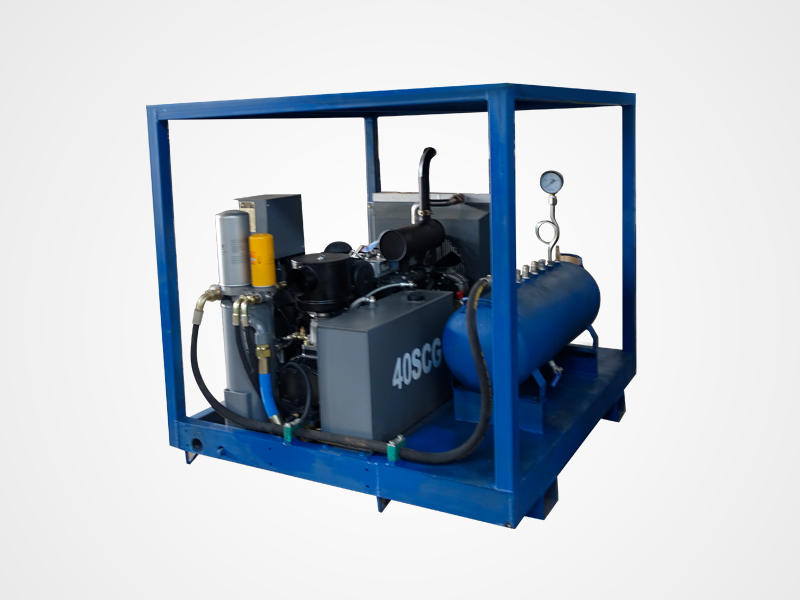

Diesel Engined Air Compressor Pipe Pressure Testing Equipment

Model: WY-10AIR-CY

Share to

Product Overview

Diesel power skid integrates a diesel engine, a screw air compressor, a gas storage tank, and a gas source treatment device, which can provide high-quality compressed air for applications where power cannot be supplied.

Product Features

Diesel Engined Air Compressor Pipe Pressure Testing Equipment

●  A closed-loop output system, automatically discharging the pressure and saving energy.

●  Multi-outlet output, suitable for multiple workpieces.

●  Portable structure, easy transportation and hoisting.

●  Stable output flow.

Models and Technical Parameters

Model

WY-10AIR-CY-42SCY/42SCG

WY-10AIR-CY-50SCY/50SCG

Nominal volume flow

m3/min(CFM)

4

5

Rated exhaust pressure

ar(psi)

7

7

Working pressure range

ar(psi)

5-7

5-7

Maximum working angle

Noise power level

100dB (1 meter from the surface, corresponding to a sound pressure level of 76 dB from the surface of 7 meters)

L*W*H(mm)

1700 × 1440 × 1500

2400 × 2200 × 2300

Theoretical weight

1000kg

1500kg

Tank working pressure

10BAR

Tank volume

300L

Rated power

42

92

Fuel tank capacity

75L

Electrical system operating voltage

12V

Battery rated capacity

105Ah/ea

General Layout Drawing

Diesel Engined Air Compressor Pipe Pressure Testing Equipment
