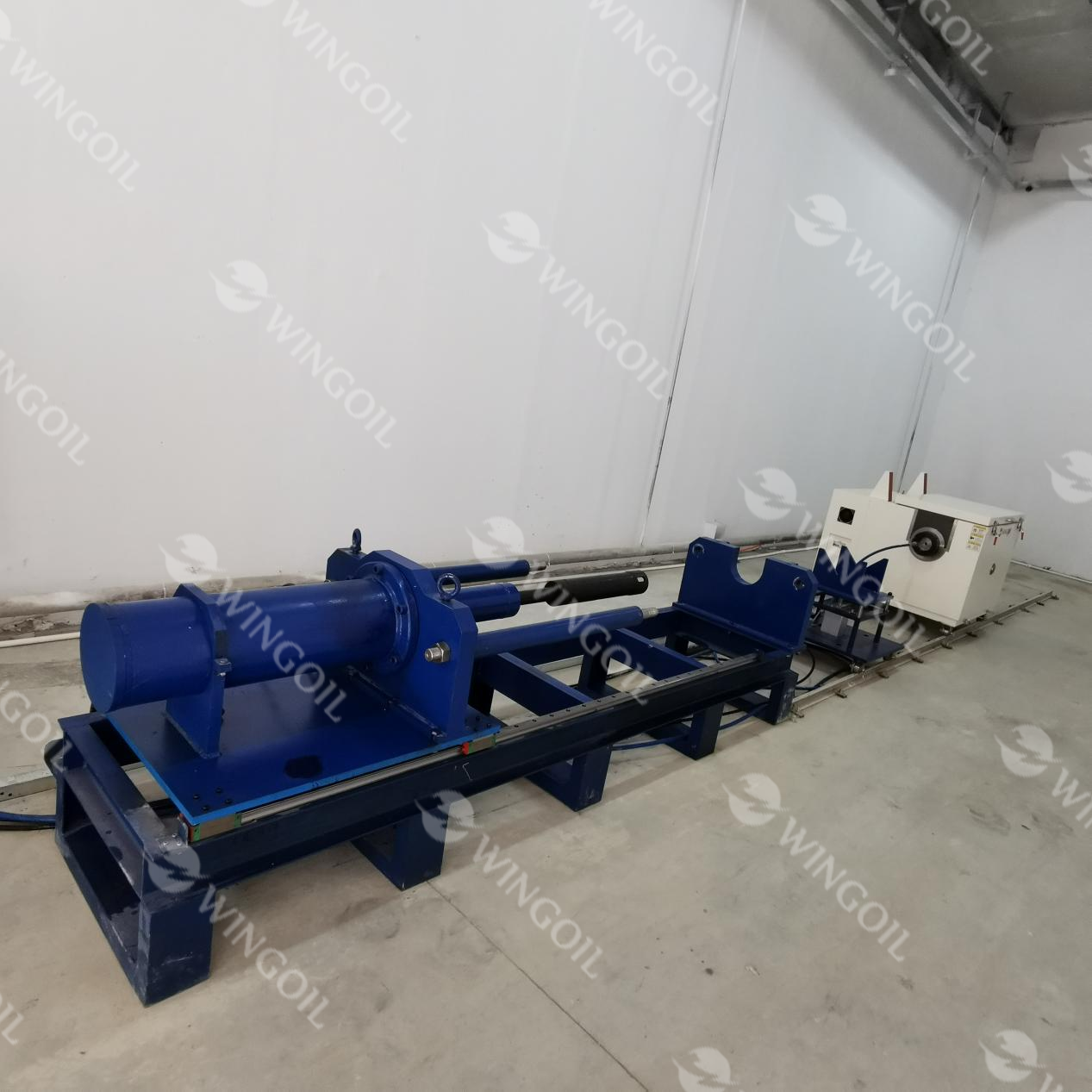

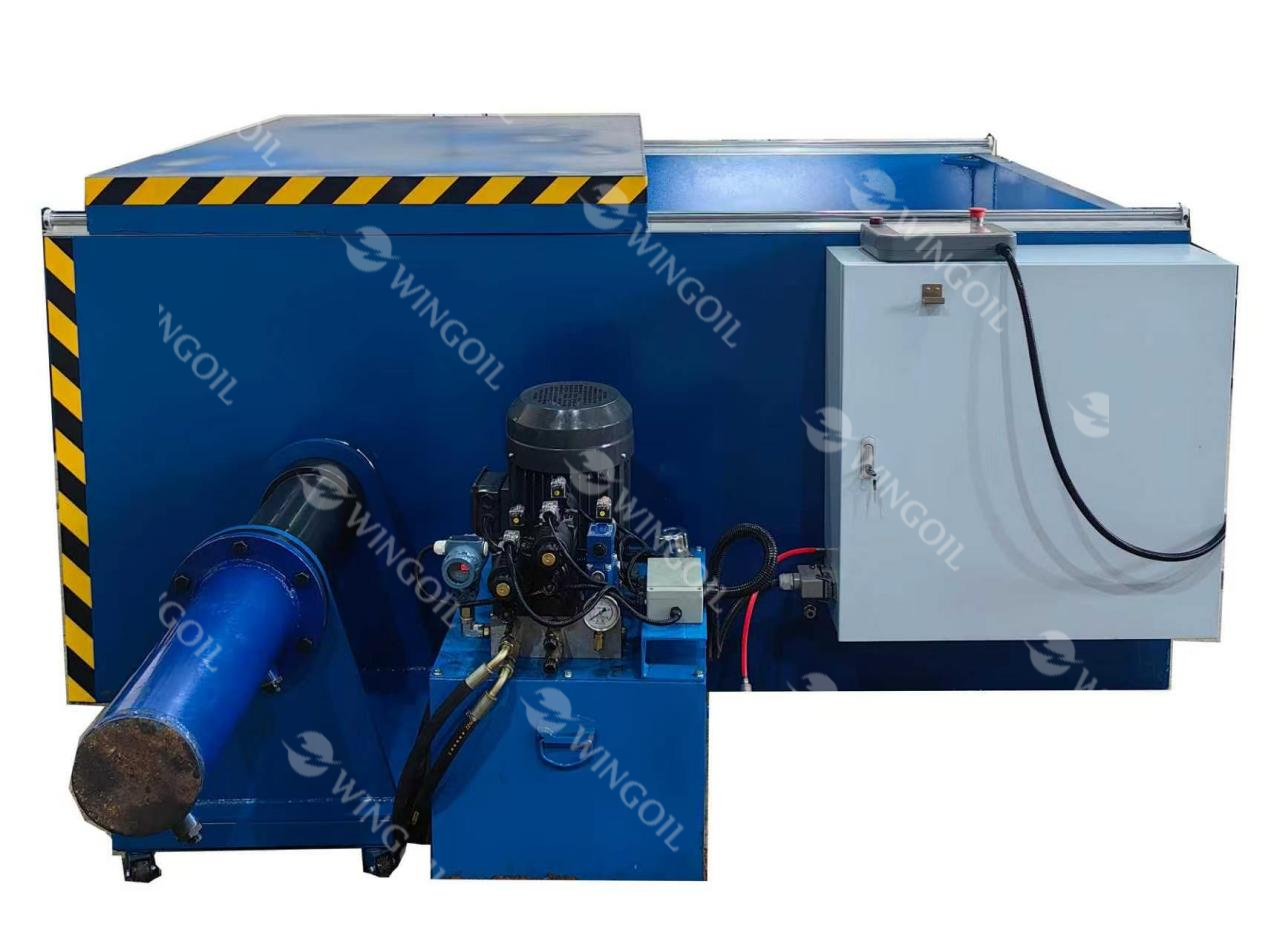

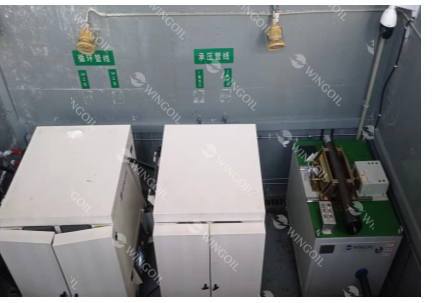

Dissolvable Frac Plug Process Evaluation Test System
- It’s designed to assess the performance, reliability, and dissolution behavior of downhole plugs used in oil and gas well completion and stimulation operations.
- The system provides a controlled laboratory environment for evaluating plug installation, pressure-holding capability, material degradation, and complete removal without mechanical intervention.
Share to
Overview
It is applicable to the setting, sealing verification, high-temperature and high-pressure test processes for products such as various types of frac plugs and setting tools.
Feature

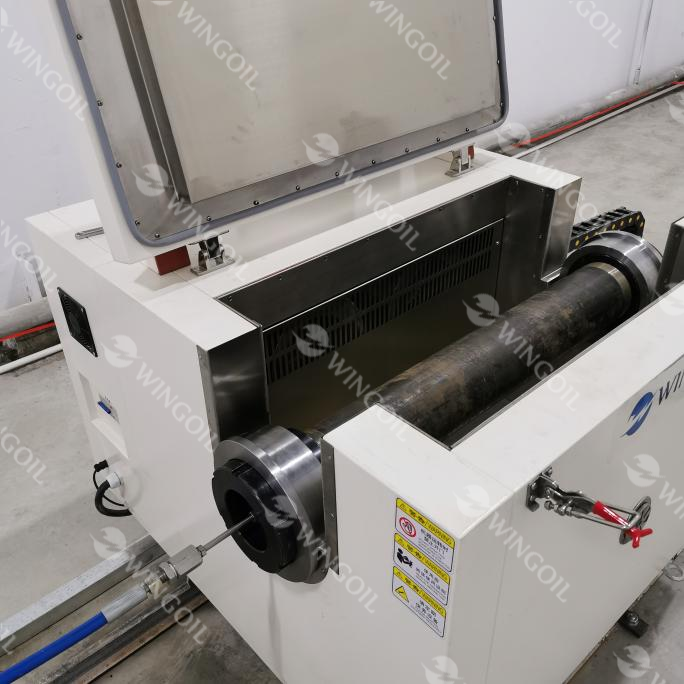

- Combined with high-strength steel plates and bulletproof thermal insulation materials to meet the protective requirements for high-temperature and high-pressure pressure testing.

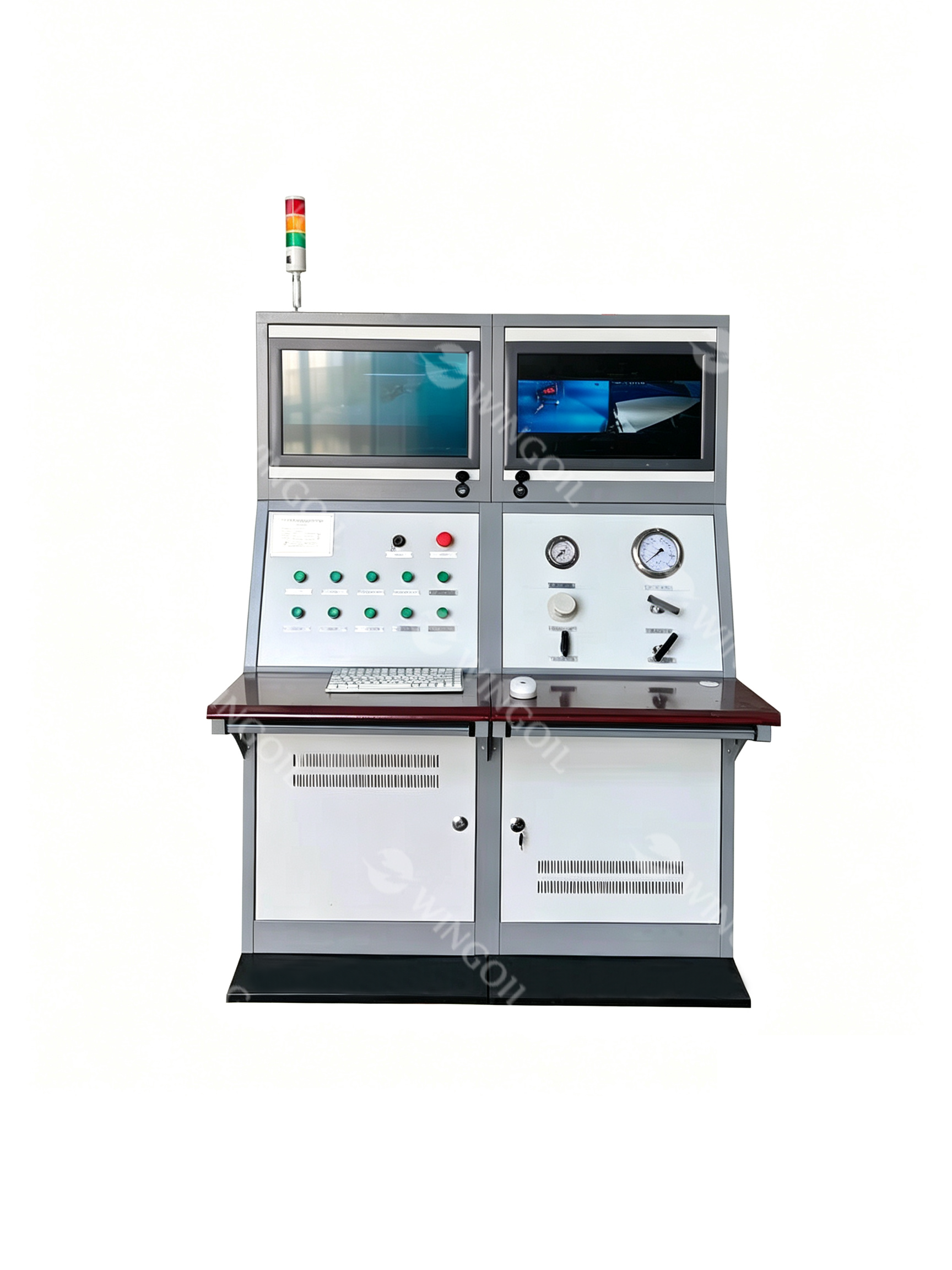

- Capable of observing and recording real-time parameters such as release force, release stroke, time-temperature curve, time-pressure curve.
- Equipped with pan-tilt fixed and mobile cameras to carry out all-round monitoring on the test workpiece.
- Installed with a self-locking switch to prevent dangers caused by personnel or foreign objects near the test door during testing.
- Can complete test processes including setting, high-pressure sealing verification, high-temperature and high-pressure sealing verification, high-temperature dissolution.
Dissolvable Frac Plug Process Evaluation Test System
| Max. Operating pressure | 1500bar |
| Max. heating temperature | 204°C |
| Applicable casing | 177.8mm, 139.7mm, 114.3mm, 127mm |
| Casing length | 1000mm |
| Continuous operating time of the system | 480h |
| Control mode | Automatic or manual |
| Setting force | 25t |
| Setting stroke | 300mm |
| Material of pressure pipeline | Stainless steel |
| Pressure rating of high-pressure pipeline | 250Mpa |
| Power supply | 380AC 50Hz/220AC 50Hz |
————————————————————————————————————————————————————————————————————————————————————————————————————————————————————
