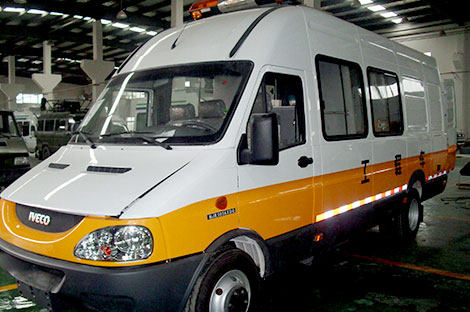

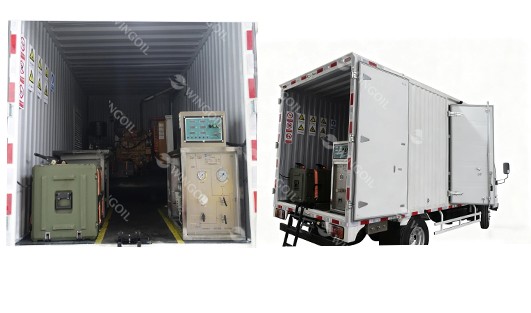

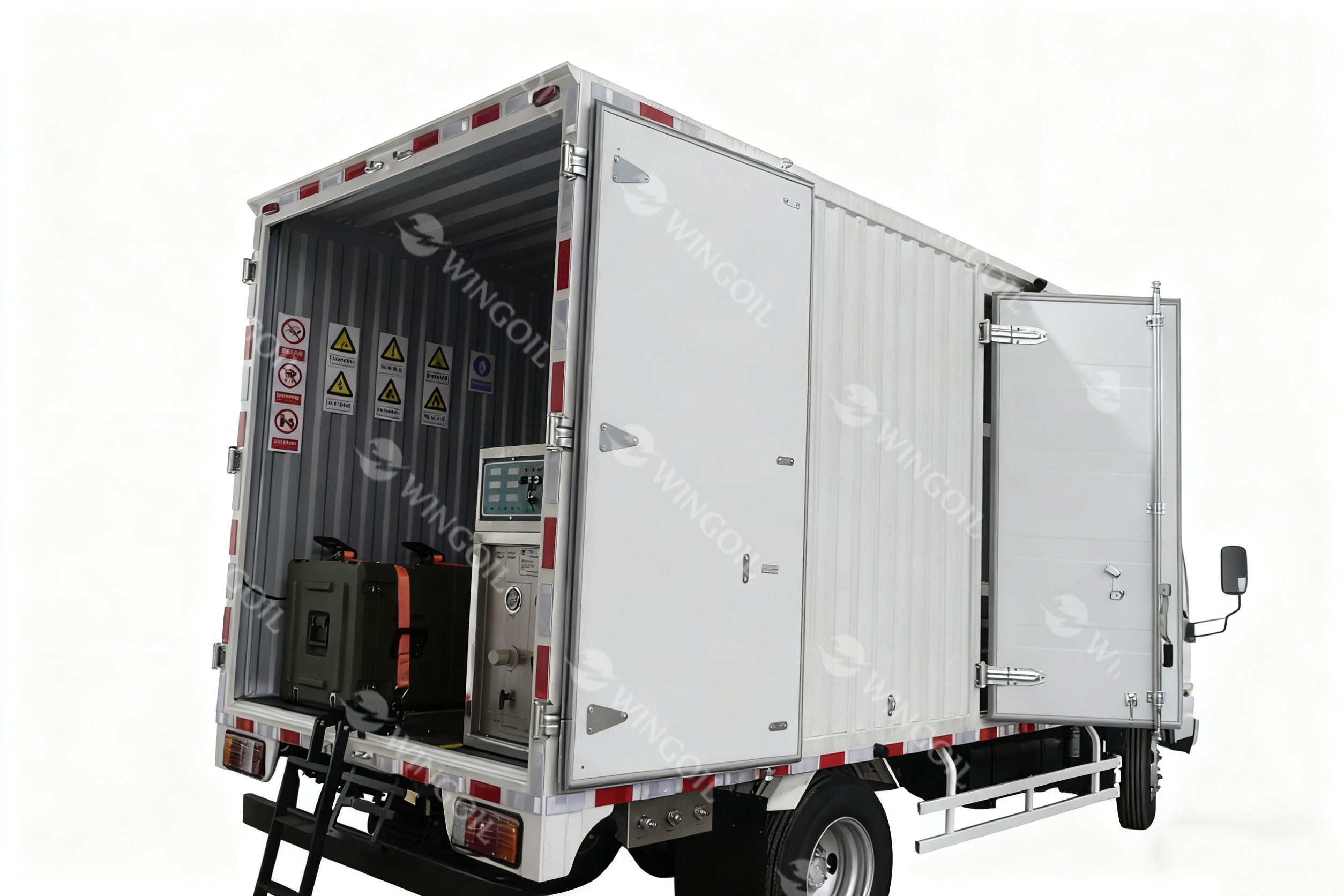

Wellhead pressure test vehicle

WINGOIL wellhead pressure test vehicle meets various field testing needs as a Highly integrated and movable testing system with shock absorption installed on trucks. It can test pressure: 250Mpa(2500bar, 36250psi)

Share to

Characteristics

  • > Highly integrated and movable testing system with shock absorption installed on trucks or other vehicles to meet various field testing needs.
  • > It has remote operation function (pressure imposing, pressure stabilizing, pressure relief, and overpressure protection, etc.) and sound and light alarm system;
  • > Computer automatic control technology as well as pressure test and video monitoring technologies are adopted. Control of pressure test process can be completed automatically according to the program instruction.
  • > Data is collected and recorded simultaneously; pressure test curve is generated and report is printed automatically to realize intelligentsia and digitization of test procedure and data management.
  • > All key materials like pumps, gas boosters, high pressure valves, tubing and fittings are made in Germany (or on client’s request).

Specification

  • > Pressure test medium: clean water, hydraulic oil, anti-freezing liquor, mixed liquor.
  • > Drive air supply: 0.5MPa≤P≤1.0MPa.
  • > Max test pressure: 250Mpa(2500bar, 36250psi)
  • > Max flow: 100LPM(26.39GPM)
  • > Pressure control precision:  1%FS
  • > Driven air pressure: 0.5–1Mpa;
  • > Control mode: manual or automatic
  • > Record method: mechanism or electronic
  • > Power source: motor or diesel
