Hydrostatic Pressure Test Truck Oilfield Pressure Trucks
  • Hydrostatic Pressure Test Truck Oilfield Pressure Trucks

    • Hydrostatic Pressure Test Truck Oilfield Pressure Trucks

    Oilfield Pressure Trucks have a remote operation function and monitoring and a sound and light alarm system. There are functions such as parameter collection and recording of the pressure test process, pressure test data management etc..

    Share to

    Overview

    Hydrostatic Pressure Test Truck Oilfield Pressure Trucks
    • ●  Put pressure test equipment, test fluid, special tools, and engineering personnel in one engineering vehicle, and solve transportation problems.
    • ●  The pressure test device has a remote operation function and monitoring and sound and light alarm system. The monitoring probe can observe the working condition of the high-pressure area of the well site in an all-around way, without personnel entering the dangerous area.
    • ●  There are functions such as parameter collection and recording of the pressure test process, pressure test data management, pressure curve drawing, and automatic generation and printing of pressure test result reports, which can realize intelligent, digital, and fully automated management of pressure test operation.

    Computer Acquisition System And Software

    Computer Acquisition System And Software
    DELL laptop, 1 HP printer

    DELL laptop, 1 HP printer

    ●  A/D capture card selects 32 single-ended, 16-channel double-ended, programmable sampling rate, display resolution: 1028*768.

    • ●  The data acquisition control system can be fully remotely operated and controlled; all test pressure values are used for real-time data acquisition and display of data.
    • ●  The curve can display the pressure test process in real time.
    • ●  The system has various function settings such as overpressure alarm, control, reading, curve and color.
    • ●  The pressure test data is saved by the database, which facilitates querying and repeating printing and displaying the pressure test process.

    Wireless Remote Control And Alarm System

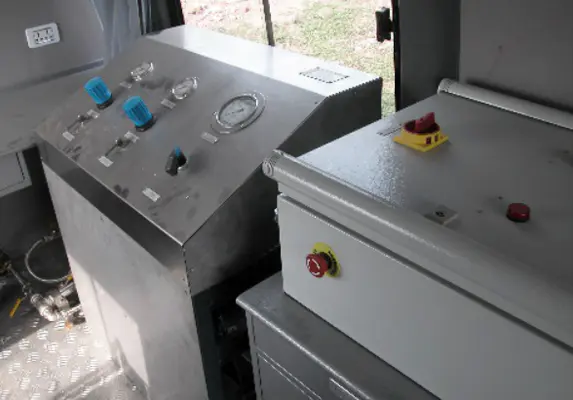

    15658643048582

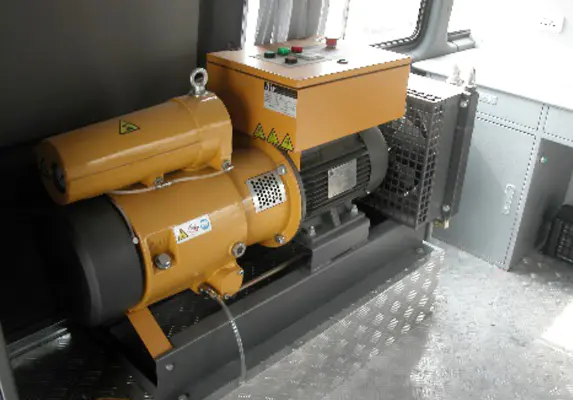

    15658643051975

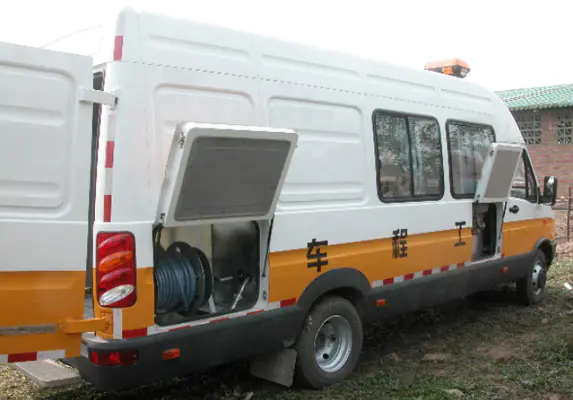

    15658643053377

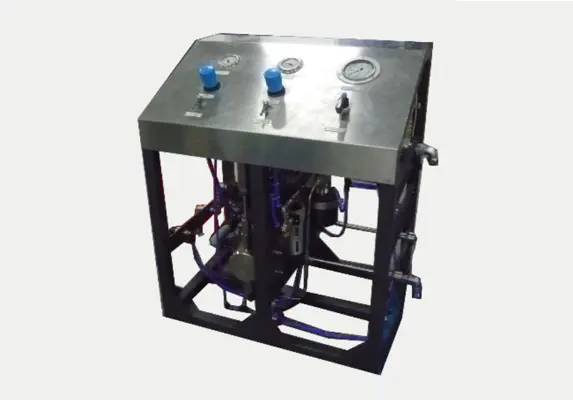

    15658643062451

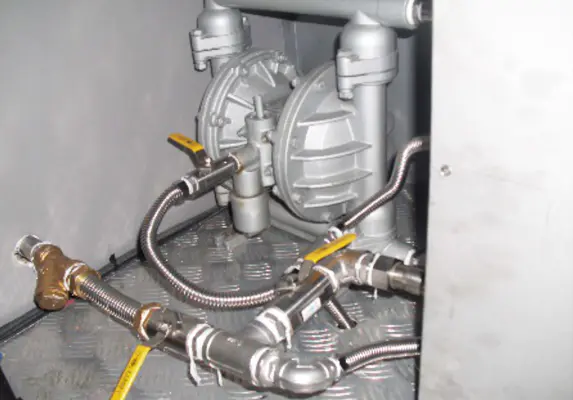

    15658643063524

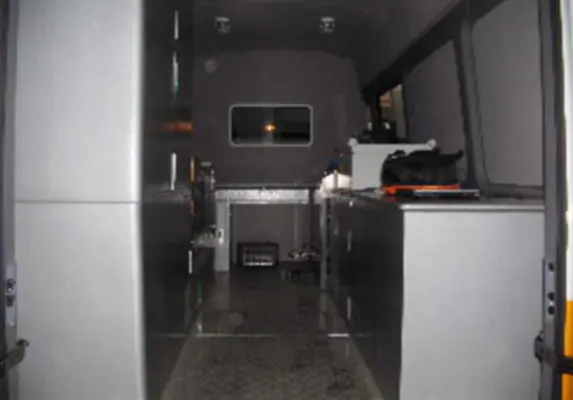

    15658643078046 1

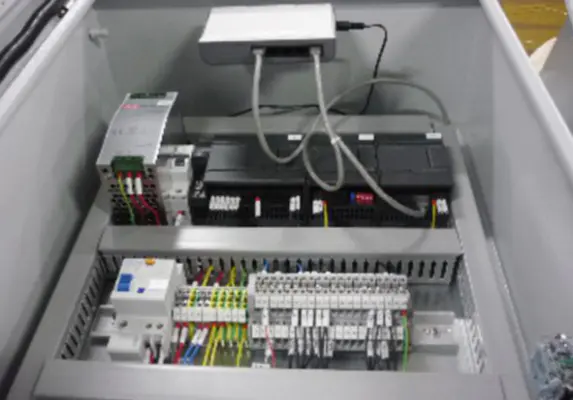

    15658643067827 1

    VehicleLveco engineering vehicle
    Engine power (Kw)92
    Drive2*4 option (4*4)
    Engine displacement (ml)2798
    Max torque (Nm/rpm)285/1900
    Dimensions6880L*2000W*3200H, 2950, 2850
    • ●  The vehicle must meet the rated load of 3T or more.
    • ●  The passenger area of the vehicle is completely isolated from the equipment loading area, carrying 5 passengers (including the driver).
    MediumClean water, hydraulic oil, mixed liquid (antifreeze)
    Max output pressure2500 bar / 250 Mpa
    Max output flow rate200L/min
    Pressure control accuracy1% FS
    Air pressure0.5 to 0.8Mpa
    Control methodManual / Automatic
    Recording methodComputer
    Power sourceElectric air compressor, diesel air compressor (optional)

    ————————————————————————————————————————————————————————————————————————————————————————————————————————————————————
