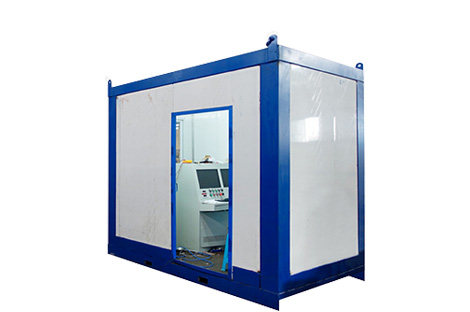

    • Pressure Testing and  Chemical Injection System for Burst Test

    Model:WY-CH105W/105CH-J2

    Share to

    Product Overview

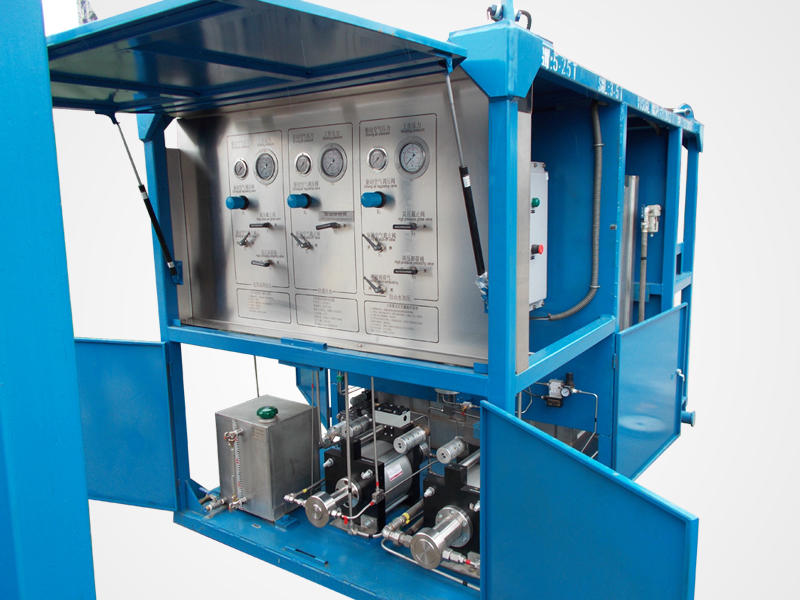

    Chemical Injection System Layout drawing

    The system is used for injecting methanol or ethylene glycol into the fluid upstream of the nozzle pipe to prevent the formation fluid from freezing due to the pressure drop, which is one of the most effective means for unblocking the wellhead equipment.

    The system uses a high-pressure gas-driven pump whose internal structure is made of a special material and is suitable for chemical reagents.

    • Maximum output pressure: 20000 PSI
    • Maximum displacement: 100L/H

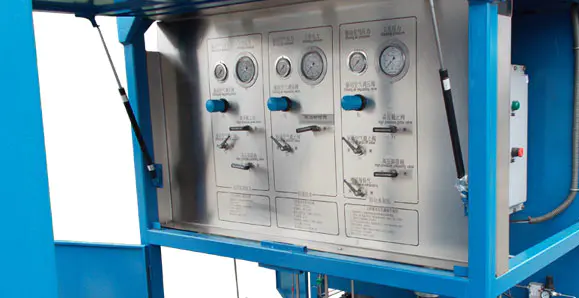

    Pressure Testing And Injection Equipment Burst Pressure Test Equipment

    Performance Data

    DELL laptop, 1 HP printer
    • ●  A/D capture card selects 32 single-ended, 16-channel double-ended, programmable sampling rate, display resolution: 1028*768.
    • ●  The function of the data acquisition control system can be fully remotely operated and controlled; all test pressure values are used for real-time data acquisition and display data.
    • ●  The curve can display the pressure test process in real time.
    • ●  The system has various function settings such as overpressure alarm, control, reading, curve and color.
    • ●  The pressure test data is saved by the database, which facilitates querying and repeating printing and displaying the pressure test process.
    Pressure Testing And Injection Equipment Burst Pressure Test Equipment
    • Wireless remote control and alarm system
    • The wireless transmitting antenna and alarm are installed on the top of the trailer, and the wireless remote control system can be operated remotely within 50 meters.

    Product Features

    Pressure Testing And Injection Equipment Burst Pressure Test Equipment
    • ●  The pressure test medium is a liquid, and the hydraulic test of different pressure levels up to 150 MPa.
    • ●  Maximum displacement 240L/MIN.
    • ●  The whole test process is automatically controlled remotely by the laptop, and all test settings and operations can be completed in the automatic console.
    • ●  The computer automatically generates pressure and time curves, displays them in real time, stores various data, and prints inspection reports on site.
    • ●  When the system pressure is greater than 5Mpa, the sound and light alarm system starts to work, prompting the site personnel to stay away from the high pressure area, making the field operation safer and more standardized.
    • ●  Chemical injection unit, pressure and flow rate can be adjusted.
    • ●  Modular design, suitable for transportation and well site installation, diesel air compressors do not require power and electricity.

    Performance Data

    Medium

    Liquid

    Max flow of the high pressure pump

    24L/min

    Max flow of the high pressure pump

    878L/min

    Working pressure

    300-1500 bar

    Test workpiece

    Multiple outputs

    Air supply pressure

    8 bar

    Air supply flow

    3000 LN/min

    Water tank

    >400L

    Combined test pump weight

    55kg

    Product Connection

    High pressure outlet (PA)

    G1/2 Female

    Water filling outlet (PB)

    Rc1.5-2″

    High pressure relief valve (PC)

    G1/2 Female

    Pressure Testing And Injection Equipment Burst Pressure Test Equipment

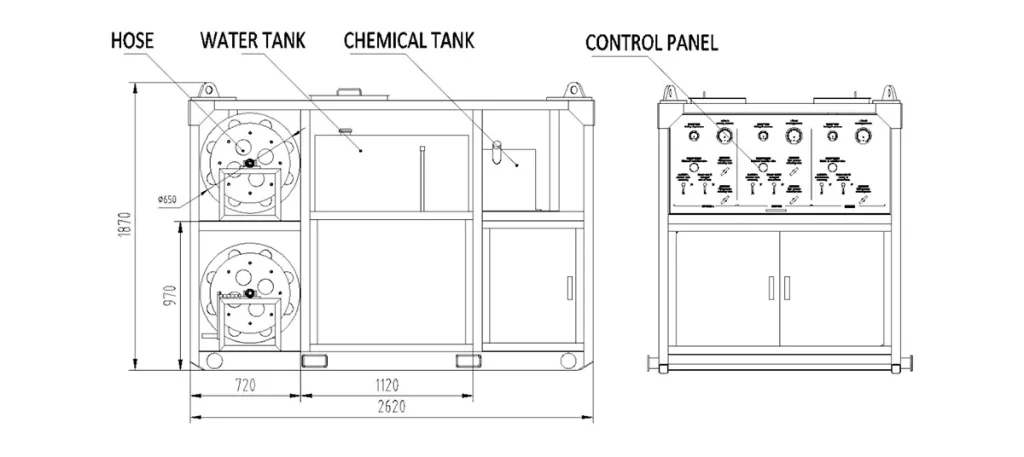

    Structural Diagram
