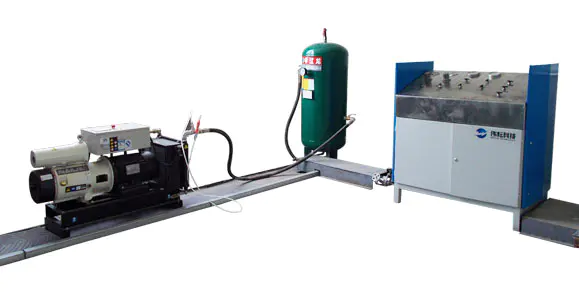

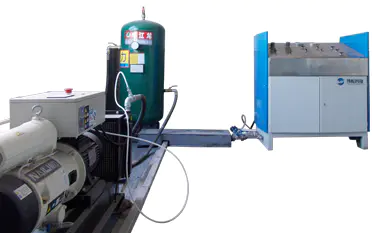

High Pressure Hose Testing Equipment
High Pressure Hose Testing Equipment
  • High Pressure Hose Testing Equipment
  • High Pressure Hose Testing Equipment

    • High Pressure Hose Testing Equipment

    Model: WY-350W-GJ2

    Share to

    Overview

    Downhole Tool Pressure Test Equipment can meet various types of tests under complex conditions, such as pressure test, temperature test, cycle test and so on. The device has functions such as automatic control, test parameter recording, video monitoring, and voice call.

    Features

    High Pressure Hose Testing Equipment
    • ●  Infinitely variable output pressure and flow .
    • ●  Holds static pressure without generating heat or consuming power.
    • ●  When the set pressure is reached, the equipment automatically stops and is safe to use.
    • ●  Easy to transport and hoist.
    • ●  Remote control.
    • ●  Real-time display of test data, data recording, and data check.
    • ●  Multi-angle video surveillance.

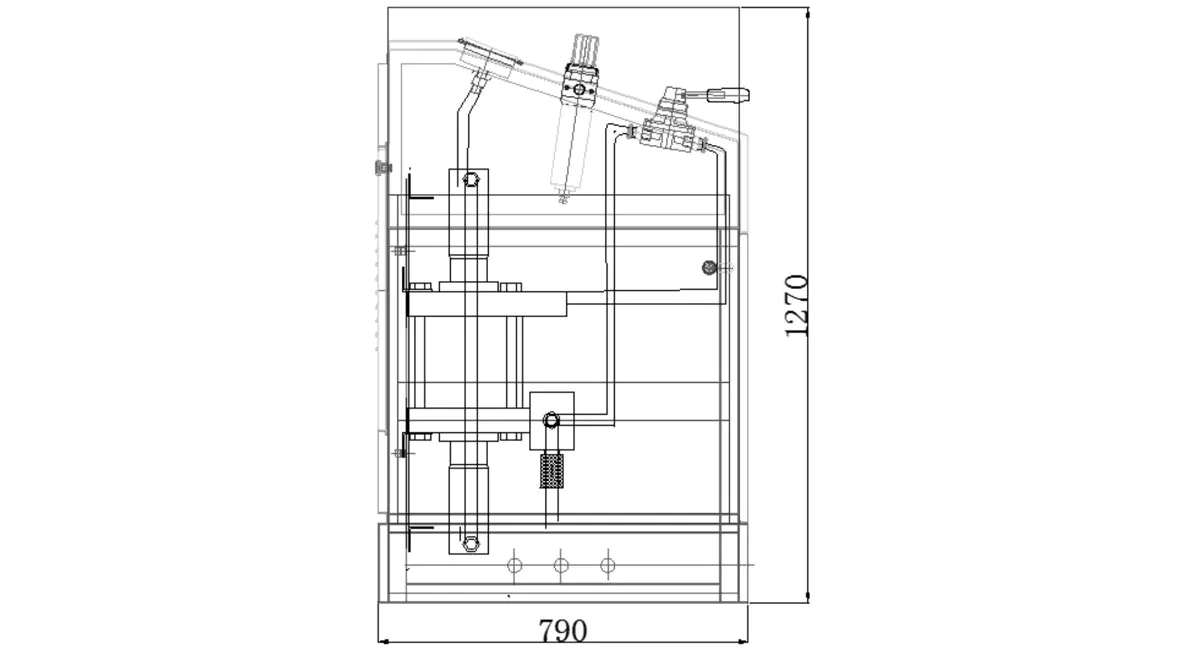

    Size1200L*750W*1200L
    Maximum displacement15L/min
    Maximum output pressure350 bar / 35Mpa
    Safety valve setting pressure380 bar / 38Mpa
    Needle valve maximum operating pressure1050 bar / 105Mpa
    Maximum sensor pressure400 bar / 40Mpa
    Maximum operating pressure of solenoid valve500 bar / 50Mpa
    Sensor accuracy±0.1% FS
    Pressure gauge range600 bar / 60Mpa

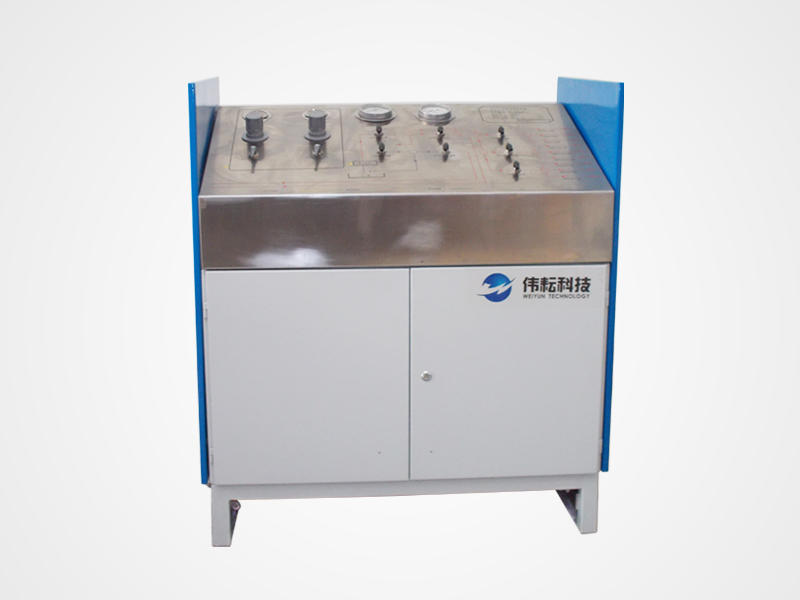

    Control Cabinet

    Size1500L*900W*1340H
    LCD size22 inch
    Video monitor display matching size22 inch
    • Automated control, real-time data acquisition, monitoring, saving.
    • With overpressure alarm and automatic pressure relief.

    Connection

    Center tube high pressure outletG3/4F (6 points female thread)
    4 inch bypass high pressure outletG3/4F (6 points female thread)
    4 inch half bypass high pressure outletG3/4F (6 points female thread)
    5 inch half bypass high pressure outletG3/4F (6 points female thread)
    7 inch bypass high pressure outletG3/4F (6 points female thread)
    9 .5 inch bypass high pressure outletG3/4F (6 points female thread)
    Ground interview pressure high pressure outletG3/4F (6 points female thread)
    Pressurized medium inletG1’ F (1 inch female thread)
    Compressed air inletG1’ F (1 inch female thread)

    Material List

    FrameStainless steel
    Water tankStainless steel
    Pressure gaugeStainless steel
    ValveStainless steel
    TubeStainless steel
    ConnectionsStainless Steel
    Hydraulic CylinderAnodized aluminum
    PistonStainless steel
    Booster pump headStainless Steel
    Control cabinetCarbon steel

    Hydraulic Pressure Static Conditions (@7bar)

    Air pressure (bar)01234567
    Hydraulic pressure (bar)063126189256315378441
    Output flow rate (L/min)03.232.72.421.51
