High Pressure Needle Valves

The working medium can be hydraulic oil, water, and most chemicals corrosive liquids. The special structure and materials to meet the requirements of a variety of industrial users and our professional design team can you use to design the most in line with the products you use.

Share to

The high working pressure:

Maximum can be used to 60,000 psi,mature development and design,high accuracy,good mating applicable to any harsh conditions and high- pressure state.

Wide range of applications:

The working medium can be hydraulic oil,water and most chemicals corrosive liquids.STK product special structure and material to meet the requirements of a variety of industrial users and our professional design team can you use to design the most in line with the products you use.

Reliability:

By the cold-worked austenitic stainless steel 316 or more suitable material to meet specific application requirements.

Timely delivery:

Standardized production processes,to ensure the inventory of conventional products and deliver to the user in the first time.

Reduce costs:

UHP valves in line with European machinery standards(89/392/EEC),a higher degree of interchangeability with foreign standard products;optimized management system to ensure the timely provision of various accessories and repair kits.

Traceability:

STK Ultra high-pressure valve pressure parts have a special label,these parts can be traced back to the raw materials.

image 30
image 29

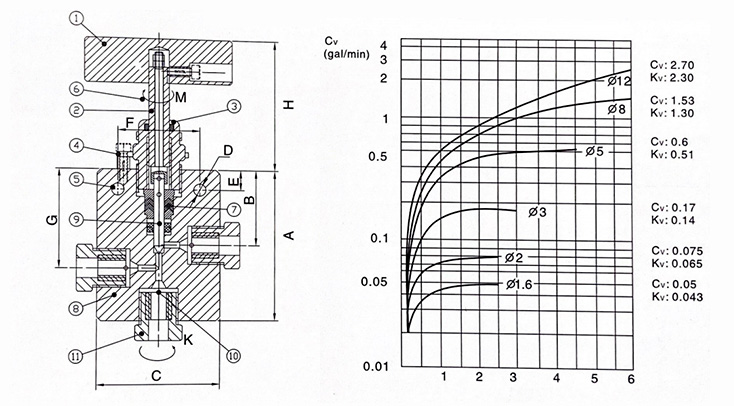

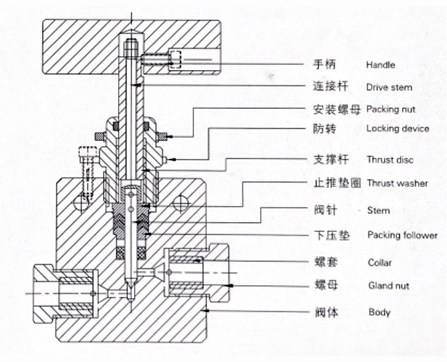

High Pressure Needle Valves Features

① According to the ergonomically designed handle,convenient and comfortable to operate.

② The unique split stem design to solve the integrated concentricity.

③ The quality alloy dual-thread design, reducing the resistance knob

④ Reliably anti-rotation fixed

⑤ Panel or bracket

⑥ Special double thread engagement lightweight design make the operation more

⑦ PTFE packing low friction, long service life.

⑧ The valve body made of cold working AUSTIN stainless steel316,so it will be more resistant to corrosion and wear.

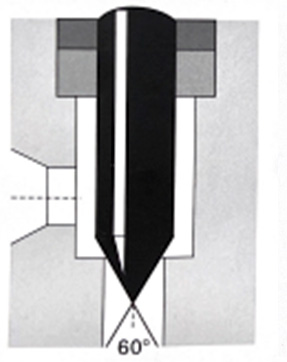

⑨ Conical surface metal seal, regardless of the medium is a gas or liquid can be completely sealed.

⑩ Pressure relief hole, the connections are in line with the high-pressure threaded connections with international standards.

⑪ Provide stainless steel nuts,threaded sleeve.

image 31

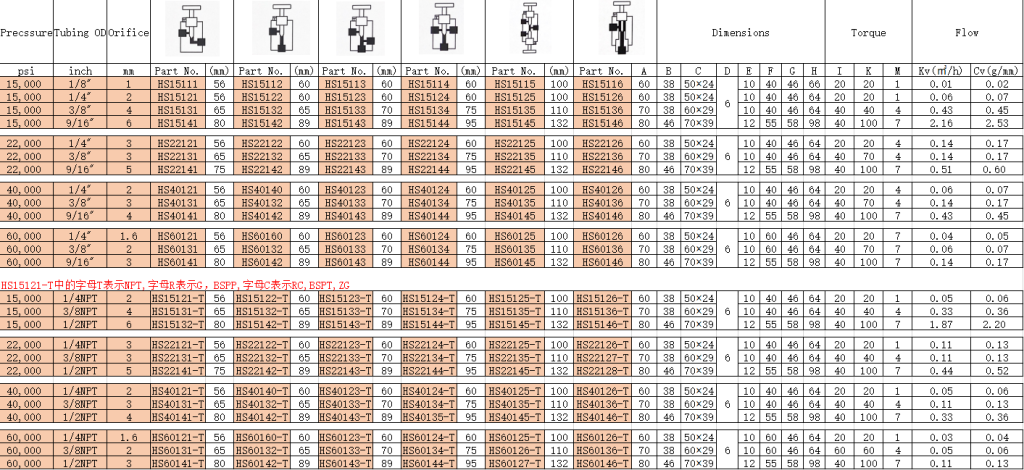

High Pressure Needle Valves Parameter Table Download

image 32
