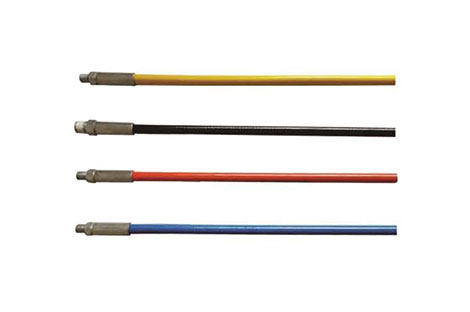

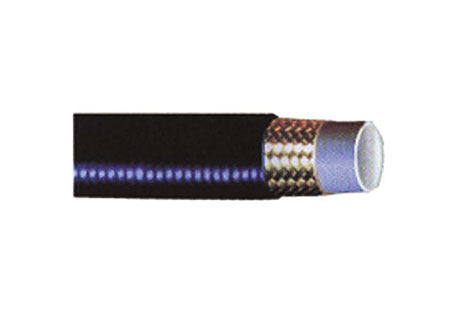

High Pressure Steel Wire Knitting Hose
- The automatic dosing unit is a new type of dosing system independently researched and developed by our company. It has gained a good reputation at home and abroad and has been recognized and affirmed by users.
- Mainly used in the field of natural gas petroleum and petrochemical, chemical, food, textile semiconductor environmental protection, water supply systems etc.
Share to
Features
Oil, acid, and alkali resistant, wear-resistant, beautiful appearance, smooth inner wall, low fluid resistance, long service life.
Application
Petrochemical, aerospace, ship, desalination, automotive, construction machinery, agricultural machinery, machine tools, presses, and other hydraulic and pneumatic applications.
Temperature range: -20°C to 100°C
| Specs and models | Inner diameter(mm) | Outer diameter(mm) | Working pressure(MPa) | Minimum bending radius(mm) | Joint dimension | ||||||
| DN (mm) | Inch | Ⅰ | Ⅱ | Ⅰ | Ⅱ | Ⅰ | Ⅱ | ACDHG type d | S | B | |
| HX-GPA(GPU)-4 | 4±0.2 | 5/32″ | 9.1±013 | 11±0.3 | 60 | 80 | 65 | 65 | M12×1.25 | 14 | 4 |
| HX-GPA(GPU)-6 | 6±0.2 | 1/4″ | 11.8±0.3 | 15.1±0.3 | 40 | 70 | 80 | 80 | M14×1.5 | 17 | 6 |
| HX-GPA(GPU)-8 | 8±0.2 | 5/6″ | 13.7±0.3 | 15.3±0.3 | 35 | 50 | 90 | 90 | M16×1.5 | 19 | 8 |
| HX-GPA(GPU)-10 | 10±0.2 | 3/8″ | 16.5±0.3 | 17.8±0.3 | 32 | 40 | 100 | 100 | M18×1.5 | 22 | 10/12 |
| HX-GPA(GPU)-12 | 12±0.3 | 1/2″ | 19.5±0.3 | 21±0.3 | 28 | 35 | 120 | 120 | M22×1.5 | 27 | 14 |
| HX-GPA(GPU)-16 | 16±0.3 | 5/8″ | 22.6±0.5 | 24.2±0.5 | 15 | 25 | 150 | 150 | M27×1.5 | 32 | 16 |
| HX-GPA(GPU)-19 | 19±0.3 | 3/4″ | 27±0.5 | 29.8±0.5 | 13 | 20 | 180 | 180 | M30×1.5 | 36 | 18 |
| HX-GPA(GPU)-22 | 22±0.3 | 7/8″ | 31±0.5 | 33±0.5 | 11 | 15 | 220 | 220 | M36×2 | 41 | 22 |
| HX-GPA(GPU)-25 | 25±0.4 | 1″ | 34±0.5 | 36±0.5 | 10 | 14 | 250 | 250 | M39×2 | 46 | 28 |
| HX-GPA(GPU)-32 | 32±0.4 | 1-1/4″ | 41±0.5 | 43±0.5 | 8.5 | 12 | 320 | 320 | M45×2 | 55 | 34 |
| HX-GPA(GPU)-38 | 38±0.4 | 1-1/2″ | 47±0.5 | 49±0.5 | 7 | 10 | 380 | 380 | M52×2 | 60 | 42 |
| HX-GPA(GPU)-45 | 45±0.4 | 1-3/4″ | 54±0.5 | 56±0.5 | 6.5 | 9 | 450 | 450 | M60×2 | 70 | – |
| HX-GPA(GPU)-51 | 51±0.4 | 2″ | 61±0.5 | 63±0.5 | 6 | 8 | 520 | 520 | M60×2 | 75 | – |
————————————————————————————————————————————————————————————————————————————————————————————————————————————————————
