Pneumatic Hydrostatic Test Pump Unit with Digital Pressure Gauge
- Model: WY-15000W-BJ0

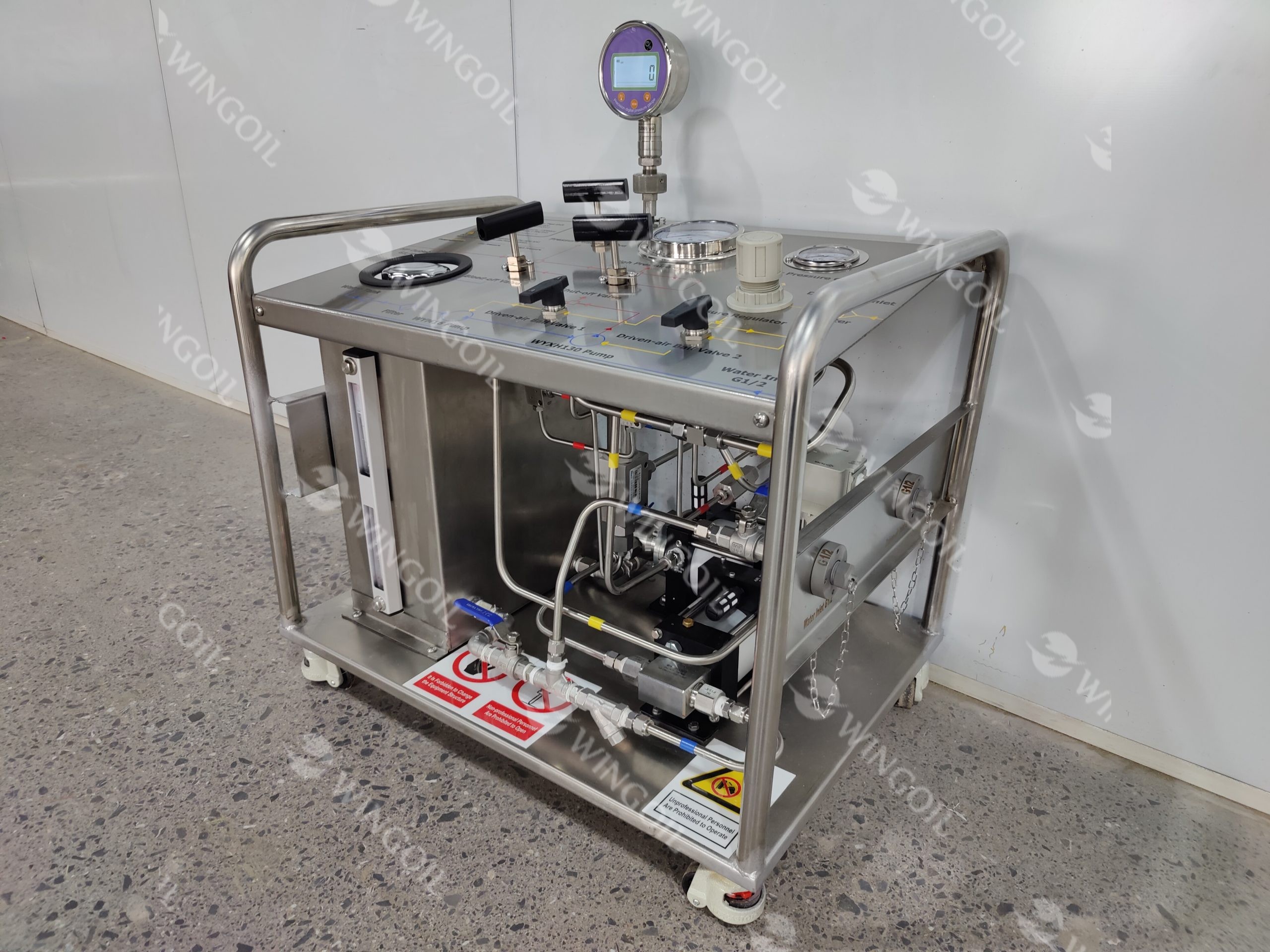

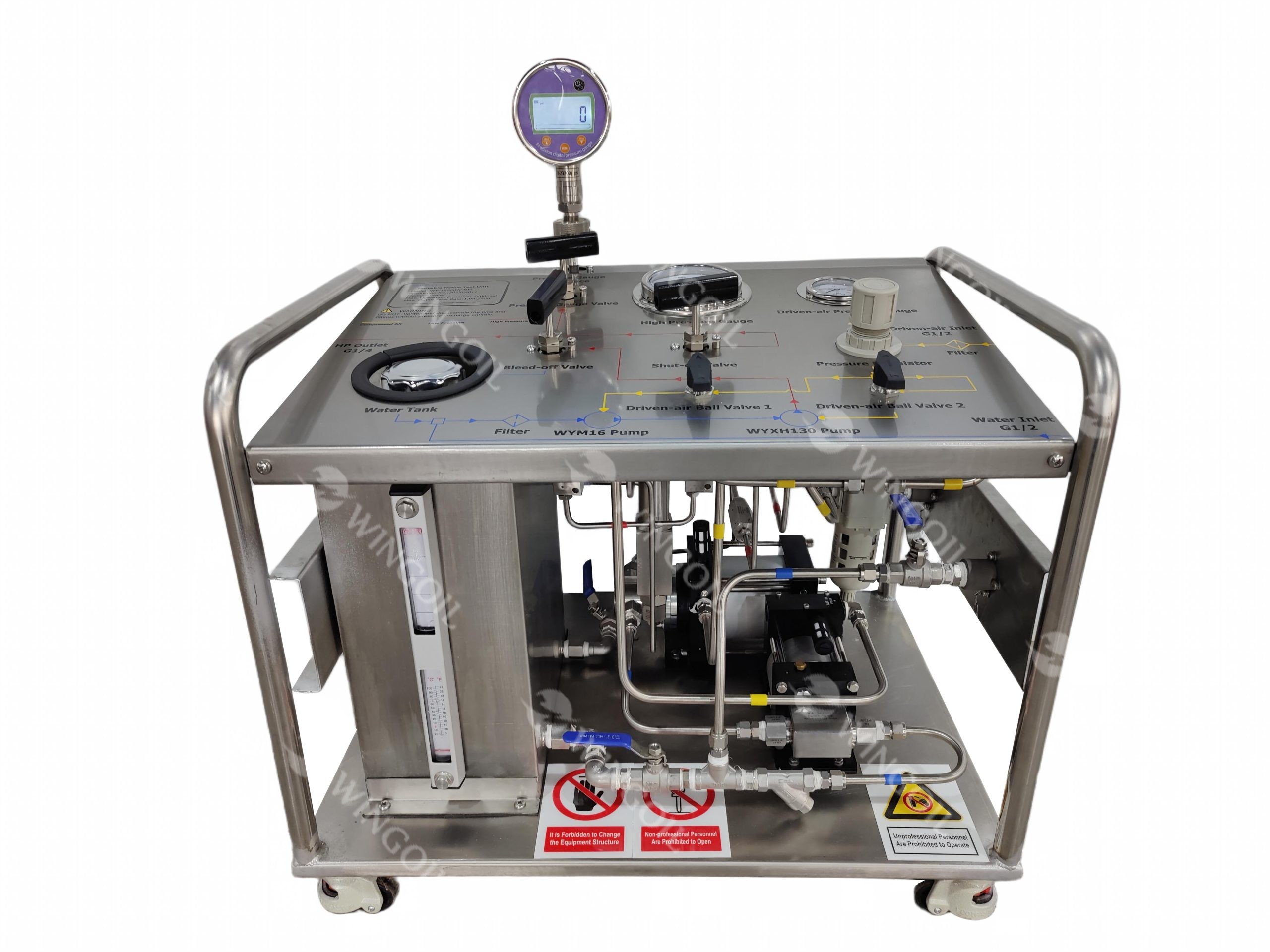

- This Pneumatic Hydrostatic Test Pump Unit with Digital Pressure Gauge features a full stainless steel frame paired with braked mobile casters, delivering outstanding corrosion resistance, long-term durability, and flexible mobility to support seamless workstation switching across different testing scenarios.
Share to
Overview

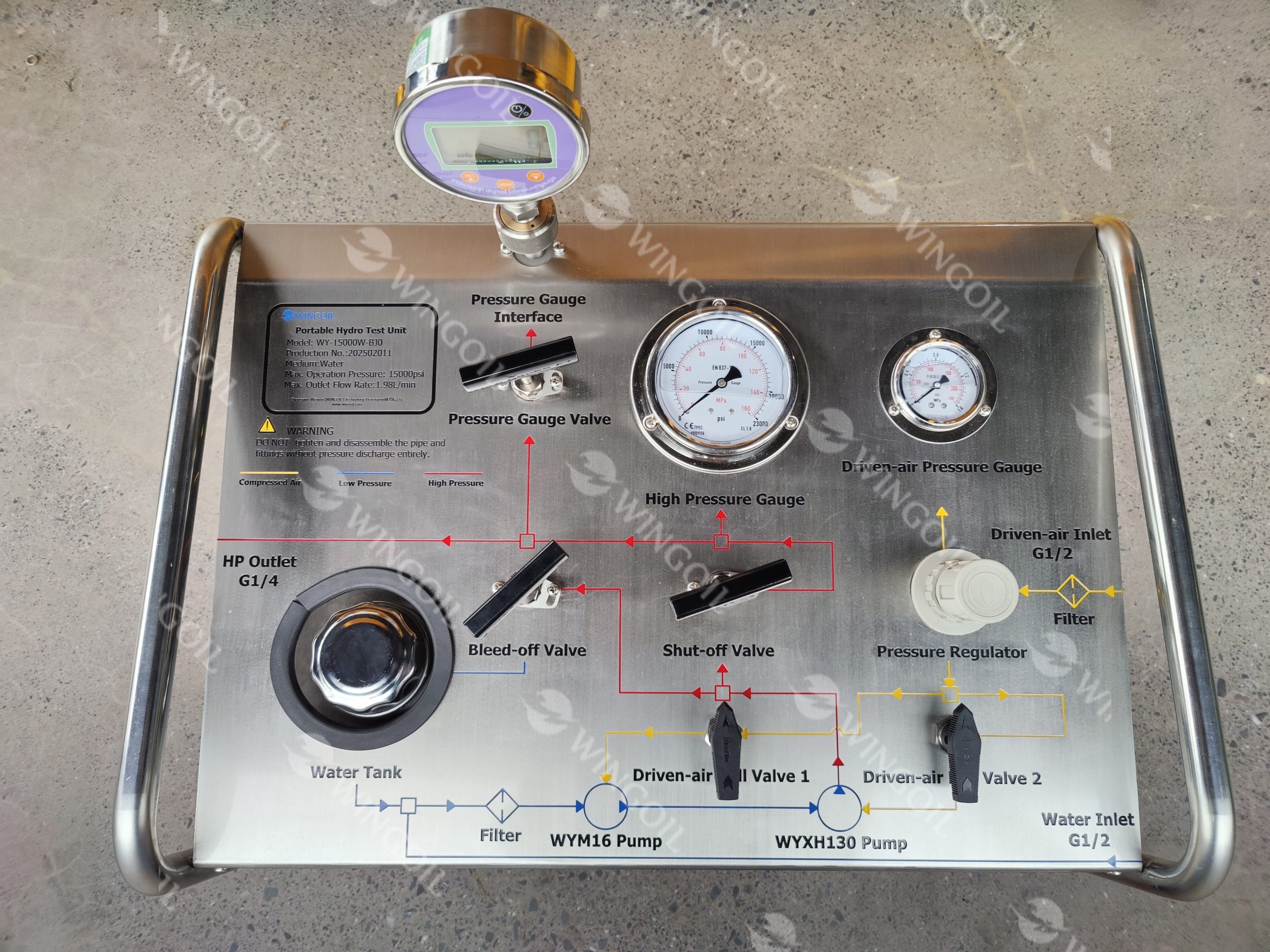

Its top operation panel clearly marks all functional pipelines and valve component identifiers, integrating a high-precision digital pressure gauge, drive pressure regulating valve, multiple control ball valves and precision filtration assemblies.
The unit allows arbitrary, adjustable and controllable output pressure by regulating the drive air pressure, and will automatically stop pressure replenishment and maintain long-term pressure holding once the force balance between drive air pressure and output pressure is achieved, eliminating extra energy consumption and medium overheating issues.
Model: WY-15000W-BJ0
with Digital Pressure Gauge
- It uses low-pressure compressed air as the boost power source, which is convenient, safe and environmentally friendly.
- The equipment adopts a stainless steel frame structure, with casters installed at the bottom and handrails that can be used as a crane for easy transportation.
- The equipment has a pressure self-locking function, that is, under the condition of set driving air pressure, the output pressure is constant, there is no overshoot, and the pressure maintenance does not consume energy.
- The device provides a dual-scale shock-proof pressure gauge display.
Model: WY-15000W-BJ0
with Digital Pressure Gauge
| Medium | Clean water |
| Max. output pressure | 15600psi@driving air = 120psi |
| Max. flow rate | 1.98L/min@outlet pressure = 0psi |
| Max. air pressure | 10 bar / 145psi |
| Tank capacity | 20L |
| Dimension | 700L*500W*520H (mm) |
Connection
| Compressed air inlet | G1/2” |
| Medium inlet | G1/2 ” / φ 50mm water inlet |
| High-pressure outlet | G1/4 |
Structure
| Frame and panel | Stainless steel |
| Tank | Stainless steel |
| Pressure gauge | Stainless steel |
| Valve | Stainless steel |
| Tube | Stainless steel |
| Connector | Stainless steel |
————————————————————————————————————————————————————————————————————————————————————————————————————————————————————
