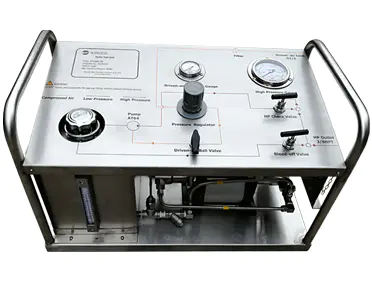

Portable Hydrostatic Water Test Pump

Model: WY-105W-J1

Share to

Product Overview

Wingoil Portable Pressure Test Systems utilize the advantages of air driven liquid pumps and are assembled into robust, lightweight portable packages ideal for providing liquid transfer and pressurization for a wide range of pressure testing applications, such as for vessels, pipes, valves, etc.

These self-contained units are powered by compressed air and designed for use with a wide range of fluids of water, or soluble oil as the hydrostatic test media.

The pumps, valves and tubes are all made of stainless steel and can withstand the harsh working conditions of high temperature and high pressure. The portable, lightweight test rigs are designed for onsite pressure testing – both onshore and offshore.

Product Features

Portable Hydrostatic Water Test Pump
  • ●  Low-pressure compressed air as the booster power source, safe and environmentally friendly.
  • ●  Infinitely variable output pressure and flow.
  • ●  Holds static pressure without generating heat or consuming power.
  • ●  No heat, flame or risk of spark.
  • ●  Standard models are suitable for oil & water applications.
  • ●  Well proven and trouble-free operation.
  • ●  Designed for ease of maintenance.
  • ●  Low cost servicing.
  • ●  Compact, robust, self-contained structure.

Performance Data

Pressure ratio1:265
MediumWater, hydraulic oil, chemicals
Max output pressure2650bar / 38425psi
Max flow3.8L/min @7bar
Max air supply pressure10bar/145psi
Air consumption1000L/Min@7bar
Tank capacity20L
Dimensions800L*450W*500H (mm)

Product Connections

Driven-air inletG1/2
Driven-air outlet1/2″NPT(F)
High-pressure outletG1/4-60°
Portable Hydrostatic Water Test Pump

Product Construction

Frame and panelStainless steel
TankStainless steel
Pressure gaugeStainless steel
ValveStainless steel
TubeStainless steel
ConnectorStainless steel
Hydraulic cylinderAnodized aluminium
PistonStainless steel
Pump headStainless steel

Hydraulic Pressure Static Conditions (@7bar)

Air pressure(bar)00.401.001.502.003.005.006.00
Hydraulic pressure(bar)040100150200300500600
Output flow(L/min)3.623.022.562.261.811.511.060.9

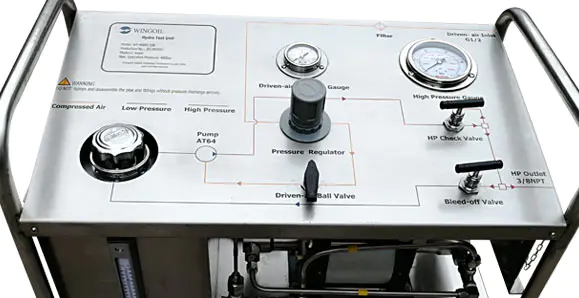

General Layout Drawing

Portable Hydrostatic Water Test Pump
