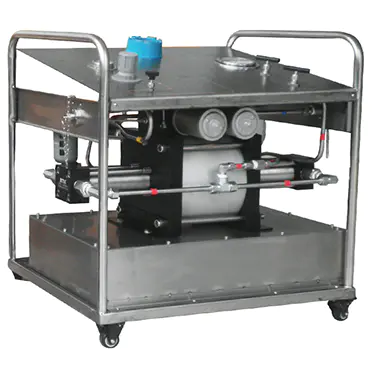

Portable Pressure Testing System with Flow Meter

Product model: WY-80W-J0/L

Share to

Product Overview

The portable hydraulic metering device is an experimental device that satisfies the metering of fresh water injection. The device uses compressed air as the power source.

The metering valve can record the real-time flow and the accumulated flow, and can adjust the output flow. The output pressure can be adjusted by adjusting the drive air valve.

Product Features

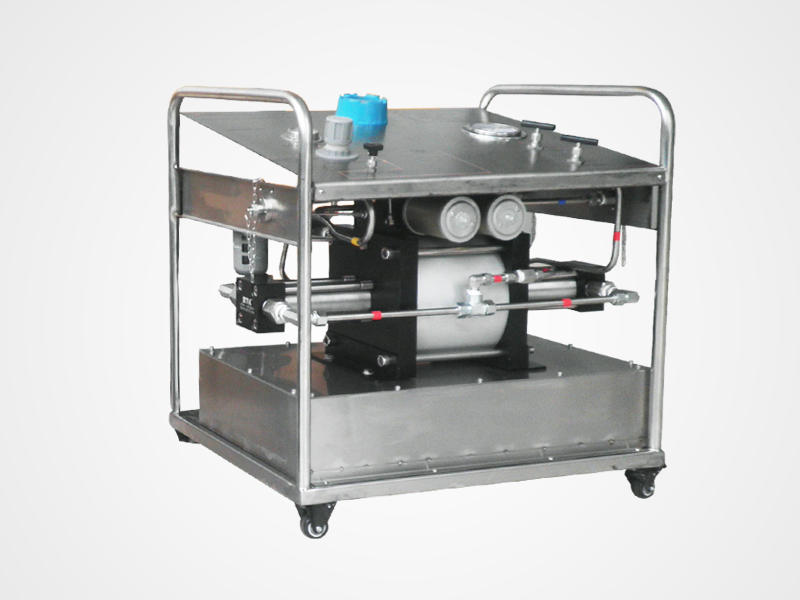

Portable Pressure Testing System with Flow Meter
  • ●  Low-pressure compressed air as the booster power source, safe and environmentally friendly.
  • ●  The flowmeter is made of lithium battery and has a service life of 2-3 years. Safe to use.
  • ●  Equipped with a metering valve that can adjust the output pressure slightly and accurately control the output pressure.
  • ●  Pressure self-locking function, under the condition of setting the driving air pressure, the output pressure is constant.
  • ●  Standard: 1/4 UNF thread Connector.
  • ●  Dual scale shockproof pressure gauge display.
  • ●  Infinitely variable output pressure and flow.
  • ●  Holds static pressure without generating heat or consuming power.
  • ●  No heat, flame or risk of spark.
  • ●  Well proven and trouble-free operation.
  • ●  Designed for ease of maintenance.
  • ●  Low cost servicing.
  • ●  Compact, robust, self-contained selstructure.

Performance Data

Pressure ratio1:10
MediumClean water, hydraulic oil
Max output pressure83bar/1203.5psi
Max flow4.42L/min @7bar
Max air pressure10bar/145psi
Air consumption600L/Min@7bar
Tank capacity20L
Dimension1000L*500W*550H (mm)

Electronic Recorder

Measuring accuracy0.0001L
PowerLithium battery
LED data displayLED
Data outputNo
Data recordReal-time and accumulation flow
Max. working pressure1000 psi

Product Connections

Compressed air inlet8mm hose
High-pressure outlet1/4-18UNF
Safety valve outlet8mm fitting
Sewage drainage6mm hose (1/4UNF)

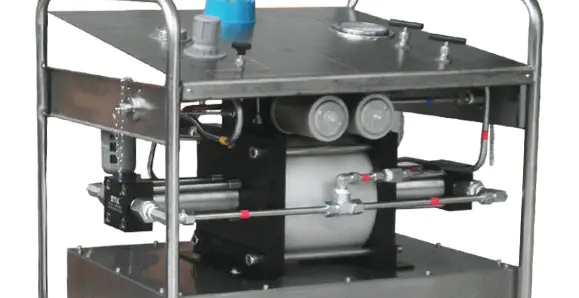

Product Construction

Frame and panelStainless steel
TankStainless steel
Pressure gaugeStainless steel
ValveStainless steel
TubeStainless steel
ConnectorStainless steel
Hydraulic cylinderAnodized aluminium
PistonStainless steel
Pump headStainless steel
Flow meterCarbon steel

Hydraulic Pressure Static Conditions(@7bar)

Air pressure(bar)02.55.07.0
Hydraulic pressure(bar)0255070
Output flow(L/min)4.423.831.620.59

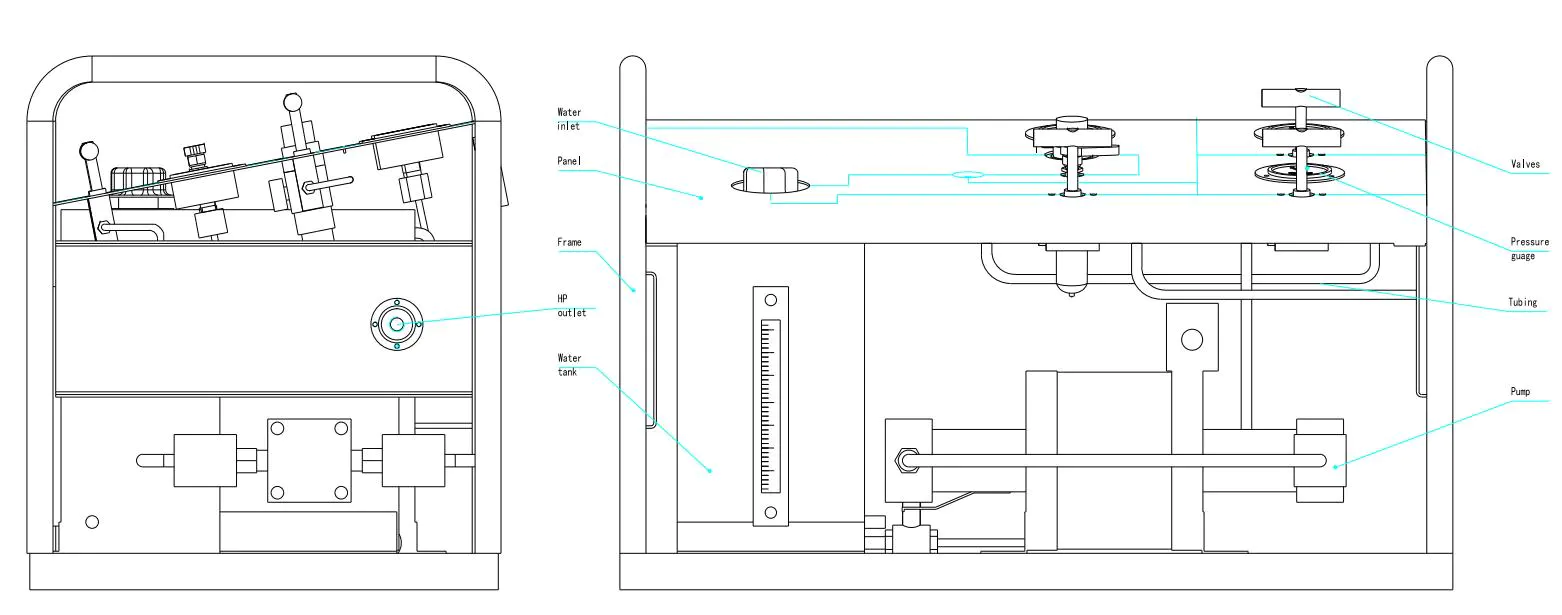

General Layout Drawing

Portable Pressure Testing System With Flow Meter Electric Hydrostatic Test Pump
