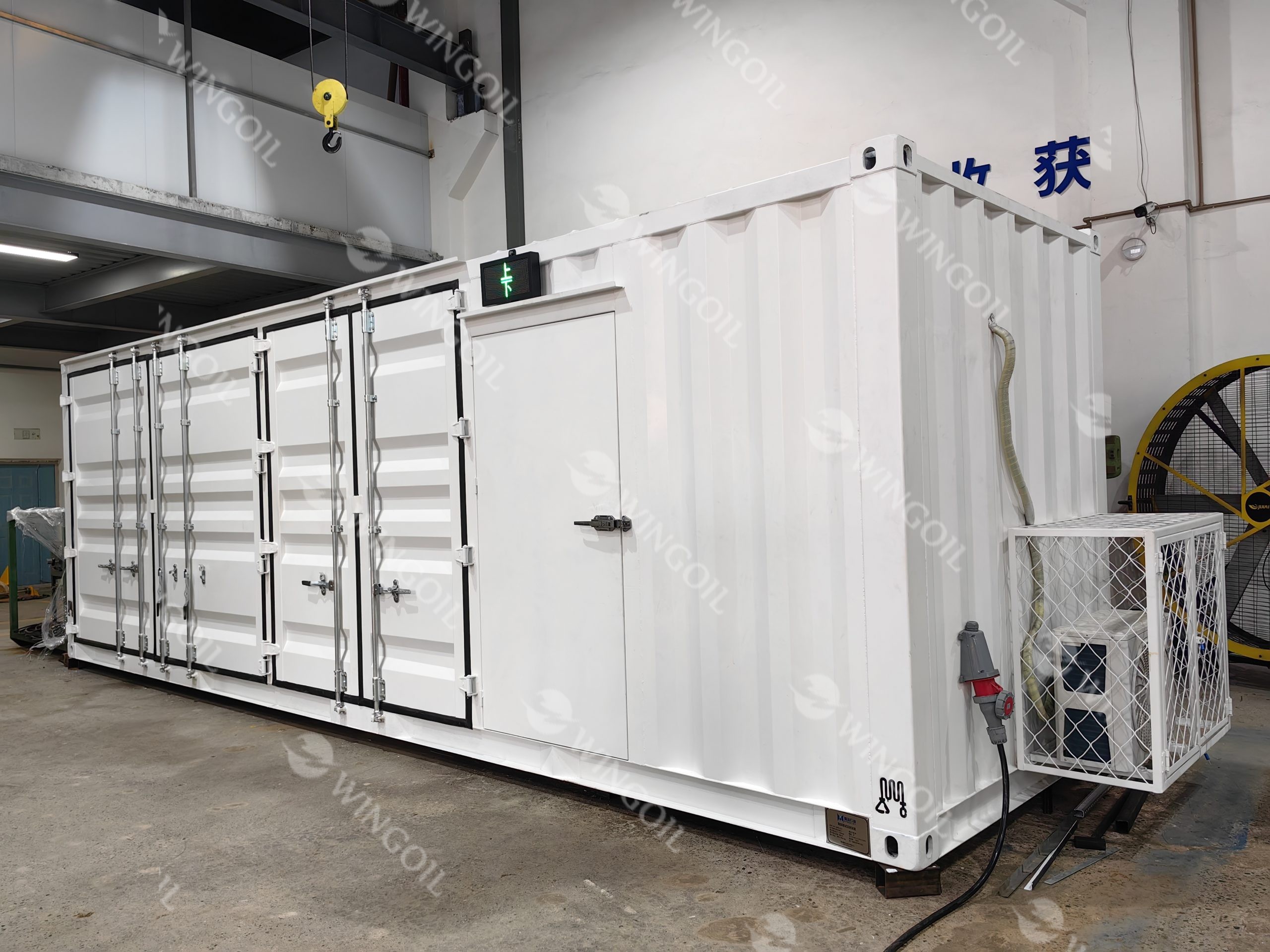

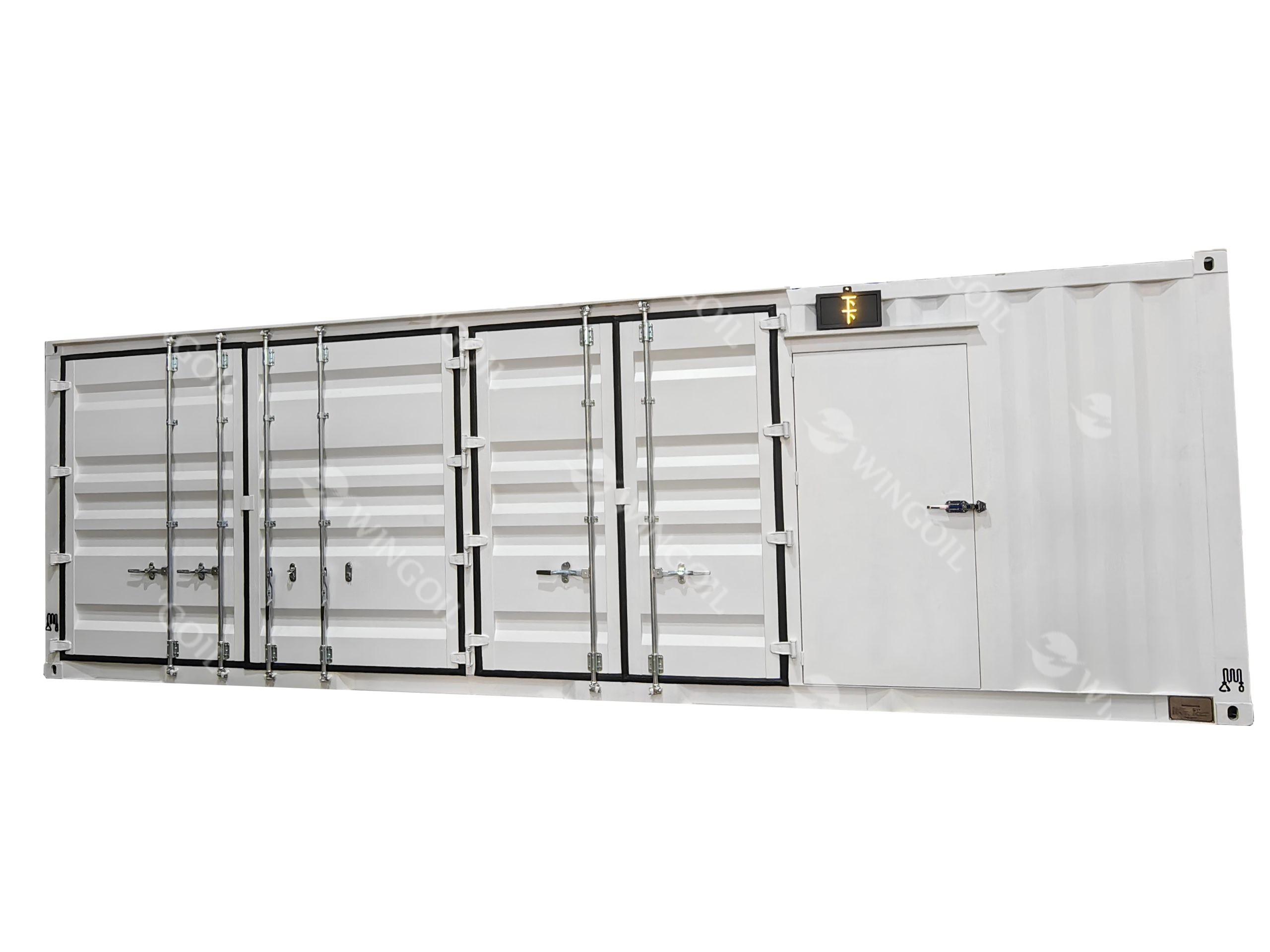

Pressure Test Container
- Model: HH-1400W-XJ1 (20ft or 40ft)
- The Pressure Test Container is equipped with multiple safety devises such as automated door locks and sensors, emergency buttons and signal lighting to warn the surrounding area of potential danger in the inside the test-bay.
- Full controllable high-end pan-zoom-tilt HD camera setup allows inspecting the tested object from a safe distance.
Share to
Overview
This Pressure Test Container is designed to test and evaluate various types of pressure-bearing equipment, including downhole tools, wellhead manifolds, BOP, and various valves. Pressure testing is conducted to ensure that field operations meet requirements and to guarantee operational safety.
This system primarily consists of two functional modules:
(1) Manual control panel: Used to manually control water filling and pressure boosting.
(2) Auto control panel: Used for the auto testing process.
Model: HH-1400W-XJ1 (20ft or 40ft)

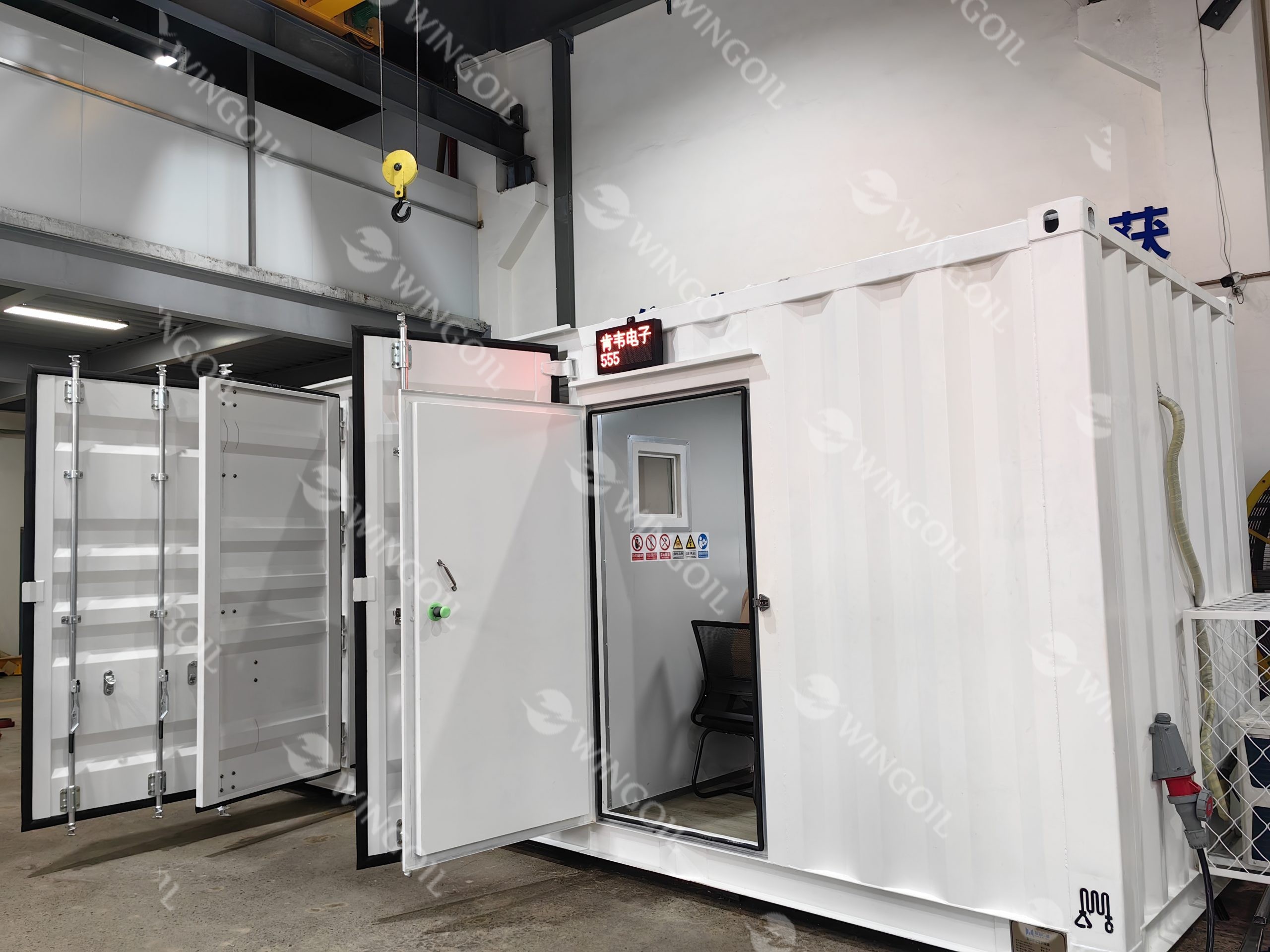

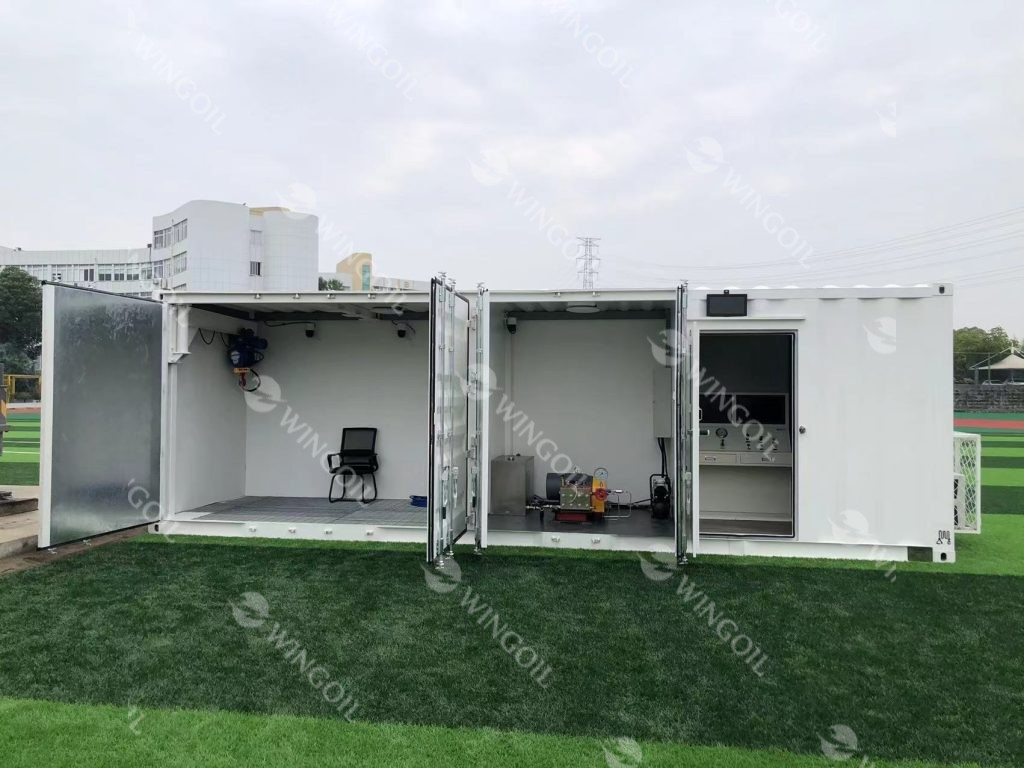

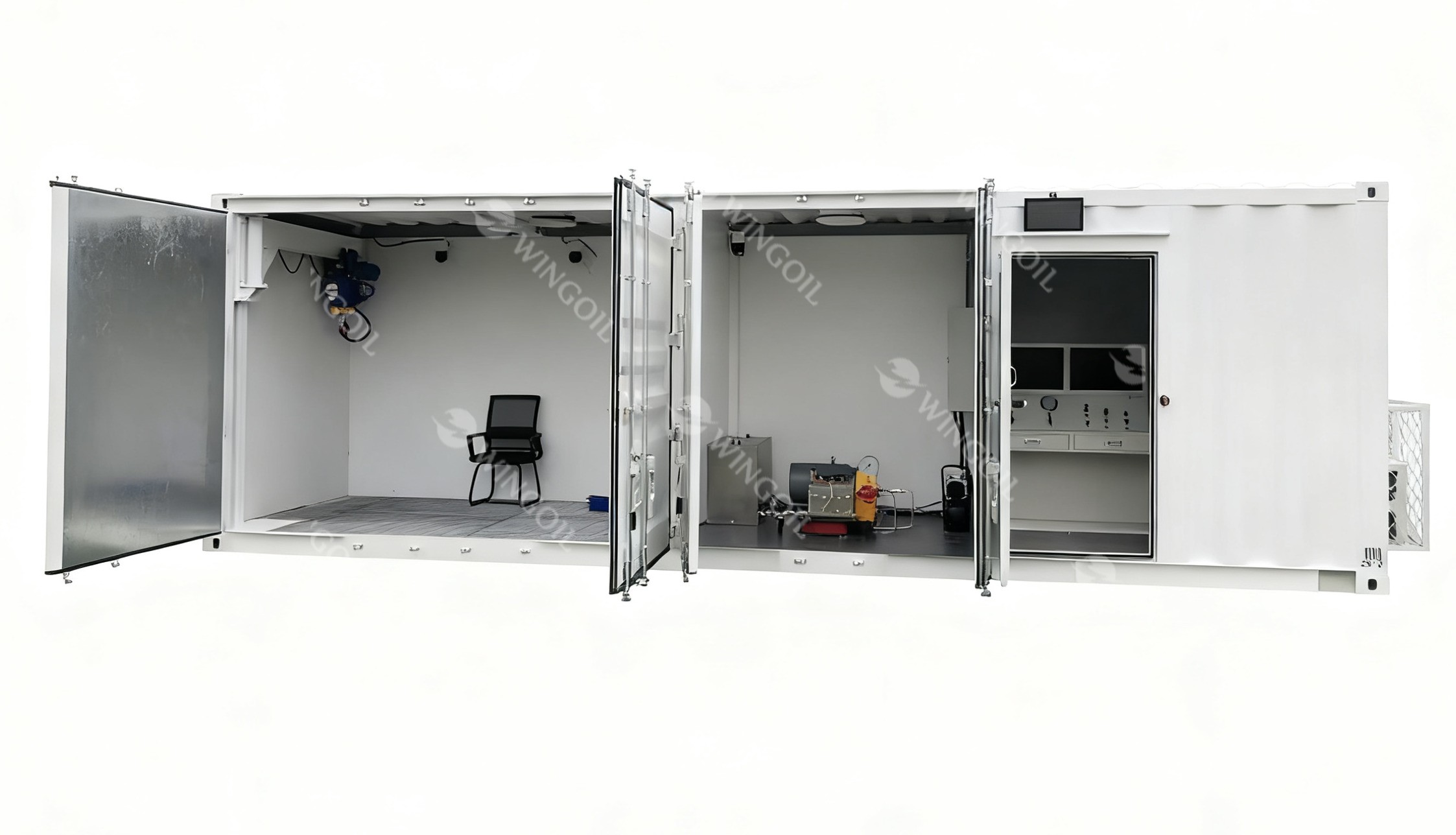

- The test system is housed in the container, while the control panel is placed in a separate safe compartment to ensure safety for the operator.
- The container wall is designed according to customer need with waterproof plywood inlay for shock and impact absorption.
- An integrated data acquisition system allows you to generate test reports on-site.
- Built-in air conditioning will enable workers to stay focused even when working in extreme conditions.
Model: HH-1400W-XJ1 (20ft or 40ft)
| Test medium | Clean water |
| Max. outlet pressure | 140Mpa |
| Max. outlet flow rate | 300L/Min |
| Water tank | 200L |
| Power supply | 220AC 50Hz |
| Total power | 15Kw |
| Dimensions | 20ft or 40ft |
————————————————————————————————————————————————————————————————————————————————————————————————————————————————————
