Features
Abrasion resistance, strong impact resistance, good elasticity, and low expansion rate.
Application

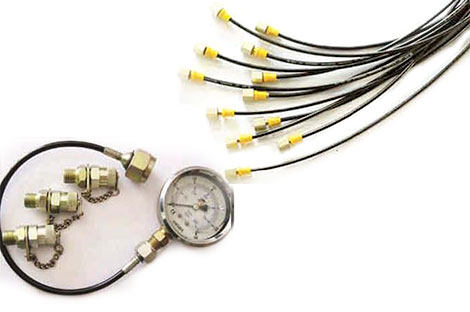

Used in small hydraulic unit, lubrication machine, pressure oiling machine, hydraulic control and pressure measuring system.
| Specs models | Inner diameter (mm) | Outer diameter (mm) | Rated work pressure (MPa) | Minimum burst pressure (mm) | |
| DN (mm) | Inch | ||||
| HF-2A | 2 | 1/12″ | 5 | 64 | 180 |
| HF-2B | 2 | 1/12″ | 5 | 40 | 120 |
| HF-2.5A | 2.5 | 5/48″ | 5.5 | 64 | 180 |
| HF-2.5B | 2.5 | 5/48″ | 5.5 | 40 | 120 |
| HF-3A | 3 | 1/8″ | 6 | 64 | 180 |
| HF-3B | 3 | 1/8″ | 6 | 40 | 120 |
| HF-3C | 3 | 1/8″ | 7 | 100 | 300 |
————————————————————————————————————————————————————————————————————————————————————————————————————————————————————
