Waterproof Case Nitrogen Booster Pump
- Model: WY-622N-BJ0
- The main function A properly specified waterproof case nitrogen booster pump provides reliable pressure amplification in outdoor, mobile, and industrial environments where equipment may be exposed to rain, washdown, humidity, or airborne contaminants. Its combination makes it suitable for demanding nitrogen supply and testing applications.
Share to
Overview
This equipment is used in high-pressure boosting systems for various gas such as oxygen, nitrogen, helium, carbon dioxide, hydrogen.
- Waterproof and corrosion-resistant enclosure
- High-pressure nitrogen compression capability
- Pressure regulators and Pressure gauges
- Stainless-steel gas-contact components
- Portable mounting frame or integrated carrying case
- Low-maintenance pneumatic drive system
Model: WY-622N-BJ0
- The equipment has a manual pressure adjustment function, which allows for precise pressure control.
- Back: Designed with a pull handle, making it easier to drag and pull .
- Bottom: Designed with two casters, allowing the device to be moved via the back lever.

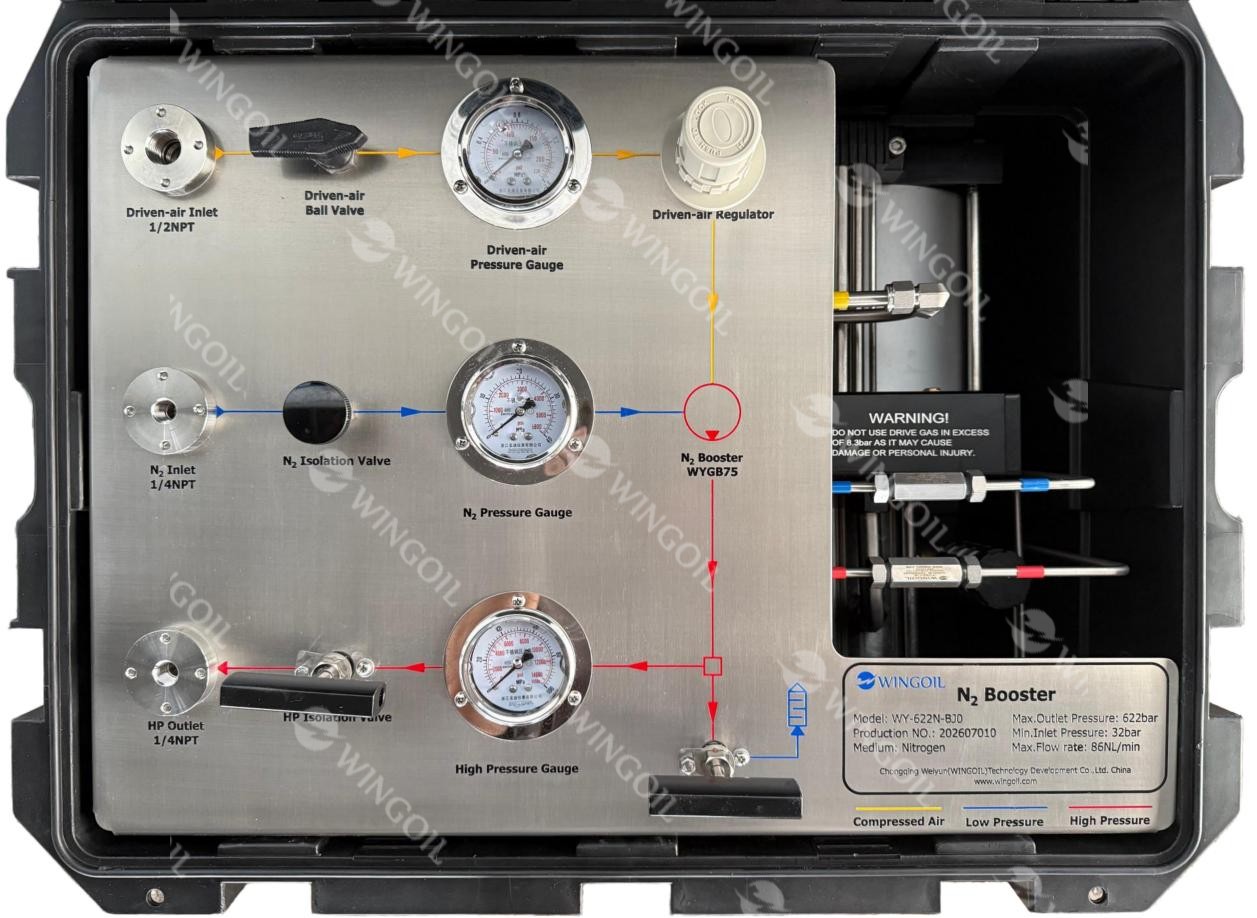

- Front: Designed with a drive air pressure control module, a drive air flow control module, a drive air shut-off valve, a high pressure gauge, a high pressure shut-off valve, and a high pressure unloading valve.
Model: WY-622N-BJ0
| Working medium | Nitrogen, Compressed air, etc. |
| Driving mode | Pneumatic |
| Max. outlet pressure | 622 bar @Pi = 8.3 bar |
| Max. outlet flow rate | 86 NL/min |
| Min. gas inlet pressure | 32 bar |
| External dimensions | 730 L * 550 W * 436 H |
————————————————————————————————————————————————————————————————————————————————————————————————————————————————————
