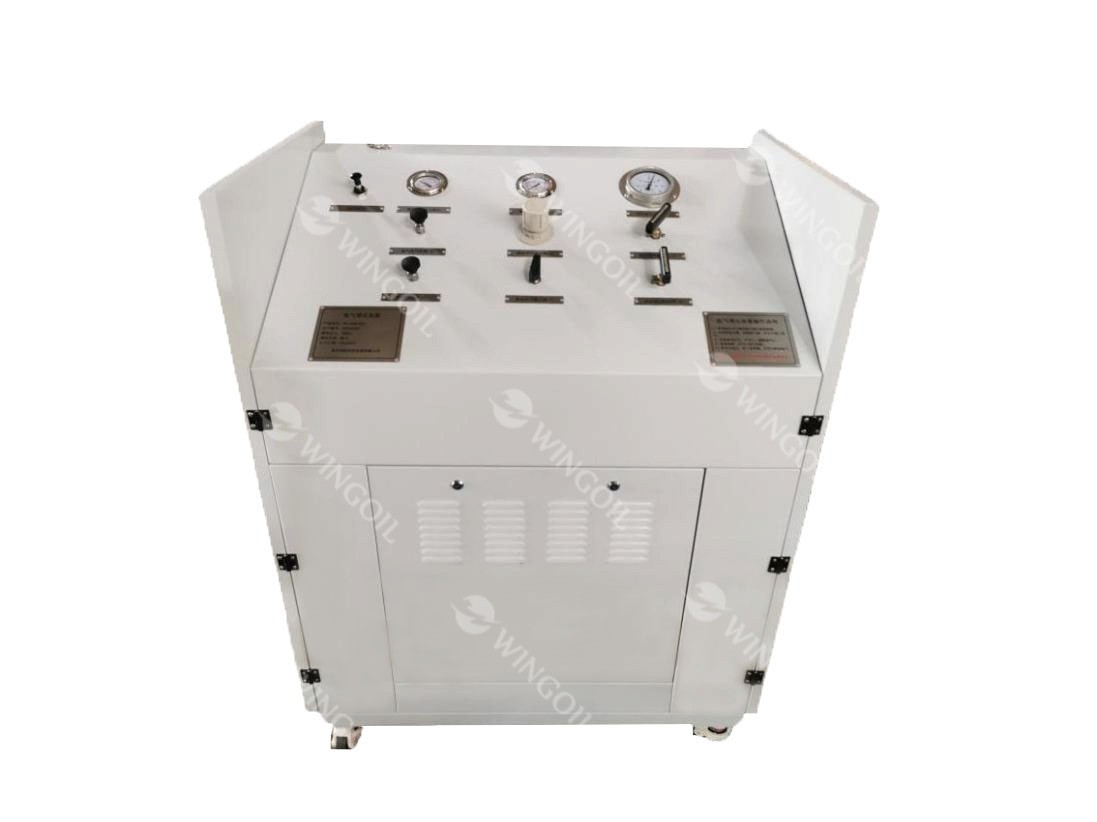

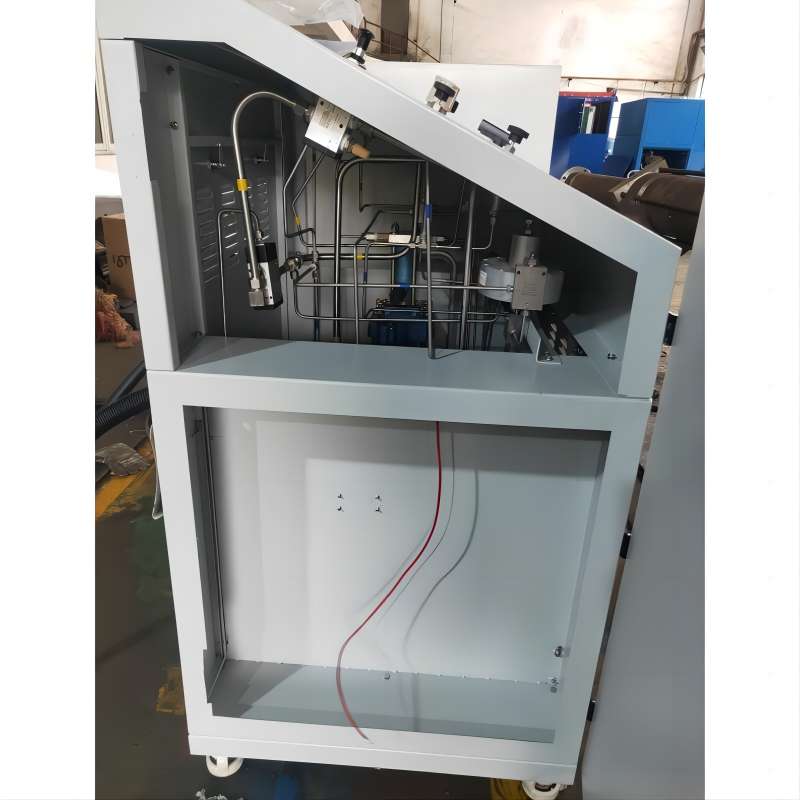

    • 35Mpa Hydrogen Booster

    Model: WY-350H-BJ0

    The main function of the hydrogen booster device is to boost low-pressure hydrogen to the required pressure value for the car (or Hydrogenation (hydrogen cylinder), which mainly includes a booster pump, high-pressure filter, pressure regulating valve, high-pressure control (including stop valve and unloading valve), pressure gauge (high and low-pressure gauge), etc.

    Share to

    Features

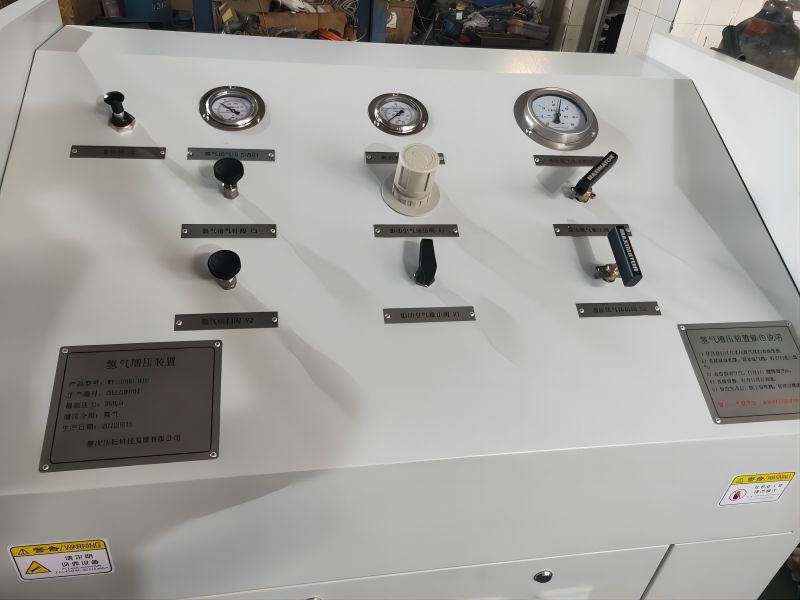

    • The control panel of the booster unit adopts a modular design, and the operation process is clear at a glance.
    • Equipped with two hydrogenation guns, TK16 and TK25 from WEH Company, one large and one small, which can hydrogenate cars and buses.
    • It has the function of automatic shutdown after pressurizing to the set pressure.
    • Take safety measures such as safety valves, emergency stop switches, manual unloading, and safety warnings.

    Equipment Schematic Diagram

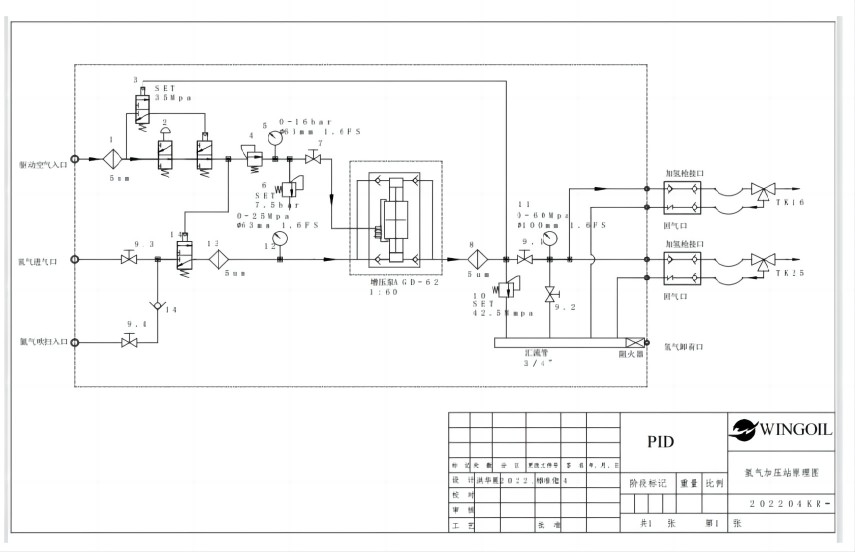

    35Mpa Hydrogen Booster Device Schematic Diagram

    Working Environment

    Ambient air temperature: -20-+60℃;

    Driving air: 1-8bar

    Technical Parameters

    1. Working medium: hydrogen;
    2. Driving mode: pneumatic;
    3. Maximum working pressure of high-pressure pump: 62Mpa;
    4. System set working pressure: 35Mpa;
    5. Maximum operating pressure of driving air: 0.8Mpa;
    6. Device interface:
      • Compressed air inlet: φ10 quick plug
      • Hydrogen inlet: W21.8-L
      • Nitrogen purge inlet: W21.8-L
      • Unloading port: G 1/2”
      • Hydrogenation gun 1: TK16
      • Hydrogenation gun 2: TK25
