Burst Pressure Test Equipment Dual Hydrostatic Test Pump System

这里可以自定义设置

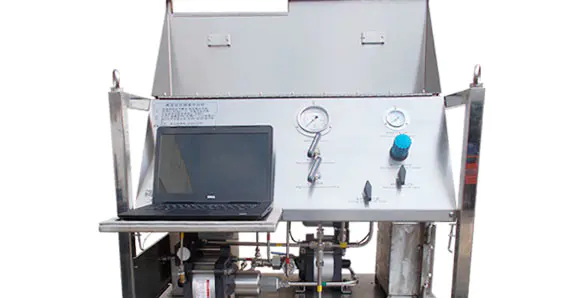

Burst Pressure Test Equipment Dual Hydrostatic Test Pump System

Data recording

High pressure testing

Hydraulic power unit

B站不支持收货地址
B站不支持库存规格
Model:
WY-1050W-J2
Model No.:
WY-1050W-J2
Key words:
Data recording, high pressure testing, mobile pressure test pump, pressure testing with water tank, water pressurization, hydraulic power unit, armored test pump, automatic pressure test, explosion proof test
参数暂无数据
多属性暂无数据
B站不支持优惠卷

Add success, do you want to check your shopping cart?

暂无分享
B站不支持产品保障
该产品后台详情无内容

Product Overview

The skid can be used for pressure test on the wellhead, underground and on the ground. The equipment uses compressed air as the power source to quickly press the test medium, and can display, print and save the pressure curve.

Product Features

这里可以自定义设置

●  Flow chart of boosting etched on the control panel surface of the booster unit.

  Adopts air-driven hydro pump as the boosting unit, which have pressure self-locking function and effectively avoid overpressure.

  Stainless steel material withstanding harsh conditions.

  The large-displacement low-pressure pump and the small-displacement high-pressure pump are configured to achieve functional control of different pressures, flows, and compression times.

  With digital remote recording, real-time data display monitoring, issuing experimental reports, historical data check functions.

  The electrical component interfaces are placed in the explosion-proof box.

  The uniquely designed rope-retractor structure enables the coiling of the pipeline to be more regular and at the same time preliminary cleaning.

Performance Data

Test medium

Clear water

Max output pressure of the low pressure pump

8Mpa

Max output pressure of the high pressure pump

150Mpa

Max operating pressure of the system

105Mpa

Max air pressure

0.8Mpa

Explosion-proof grade

ExdIIBT6Gb

Product Connection

这里可以自定义设置

Drive air inlet

G1/2M

High pressure outlet

G1/4M

Water injection inlet

G11/2

Overflow

G1/2 (float valve can be installed)

Power interface

220V two-wire system

Data line interface

USB2.0

Product Construction

Panel

Stainless steel

Explosion-proof cabin

Stainless steel

Pressure gauge

Stainless steel

Valve

Stainless steel

Tube

Stainless steel

Connector

Stainless steel

Hydraulic cylinder

Anodized aluminium

Piston

Stainless steel

Pump head

Stainless steel

Low Pressure Pump_Hydraulic Pressure Static Conditions(@7bar)

Air pressure(bar)

0

1

2

3

4

5

6

7

Hydraulic pressure(bar)

0

10

20

30

40

50

60

70

Output flow(L/min)

18

17

16.5

14

12

7

6

5

High Pressure Pump_Hydraulic Pressure Static Conditions(@7bar)

Air pressure(bar)

0

1

2

3

4

5

6

7

Hydraulic pressure(bar)

0

150

300

450

600

750

900

1050

Output flow(L/min)

1.4

1.3

1.25

1.15

1.0

0.6

0.55

0.35

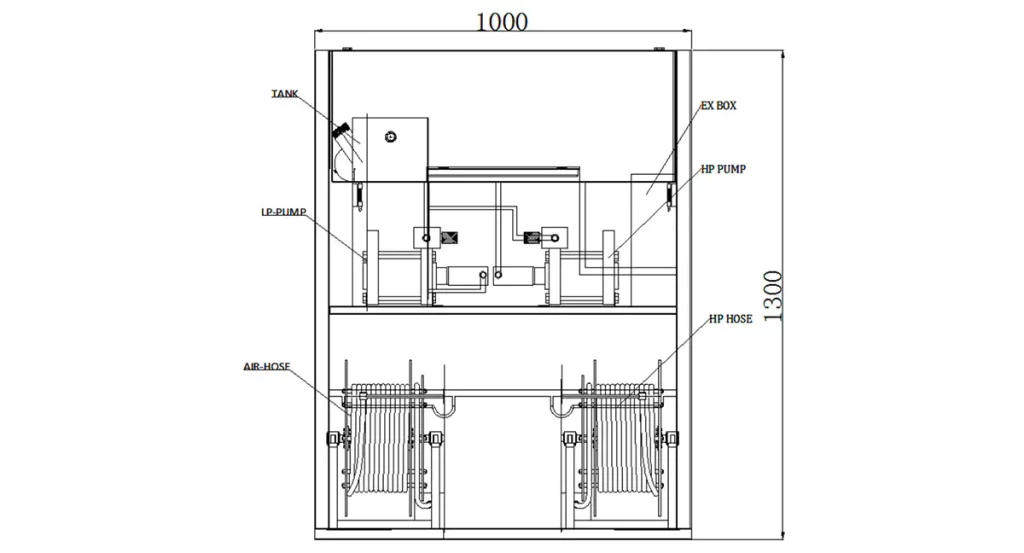

General Layout Drawing
