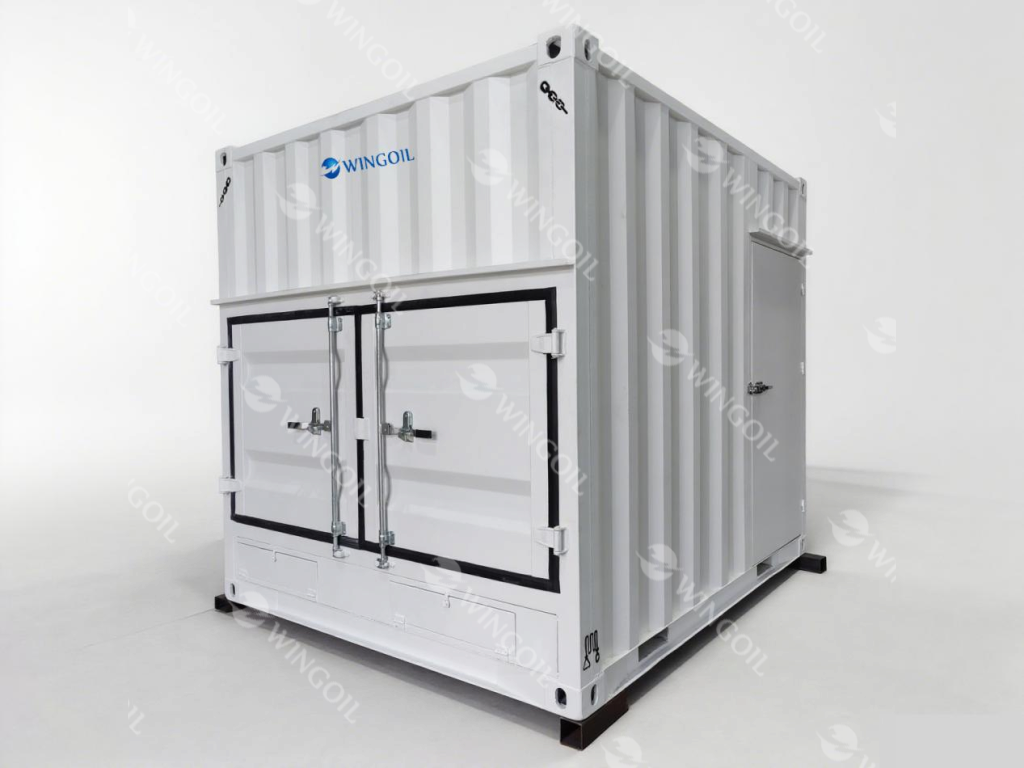

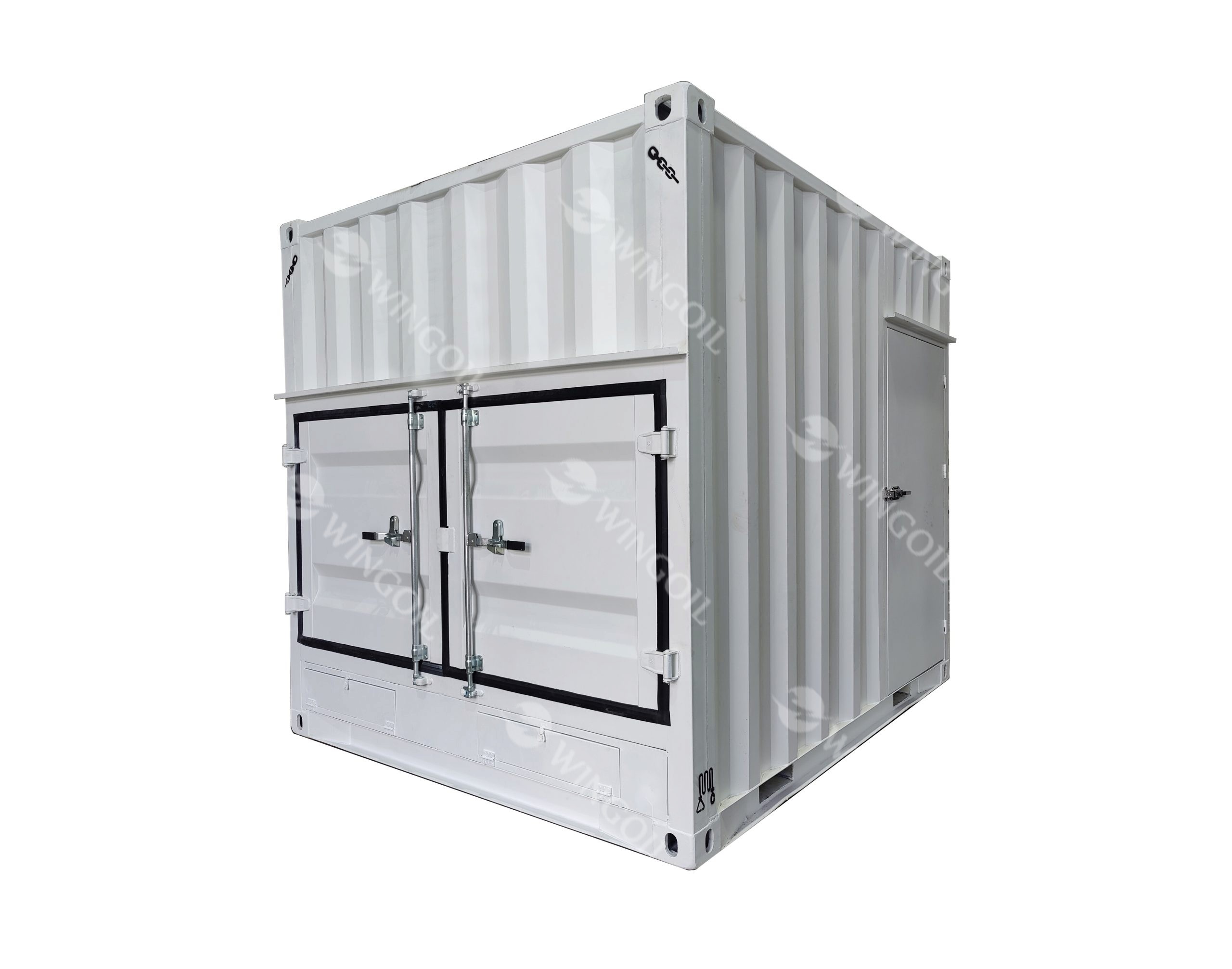

Containerized Pressure Testbay Room

Overview

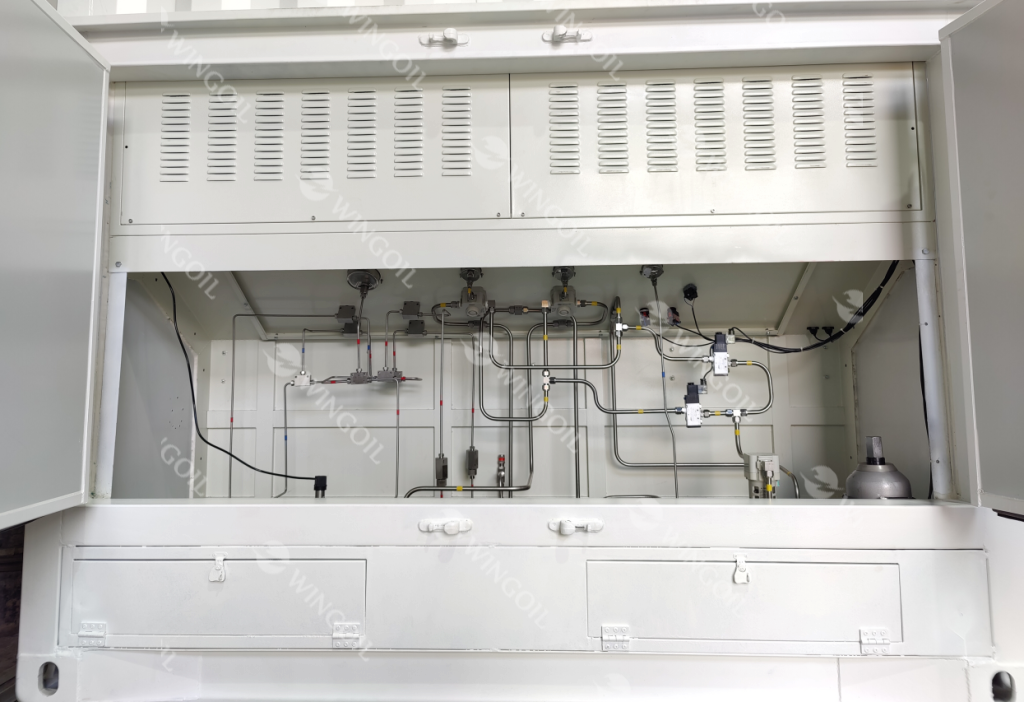

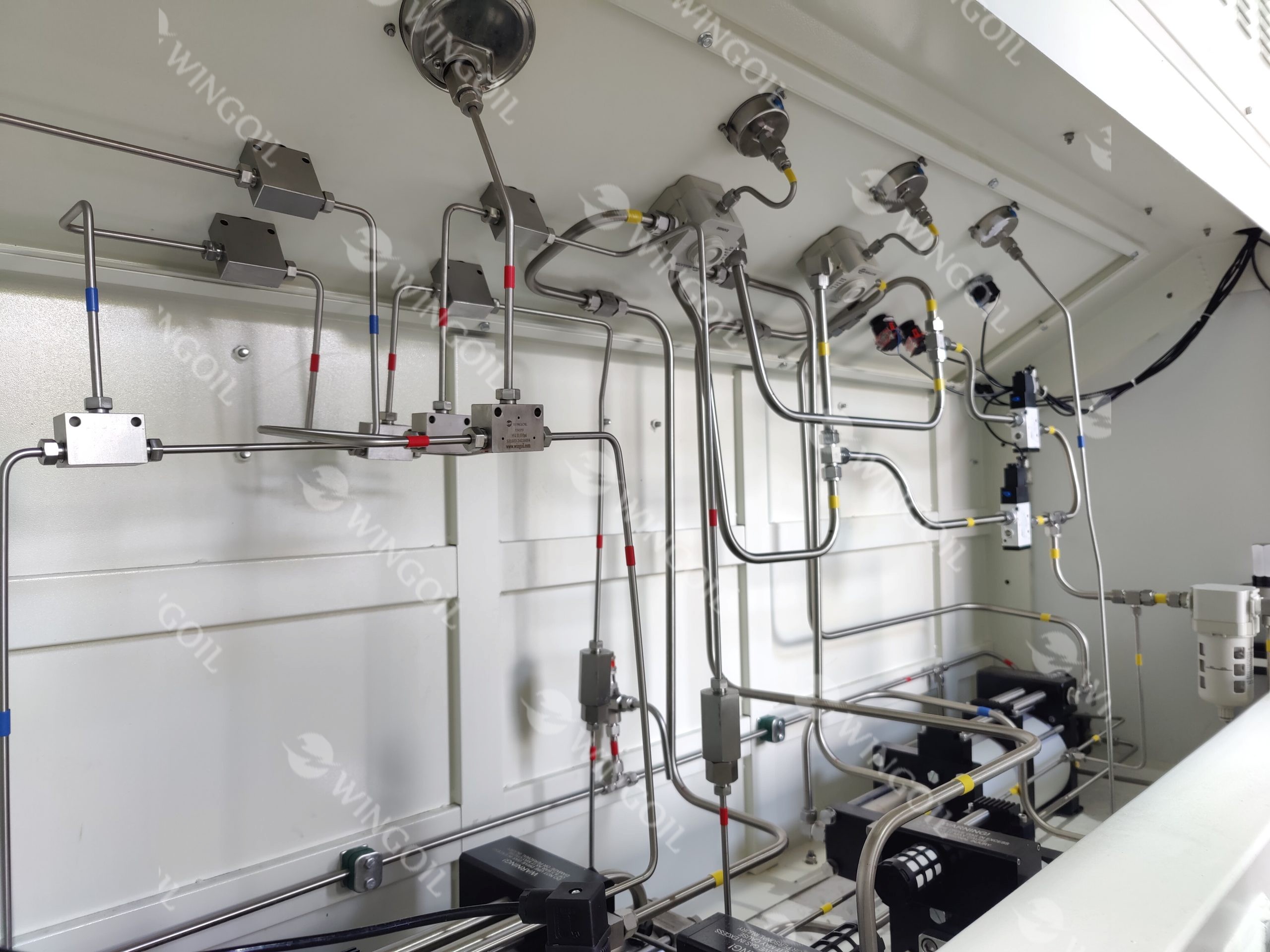

There are air-driven liquid pump and air-driven gas pump in the equipment, which uses compressed air as the power source to drive the plunger pump to operate. It can provide relatively stable pressure and flow rate. At the same time, no additional energy consumption is required during the pressure holding process, and there is no overshoot during the pressurization process.

During the workpiece testing process, real-time data of the test process can be recorded through the pressure transmitter and PLC.

Model: WY-24000W-TJ1

• The pressurization is stable and reliable. The equipment uses air-driven liquid pump and air-driven gas pump, which can quickly complete the pressurization operation.

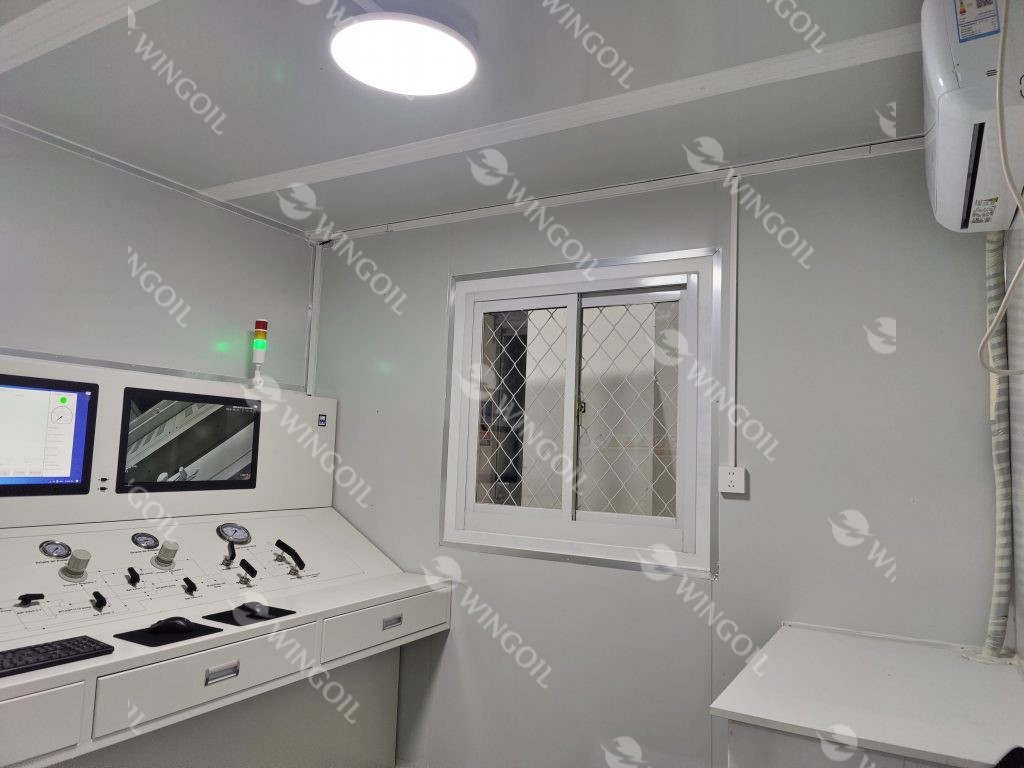

• The operation is simple, and you can quickly become familiar with the equipment operation method and mechanism through the panel flow chart and labels.
• Safe to use, the equipment uses 316SS as the main pressure-bearing components.
• With data recording, the pressure parameters of the test process can be recorded through pressure sensors and PLC.
• Strong corrosion resistance, the equipment and contact components are made of stainless steel.
• Low energy consumption, no additional energy is required during the pressure holding process.
