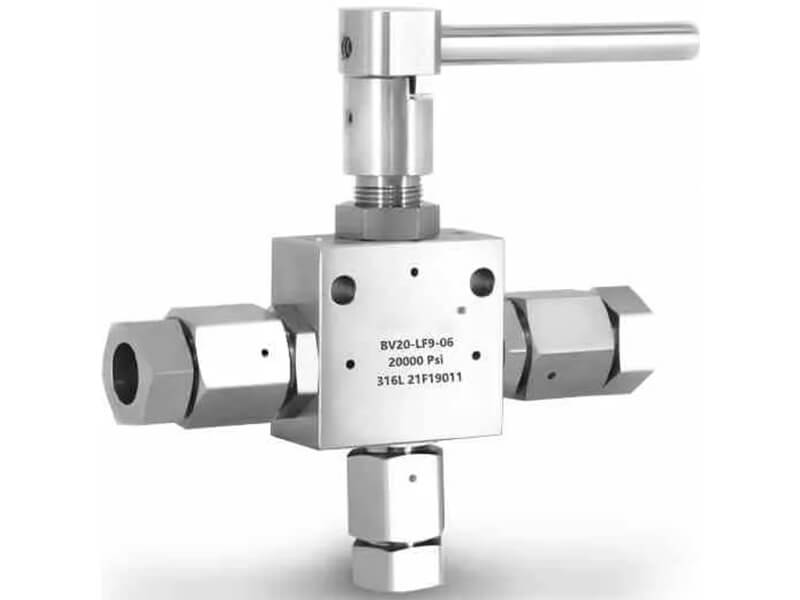

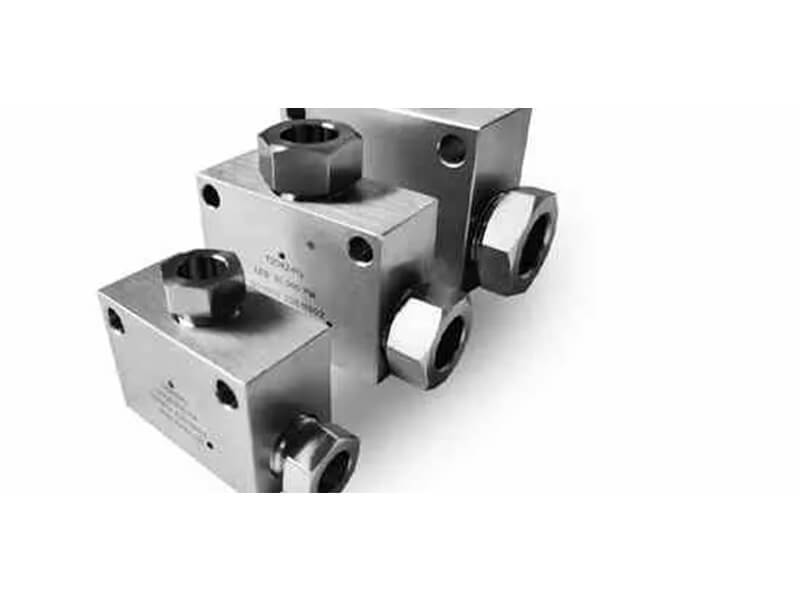

High Pressure Ball Valve
- Integral trunnion stem, ideal for key applications;
- Two-way and three-way are optional; Valve
- PEEK valve seat can provide excellent chemical adaptability, high temperature resistance, wear resistance, and scratch resistance;
- Full flow passage reduces pressure drop;
- Made of cold-worked 316 stainless steel;
- Operating temperature range: – 17.8 ° C to 204 ° C (0 ° F to 400 ° F);
- A variety of O-rings are available;
- Various interface types can be selected;
Share to
Main features of High Pressure Ball Valve
STK needle valve provides maximum safety and reliability. Even under adverse operating conditions, the valve can be installed in any direction and can effectively seal gas and liquid media.
The valve needle and valve stem are non-rotating. Therefore, the service life and reliability of the valve are increased. Pressure parts are made of high-quality corrosion-resistant stainless steel.
All needle valves record the reliability of the serial number. Provide complete traceability of all pressure retaining parts.
Maximum working pressure: 20000 psi (1379 bar)
Standard working temperature: – 17.8 ℃~204 ℃ (0F~400F)
316 cold-worked stainless steel structure PEEK valve seat has excellent chemical resistance,
Heat resistance and wear resistance Full flow path minimizes pressure drop and provides multiple pipe end and pipe end connections
Parameters of High Pressure Ball Valve
1. The pressure of high pressure ball valve
| pressure | valve pattern | catalog number | O.D. Tube | orifice | dimensions(mm) | valve panel | block thick-ness | ||||||||||
| 10kpsi | Straight needle valve | hs10111-k | 1/8″ | 2.7mm | 111 | 50 | 40 | 6 | 10 | 30 | M5 | 63.5 | 31.5 | 45 | / | 16.5 | 20 |
| hs10121-k | 1/4″ | 3.2mm | 107 | 50 | 40 | 6 | 10 | 30 | M5 | 63.5 | 31.5 | 45 | / | 16.5 | 20 | ||
| Right-angle needle valve | hs10112-k | 1/8″ | 2.7mm | 111 | 50 | 31.5 | 6 | 10 | 30 | M5 | 63.5 | 31.5 | 45 | 22.5 | 16.5 | 20 | |
| hs10122-k | 1/4″ | 3.2mm | 123 | 62 | 31.5 | 6 | 10 | 30 | M5 | 63.5 | 31.5 | 45 | 22.5 | 16.5 | 20 | ||
| Three-way two-control needle valve | hs10115-k | 1/8″ | 2.7mm | 198 | 80 | 40 | 6 | 10 | 30 | M5 | 63.5 | / | 45 | 31.5 | 16.5 | 20 | |
| hs10125-k | 1/4″ | 3.2mm | 203 | 85 | 42.5 | 6 | 10 | 30 | M5 | 63.5 | / | 45 | 31.5 | 16.5 | 20 | ||
2. The type of high pressure ball valve
| HS | 10 | 1 | 2 | 1 | K | |
| control type | working pressure | common code | outer diameter of connecting pipe | vavle type | link from | valve application |
| HS manual needle valve | 10 10000psi | none | 1 1/8″ O.D. | 1 direct connection | K single ferrule | high temperature valve |
| 2 stright angle | low temprature valve | |||||
| 3 three ways (one in and two out) | ||||||
| 4 three ways (one in and two out) | ||||||
| 5 three ways two control valves | ||||||
3. The model of high pressure ball valve
| Model | Link type and size | Drift diameter | CV | Rated pressure |
| BV10-MPF12-13- | MPF12 | 12.7 | 10.2 | 10000 |
| BV10-MPF16-13- | MPF16 | |||
| BV10-FNPT12-13- | 3/4 Female NPT | |||
| BV10-FNPT16-13- | 1 Female NPT | |||
| BV10-MPF12-13-3- | MPF12 | 4.4 | ||
| BV10-MPF16-13-3- | MPF16 | |||
| BV10-FNPT12-13-3- | 3/4 Female NPT | |||
| BV10-FNPT16-13-3- | 1 Female NPT | |||
| BV15-LPF2-06- | LPF2 | 2.4 | 0.26 | 15000 |
| BV15-LPF4-06- | LPF4 | 3.25 | 0.26 | |
| BV15-LPF6-06- | LPF6 | 6.35 | 1.51 | |
| BV15-LPF8-06- | LPF8 | |||
| BV15-FNPT2-06- | 1/8 Female NPT | |||
| BV15-FNPT4-06- | 1/4 Female NPT | |||
| BV15-FNPT6-06- | 3/8 Female NPT | |||
| BV15-FNPT8-06- | 1/2Female NPT | |||
| BV15-LPF-10- | LPF8 | 9.5 | 3.51 | |
| BV15-FNPT4-10- | 1/4 Female NPT | |||
| BV15-FNPT6-10- | 3/8 Female NPT | |||
| BV15-FNPT8-10- | 1/2 Female NPT | |||
| BV15-LPF2-05-3- | LPF2 | 2.4 | 0.13 | |
| BV15-LPF4-05-3- | LPF4 | 3.25 | 0.23 | |
| BV15-LPF6-05-3- | LPF6 | 4.8 | 0.5 | |
| BV15-LPF8-05-3- | LPF8 | |||
| BV15-FNPT2-05-3- | 1/8 Female NPT | |||
| BV15-FNPT4-05-3- | 1/4 Female NPT | |||
| BV15-FNPT6-05-3- | 3/8 Female NPT | |||
| BV15-FNPT8-05-3- | 1/2 Female NPT | |||
| BV15-LPF8-10-3- | LPF8 | 8.3 | 2.1 | |
| BV15-MPF6-10-3- | MPF6 | 5.2 | 0.81 | |
| BV15-MPF9-10-3- | MPF9 | 7.9 | 1.9 | |
| BV15-MPF12-10-3- | MPF12 | 8.3 | 2.1 | 15000 |
| BV15-FNPT4-10-3- | 1/4 Female NPT | |||
| BV15-FNPT6-10-3- | 3/8 Female NPT | |||
| BV15-FNPT8-10-3- | 1/2 Female NPT | |||
| BV20-MPF4-06- | MPF4 | 0.11(2.8) | 0.36 | 20000 |
| BV20-MPF6-06- | MPF6 | 0.2(5.2) | 1.23 | |
| BV20-MPF9-06- | MPF9 | 0.25(6.35) | 1.15 | |
| BV20-HPF4-06- | HPF4 | 0.094(2.4) | 0.26 | |
| BV20-HPF6-06- | HPF6 | 0.125(3.2) | 0.47 | |
| BV20-HPF9-06- | HPF9 | 0.19(4.8) | 1.05 | |
| BV20-MPF-6-06- | MPF6 | 0.2(5.2) | 1.23 | |
| BV20-MPF-9-10- | MPF9 | 0.31(7.9) | 2.93 | |
| BV20-MPF12-10- | MPF12 | 0.375(9.5) | 3.51 | |
| BV20-MPF4-05-3- | MPF4 | 0.11(2.8) | 0.17 | |
| BV20-MPF6-05-3- | MPF6 | 4.8 | 0.5 | |
| BV20-MPF9-05-3- | MPF9 | |||
| BV20-HPF4-05-3- | HPF4 | 0.094(2.4) | 0.26 | |
| BV20-HPF6-05-3- | HPF6 | 0.125(3.2) | 0.47 | |
| BV20-HPF9-05-3- | HPF9 | 0.19(4.8) | 0.5 |
4. The control type of BV ball valve
| Control type | Working pressure | Link size | Drift diameter | Medium flow pattern | Body material |
| BV ball valve | 10 10000psi | LPF2 1/8″O.D. | Fof 2-way | 无 Straight | 316 316ss |
| 15 15000psi | LPF4 1/4″O.D. | 06 1/4″ | 3 3-Way | ||
| 20 20000psi | MPF6 3/8″O.D. | 10 3/8″ | |||
| MPF9 9/16″O.D. | 13 1/2″ | ||||
| MPF12 3/4″O.D. | Fof 3-way | ||||
| MPF16 1″O.D. | 05 3/16″ | ||||
| HPF4 1/4″O.D. | 10 3/8″ | ||||
| HPF6 3/8″O.D. | 13 1/2″ | ||||
| HPF9 9/16″O.D. | |||||
| FNPT2 1/8″Female NPT | |||||
| FNPT4 1/4″Female NPT | |||||
| FNPT6 3/8″Female NPT | |||||
| FNPT8 1/2″Female NPT | |||||
| FNPT12 4/3″Female NPT | |||||
| FNPT16 1″Female NPT |
