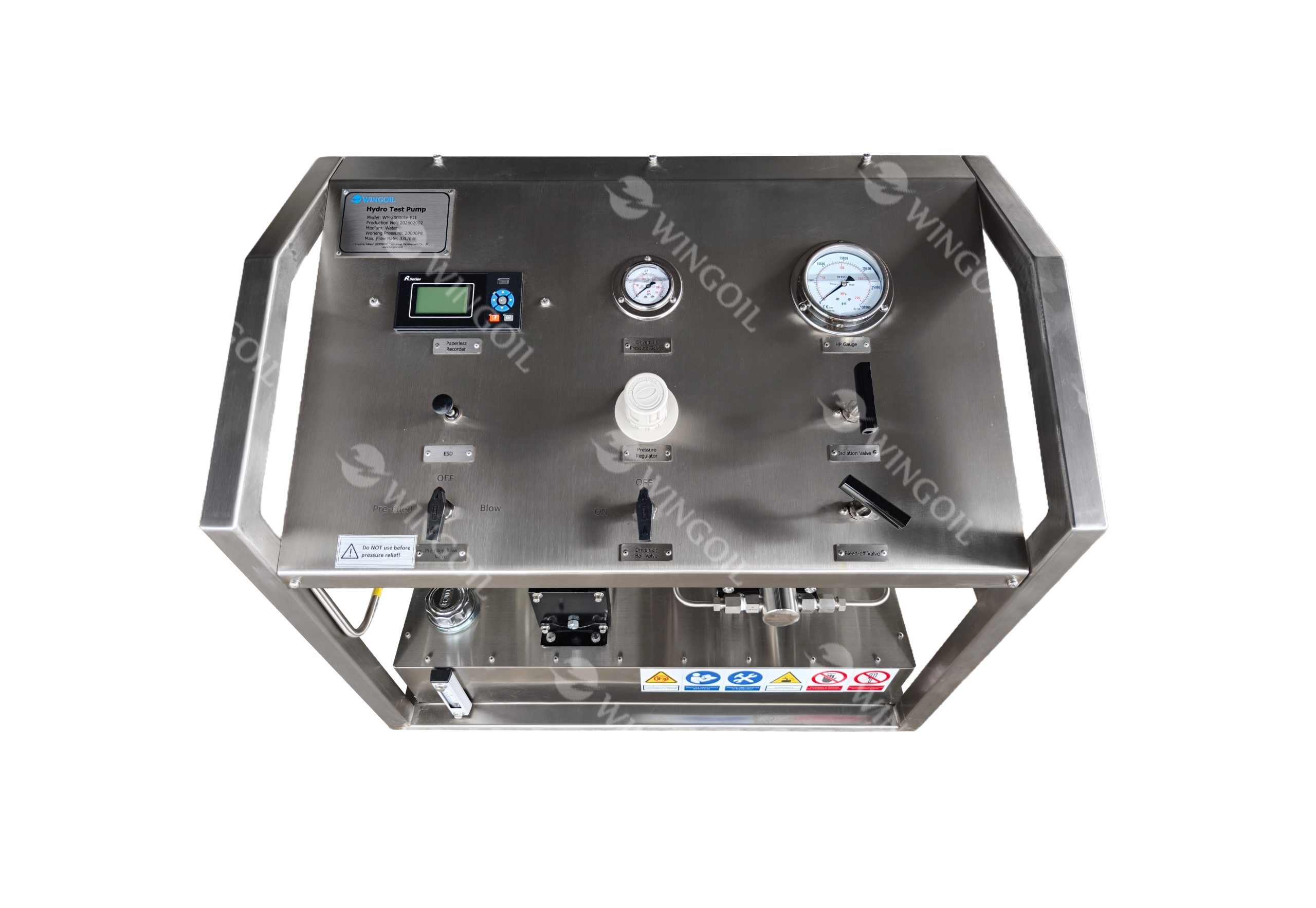

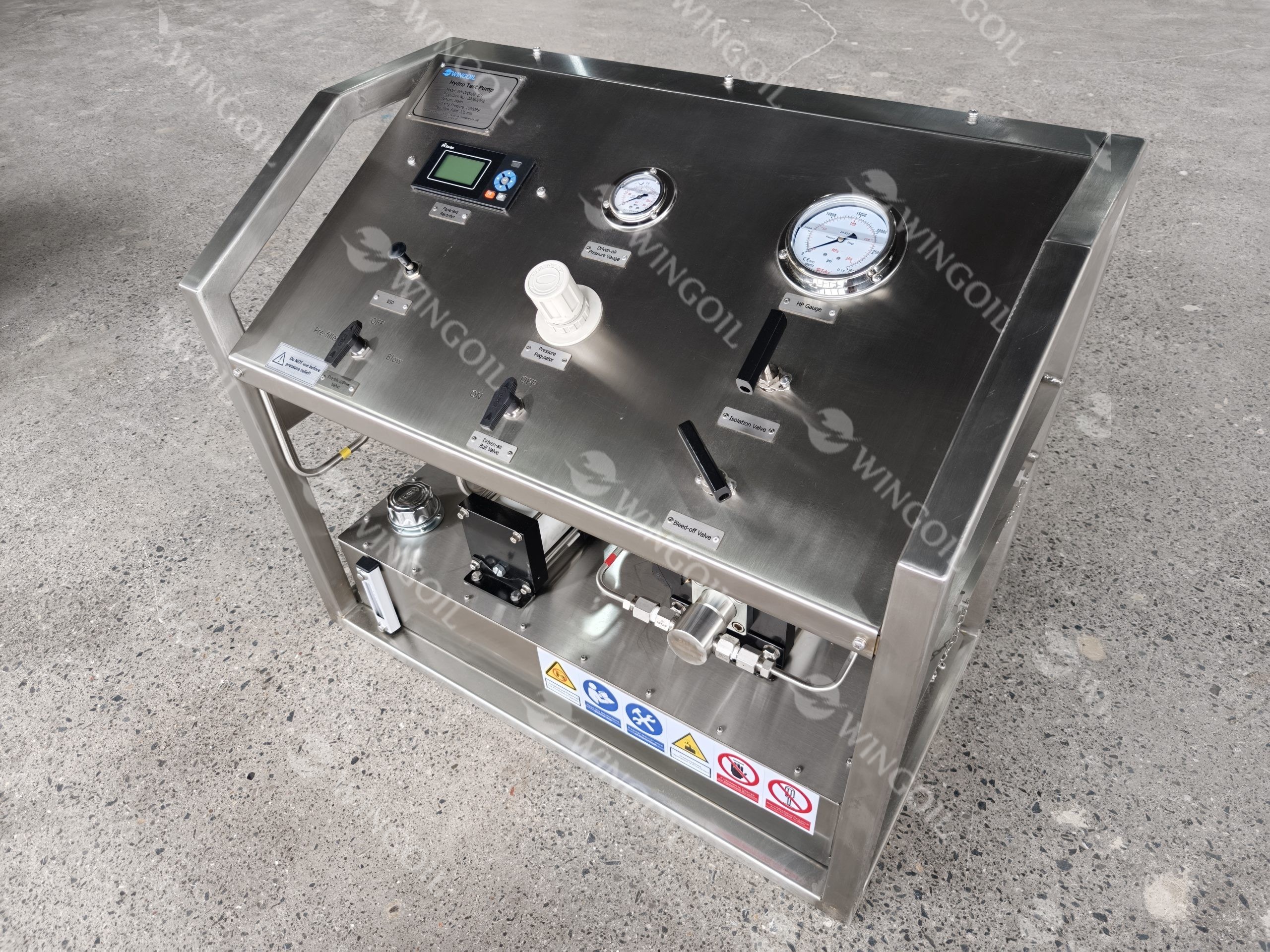

Portable Hydro Test Pump Unit with Built-in Paperless Recorder
- Model: WY-20000W-BJ1
- The built-in paperless recorder is a sophisticated component that replaces traditional chart recorders, offering a digital means of capturing, storing, and analyzing test data. These recorders are equipped with high-resolution displays and advanced software, enabling the precise measurement and graphical representation of pressure over time. This digital approach to data recording not only enhances the accuracy of test results but also facilitates easier data management and compliance with regulatory requirements.
Share to
Overview
WY-20000W-BJ1 Portable Hydro Test Pump Unit with Built-in Paperless Recorder is designed to be a self-sufficient system, capable of generating the high pressures needed for hydrostatic testing while simultaneously recording and storing test data. The unit typically consists of a hydraulic pump, a pressure generator, a control system, and the paperless recorder, all housed within a durable, portable enclosure. The hydraulic pump is the heart of the system, responsible for generating the pressure required for the test. The control system allows operators to set desired pressure levels, monitor the test in real-time, and manage the data recording process.
Model: WY-20000W-BJ1
with Built-in Paperless Recorder
- The equipment uses a paperless recorder and pressure sensor to display and record data.
- It uses low-pressure compressed air as the boost power source, which is convenient, safe and environmentally friendly.
- The equipment adopts a stainless steel 304 frame structure.
- The equipment has a pressure self-locking function, that is, under the condition of set driving air pressure, the outlet pressure is constant, there is no overshoot, and the pressure maintenance does not consume energy.
- The device provides a dual-scale shock-proof pressure gauge display.
- The layout of high-pressure pipelines inside the unit is standardized, and the pressure grades of pipelines are distinguished by colors.
Model: WY-20000W-BJ1
with Built-in Paperless Recorder
| Ambient temperature | 0 to 60℃ |
| Driven air supply | 3 to 8 bar |
| Testing medium | Clean water |
| Max. Working outlet pressure | 20000psi |
| Max. flow rate | 33.67L/min |
| Max.driven-air operating pressure | 30000psi |
| Rated operating pressure of high pressure valve | 30000psi |
| Compressed air inlet | 1/2″ NPT(F) |
| High-pressure outlet | 1/4” NPT(F) |
| High-pressure outlet quantity | 1 PC |
| Water tank volume | 15L |
| Dimension | 950*550*800 mm |
————————————————————————————————————————————————————————————————————————————————————————————————————————————————————
