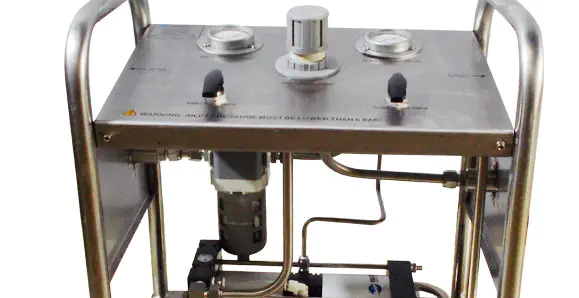

Overview
This is a portable pump device that can be used for gas injection, gas pressure test, gas pressurization, gas amplification, etc. It has a compact structure and the overall no-load design weight is only 50kg.
The body, valves and pipelines are made of stainless steel and can withstand harsh environmental conditions. This set of equipment is suitable for gas media, used in factories, chemicals, construction, plumbing, petroleum, coal, smelting, shipbuilding and other industries.
Features
- AB02 gas amplifier is a patented product with independent intellectual property rights, which can double the gas, output flow rate up to 513LN/min, less exhaust gas and low energy consumption.
- Pressure self-locking function, under the condition of setting the driving air pressure, the output pressure is constant.
- Dual scale shockproof pressure gauge display.
- Portable, lightweight, easy to transport and move.
Pressure ratio | 1:2 |
Test medium | Oil or water |
Max output pressure | 12 bar / 174 psi |
Max flow rate | 513LN/min@7bar driven air |
Min air inlet pressure | 1 bar / 14 psi |
Max air pressure | 6.9 bar / 100 psi |
Dimension | 500L*330W*550H (mm) |
Valve rated pressure | 400 bar / 6000 psi |
Pipe rated pressure | 70 bar / 1000 psi |
Connection
Drive air inlet | 1/2″ NPT (F) |
Gas outlet | 1/2″ NPT (F) |

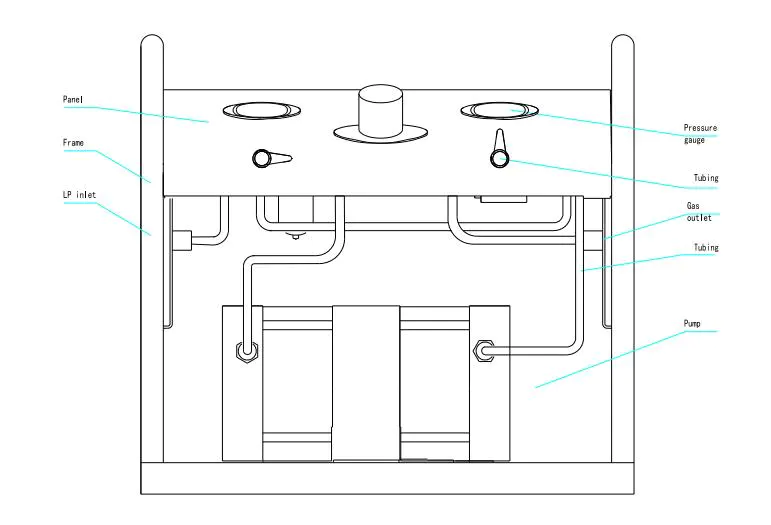

Construction
Frame and panel | Stainless steel |
Pressure gauge | Stainless steel |
Valve | Stainless steel |
Tube | Stainless steel |
Connector | Stainless steel |
Hydraulic cylinder | Anodized aluminium |
Piston | Stainless steel |
Pump head | Stainless steel |
————————————————————————————————————————————————————————————————————————————————————————————————————————————————————
