Boosting System Device

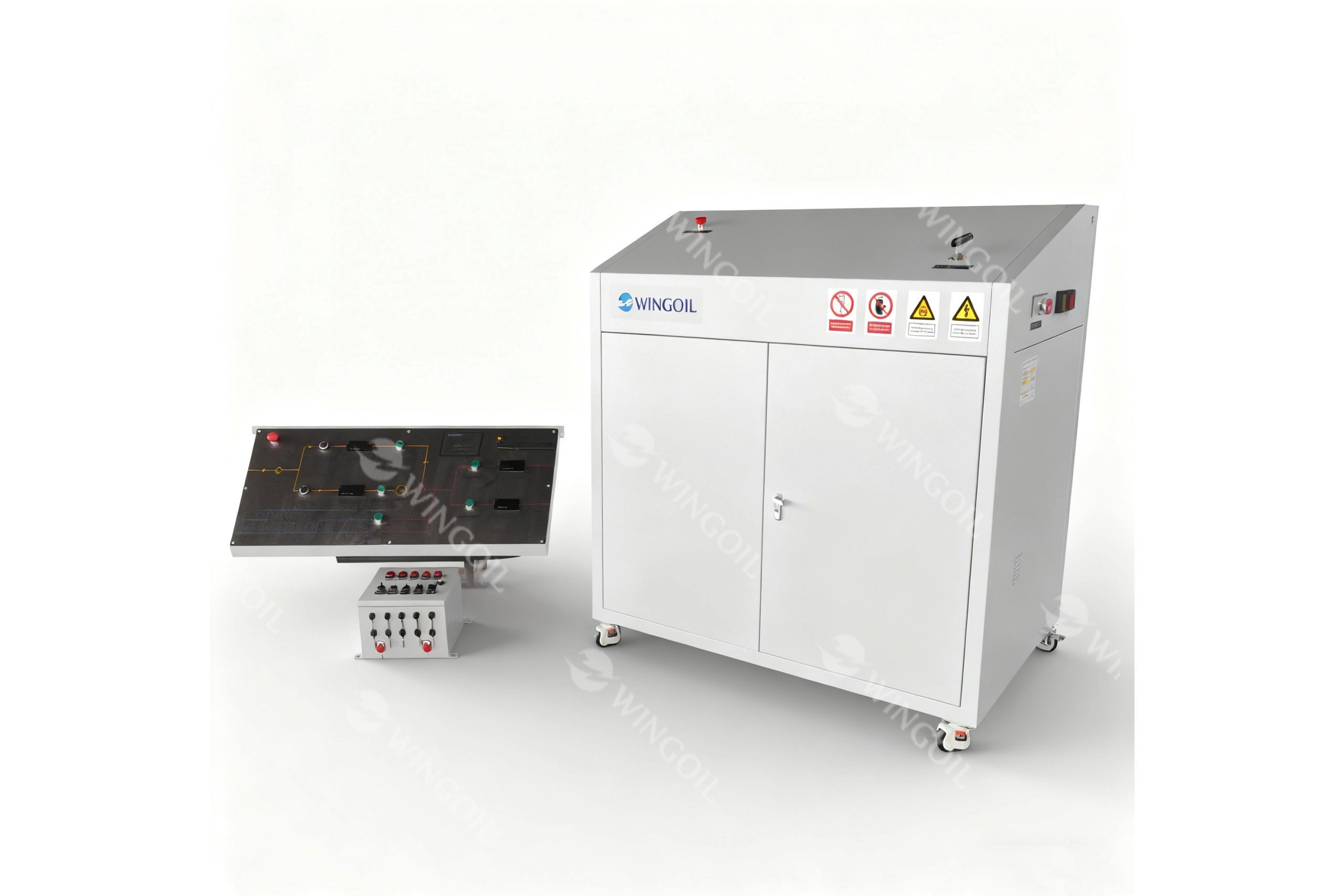

- Model: WY-30000W-GJ1
- All operational components of the equipment are centralized on the console, enabling users to perform all pressure test procedures after connecting the test workpiece.
- The booster cabinet houses the booster pump and control components, with an emergency stop switch and manual pressure relief valve installed on the panel for emergency operations.
- During workpiece testing, operators can initiate or halt the pressurization process of the equipment enclosure via the start/stop buttons on the control panel.
Share to
Overview
The equipment consists of two air-driven hydraulic pumps powered by compressed air. These pumps operate in series, ensuring stable pressure and flow rates. They consume no additional energy during pressure maintenance and eliminate overshoot issues during the pressurization phase.
The equipment provided mainly includes two parts, pressure testing cabinet and manual control panel.
Feature
- The pressurization is stable and reliable. The equipment uses air-driven liquid pump and air-driven gas pump, which can quickly complete the pressurization operation.
- The operation is simple, and you can quickly become familiar with the equipment operation method and mechanism through the panel flow chart and labels.
- Safe to use, the equipment uses SS as the main pressure-bearing components.
- Strong corrosion resistance, the equipment and contact components are made of stainless steel.
- Low energy consumption, no additional energy is required during the pressure holding process.
Model: WY-30000W-GJ1
| Test medium | Clean water or Ethylene Glycol |
| Max. output pressure | 30000psi |
| Max. output flow rate of water pressure test | 29.4 L/min |
| Power supply | Voltage (120~240V), Frequency (50~60Hz) |
| Ambient air temperature | 0 to +40℃ |
| Driving air | 1-7bar/14.5-101.5 psi |
| Size of booster cabinet | 1500L*800W*1600H (mm) |
| Size of operation console | 1050L*400W*370H (mm) |
————————————————————————————————————————————————————————————————————————————————————————————————————————————————————
