Hose Pressure Testing Equipment Air Compressor Skid

Model: WY-10AIR-DJ

Share to

Product Overview

The electric power unit integrates an electric air compressor, a toolbox, and a gas source treatment on the body. The biggest advantage of the device is that it can output high-quality compressed air, and does not require a gas storage tank to minimize the size of the device.

Product Features

Hose Pressure Testing Equipment Air Compressor Skid

●  A closed-loop output system, automatically discharging the pressure and saving energy.

●  Multi-outlet output, suitable for multiple workpieces.

●  Portable structure, easy transportation and hoisting.

●  Stable output flow.

Performance Data

Model

WY-10AIR-DJ-A5.5

WY-10AIR-DJ-A11

Nominal volume flow

m3/min(CFM)

1

2

Rated exhaust pressure

bar(psi)

8

8

Working pressure range

bar(psi)

3-8

3-8

Noise power level

71

75

L*W*H(mm)

1200×700×1500

1350×700×1500

Weight

200kg

260kg

Rated power

5.5

11

Power

380AC 50hZ

Rotating speed

1440

Air inlet

G1/2

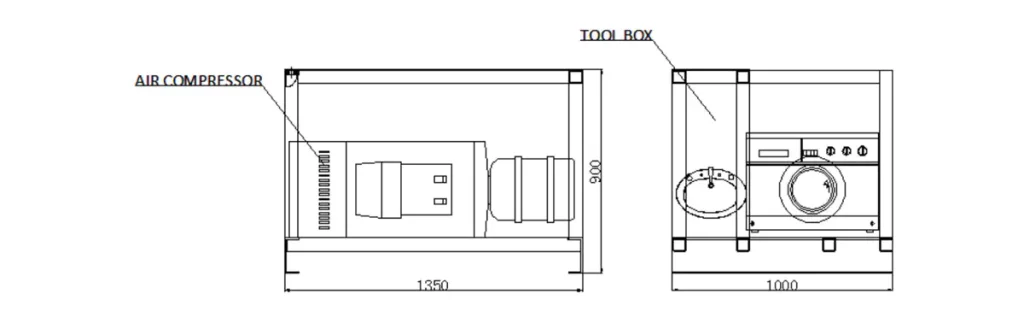

General Layout Drawing

Hose Pressure Testing Equipment Air Compressor Skid
