Manual Tools
- Wingoil provides a complete manual tool used for high-pressure applications, which can manually complete the inner hole chamfering, cylindrical teeth, and steel die.
- The size range can be machined in the 1/8 “9/16”, convenient installation, commissioning, and repair.
- The WE tool is the only super pressure tool manufacturer in China, our products can replace foreign products perfectly.
Share to

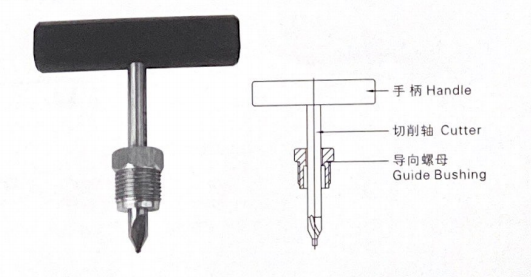

Reseating Tools
Part No.For Turing
Size RT21/8″O.D. RT41/4″O.D.RT63/8″O.D.RT99/16″O.D.
Reseating Tools is used to repair old or damaged valve or equipment connector.

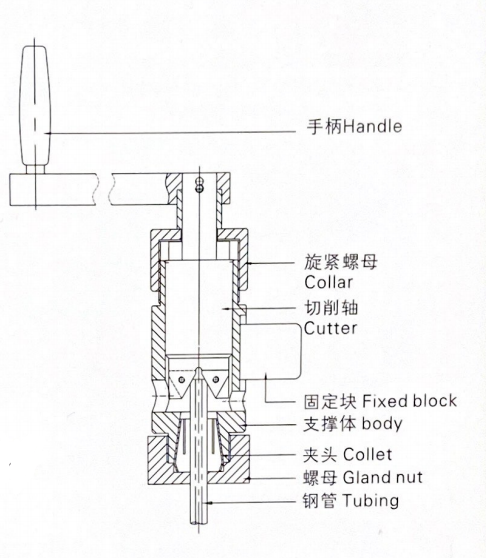

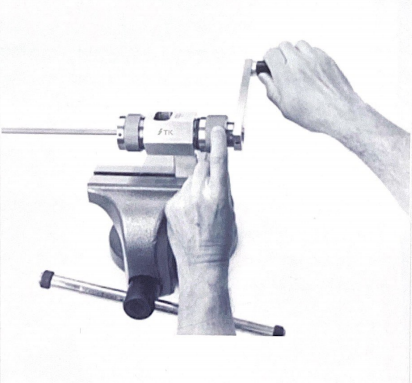

Coning Tools
| Part No. | For Turing Size |
| CT2 | 1/8″O.D. |
| CTA | 1/4″O.D. |
● Coning Tools can process Tubing taper, angle of about 57° ~59°.
● Chuck, knife can be replaced, the same tools can be process-ed 1/4″,” 3/8″, 9/16 Tubing.
● Adjusting nut, can adjust the depth of processing.

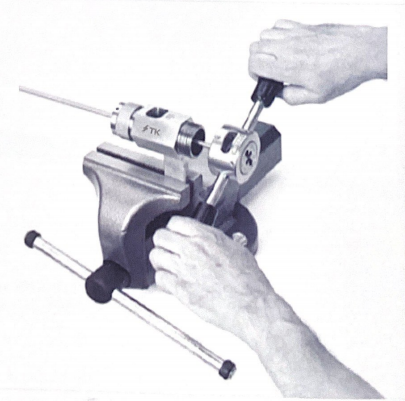

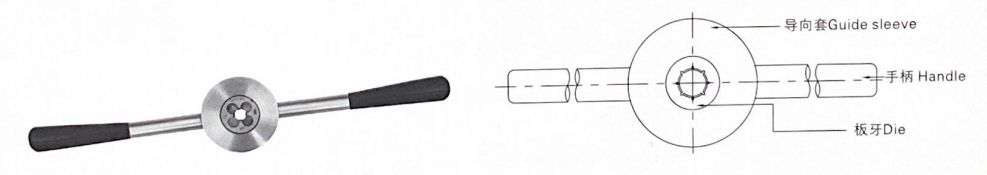

Threading Tools
| Part No. | For Turing Size | Threading Die |
| TT2 | 1/8″O.D. | 1/8″-40LH |
| TT4 | 1/4″O.D. | 1/4″-28LH |
| TT6 | 3/8″O.D. | 3/8″-24LH |
| TT9 | 9/16″O.D. | 1/4″-28LH |
● Threading Tools can be threaded manual by making L.H. screw, is an essential tool for high pressure Tubing,
● Design of the guide sleeve, to ensure the concentricity of processing.

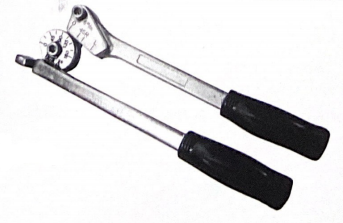

Bending Tools
The High-Pressure tubing connection is available for 1/8″, 1/4″, 3/8″, and 9/16″ O.D. tubing.
————————————————————————————————————————————————————————————————————————————————————————————————————————————————————
