    • Nitrogen Booster Unit

    • Model: WY-400N/30-J0
    • It’s available in various models, each designed to meet specific pressure and flow rate requirements. The units can be customized to suit specific industry needs, and they are designed to operate in harsh environments, making them ideal for use in a wide range of applications.
    Download the Operation Manual

    Share to

    Overview

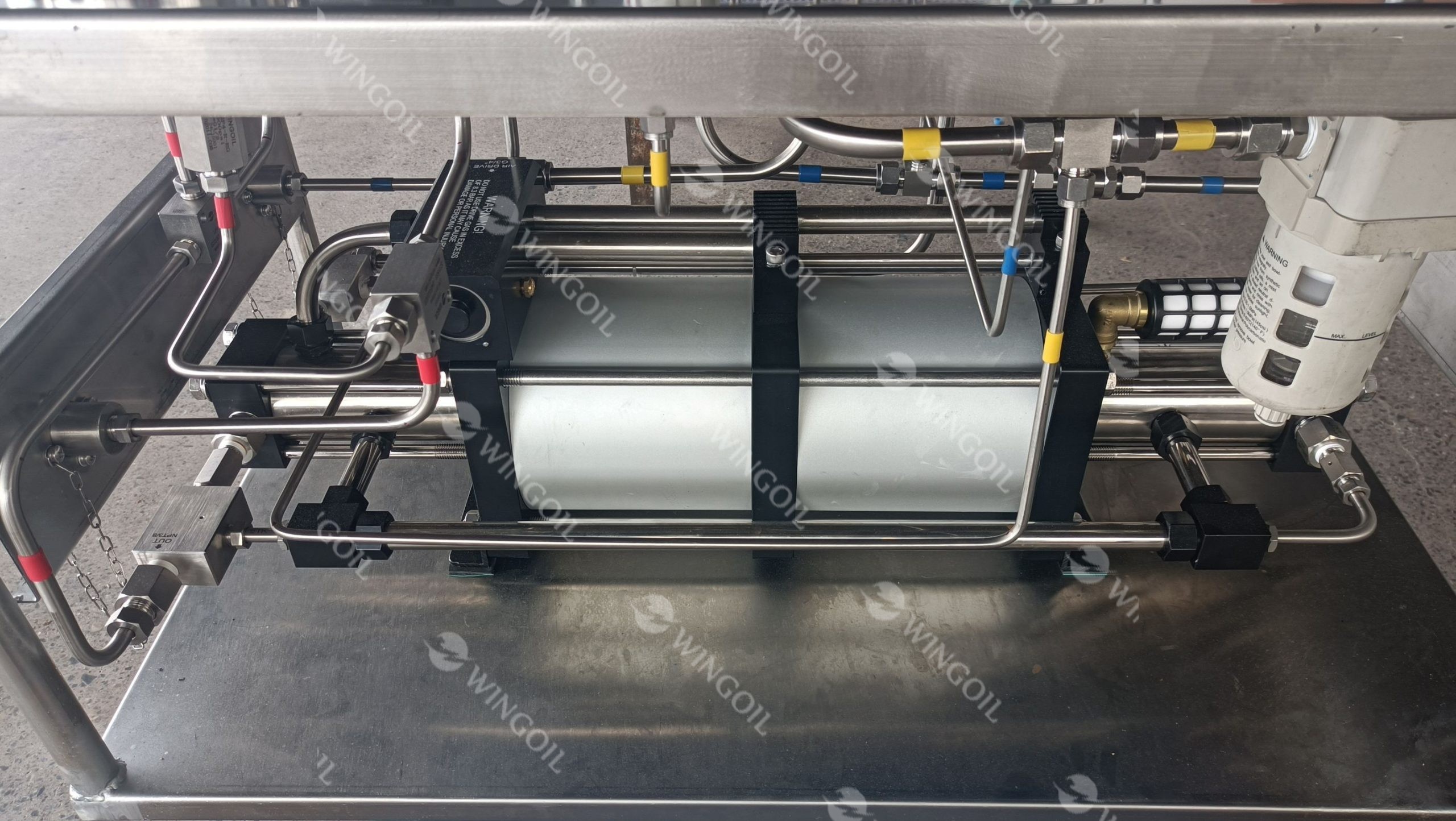

    It’s a set of customized air-driven booster system for air and nitrogen based on detailed requirements. The equipment structure is a small skid type, which has the characteristics of high pressure, large flow rate and low flow rate. The high pressure overflow part of the equipment is made of stainless steel to adapt to various harsh environments.

    The equipment mainly consists of Booster Pump, Pressure Regulator, Air Filter, Pressure Gauge, N2 Ball Valve, HP Check Valve, Air Pipelines, and inlet & outlet interface, etc.

    Characteristics

    • It provides dual scale shock-absorbing pressure gauge display.
    • With centralized control panel, which is easy to observe and operate.
    • It has a pressure self-locking function, which means that under the condition of adjusting the driving air pressure, the outlet pressure remains constant but does not rush.
    • Compressed air is used as the boosting power source for the equipment, while nitrogen is used as the medium for high-pressure boosting. The nitrogen inlet pressure value is between 30 and 60 Bar.

    Model: WY-400N/30-J0

    Nitrogen Booster Unit - 1
    Nitrogen Booster Unit-Schematic Diagram

    Model: WY-400N/30-J0

    Ambient temperature0 to 60℃
    Power supplyNo
    Driven air pressure3 to 8 bar
    Nitrogen inlet pressure30 to 60 Bar

    Testing mediumGas / Nitrogen
    Max. operation pressure539 bar / 8000 psi
    Max. flow rate327NL/min
    Max. driven-air operating pressure10 bar / 145 psi
    Nitrogen inlet pressure30 to 60 Bar
    Pipeline usage pressure600 bar / 8700 psi
    Dimension900L*500W*550H (mm)

    Connector

    Drive air inletG1/2″ (F)
    Nitrogen inlet interface1/2″ NPT (F)-with quick pull connector 1/2″ NPT
    High pressure outlet3/8″ NPT (F)
    High pressure outlet quantity3/8″ NPT (F) for 1 piece
    Pressure relief outlet quantity3/8″ NPT (F) for 1 piece

    ————————————————————————————————————————————————————————————————————————————————————————————————————————————————————
