Application:
Hydraulic wrenches, bolt tensioners, torque tools, high-pressure pumps, jacks, rescue equipment, tools for breaking and other high-pressure quick change occasions.
| Technical data | ||||
| Gauge | HX-10 | HX-15 | HX-20 | HX-30 |
| Rated pressure(MPa) | 100 | 150 | 200 | 300 |
| Burst pressure(MPa) | 260 | 300 | 400 | 600 |
| Path | 2.5 | 2.5 | 2.5 | 2.5 |

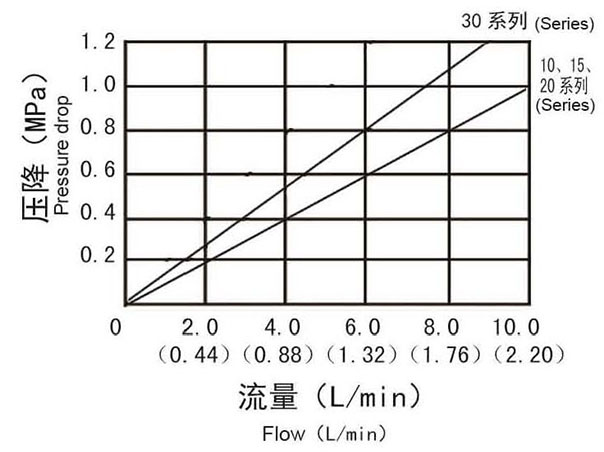

| Flow | 6 | 6 | 5.8 | 4.6 |
| Temperature range | -30℃~+100℃ | -30℃~+100℃ | -30℃~+100℃ | -20℃~+80℃ |

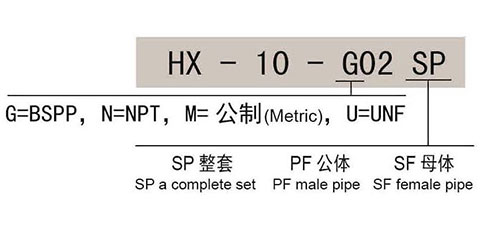

Product numbers:

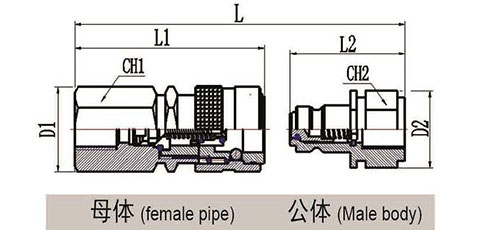

| Model | Thread | L | L1 | L2 | D1 | D2 | CH1 | CH2 |
| HX-10-G02-SP | G1/4 | 82 | 62.5 | 38 | 28 | 25.4 | 24 | 22 |
| HX-10-U02-SP | UNF1/2 | 82 | 62.5 | 38 | 28 | 25.4 | 24 | 22 |
| HX-10-N02-SP | NPT1/4 | 82 | 62.5 | 38 | 28 | 25.4 | 24 | 22 |
| HX-10-M02-SP | M14x1.5 | 82 | 62.5 | 38 | 28 | 25.4 | 24 | 22 |
| HX-15-G02-SP | G1/4 | 82 | 62.5 | 38 | 28 | 25.4 | 24 | 22 |
| HX-15-N02-SP | NPT1/4 | 82 | 62.5 | 38 | 28 | 25.4 | 24 | 22 |
| HX-20-G02-SP | G1/4 | 82 | 64 | 38 | 30 | 25.4 | 24 | 22 |
| HX-30-M02-SP | M16x1.5 | 102 | 64 | 55.3 | 30 | 25 | 22 | 22 |
