WY-2/5C-TJ1 Chemical Injection Package

  • Model: WY-2/5C-TJ1
  • It adopts a modular, centralized, prefabricated integrated dosing system, characterized by strong integration and advanced technology.
  • The system is internally divided into three main systems: solution storage tank, pumps and piping, and electrical system.

Share to

Overview

WY-2/5C-TJ1 Chemical Injection Package is a fully automated integrated chemical injection system suitable for use in oil fields, water treatment, chemical, and pharmaceutical industries. It features strong integration , advanced technology , and a high degree of automation. It can flexibly realize all or any combination of one or more functions, including automatic injection and automatic start/stop.

The solution storage tank system includes chemical reagent storage tanks, level gauges, and other components. The pumps and piping system includes flow calibration columns, Y-type filters, precision metering pumps, pulse dampers, safety valves, piping, and piping valves. The electrical system mainly includes local automated operation, remote operation, and data logging functions.

Advantage

  • All pipelines are made of 316 stainless steel.
  • All fluid components and piping connections use compression fittings for easy tightening and replacement later.
  • Open-structure skids are easy to maintain and service.
  • The open-structure skid base plate design features a 16mm recessed liquid receiving tank to prevent chemical reagent leakage.
  • The open-structure skid features a top drainage plate to block some direct sunlight and rain.
  • The equipment flow rate can be infinitely adjusted within the range of 0-100%, and precisely adjusted within the range of 10-100%.
  • Scheduled tasks can be set on the device via the control panel.
  • Three completely independent chemical injection subsystems are integrated into the same skid, with the three agents stored, metered, and delivered separately without interference.
  • Explosion-proof design: The control cabinet is explosion-proof, and the electrical wiring uses explosion-proof rigid conduit, suitable for flammable and explosive environments such as oil and gas and chemical plants.

Model: WY-2/5C-TJ1

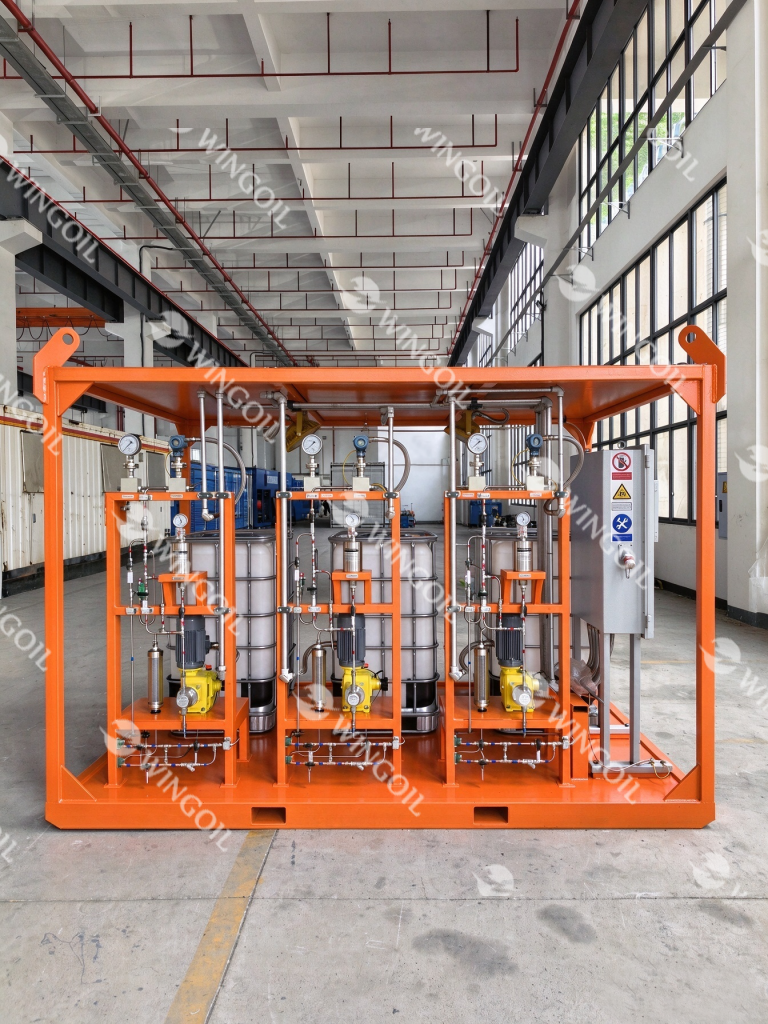

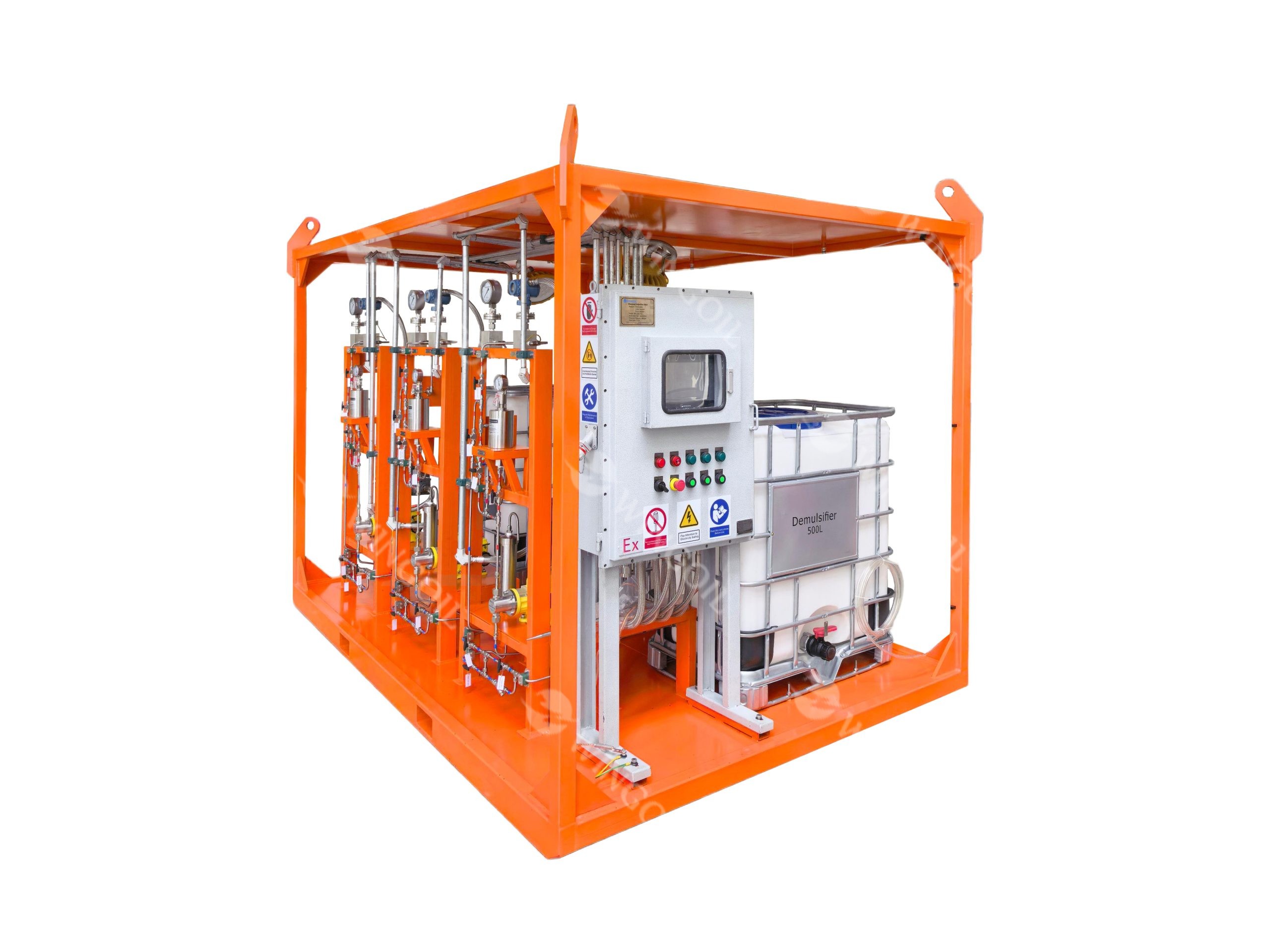

WY-2-5C-TJ1 Chemical Injection Package 2

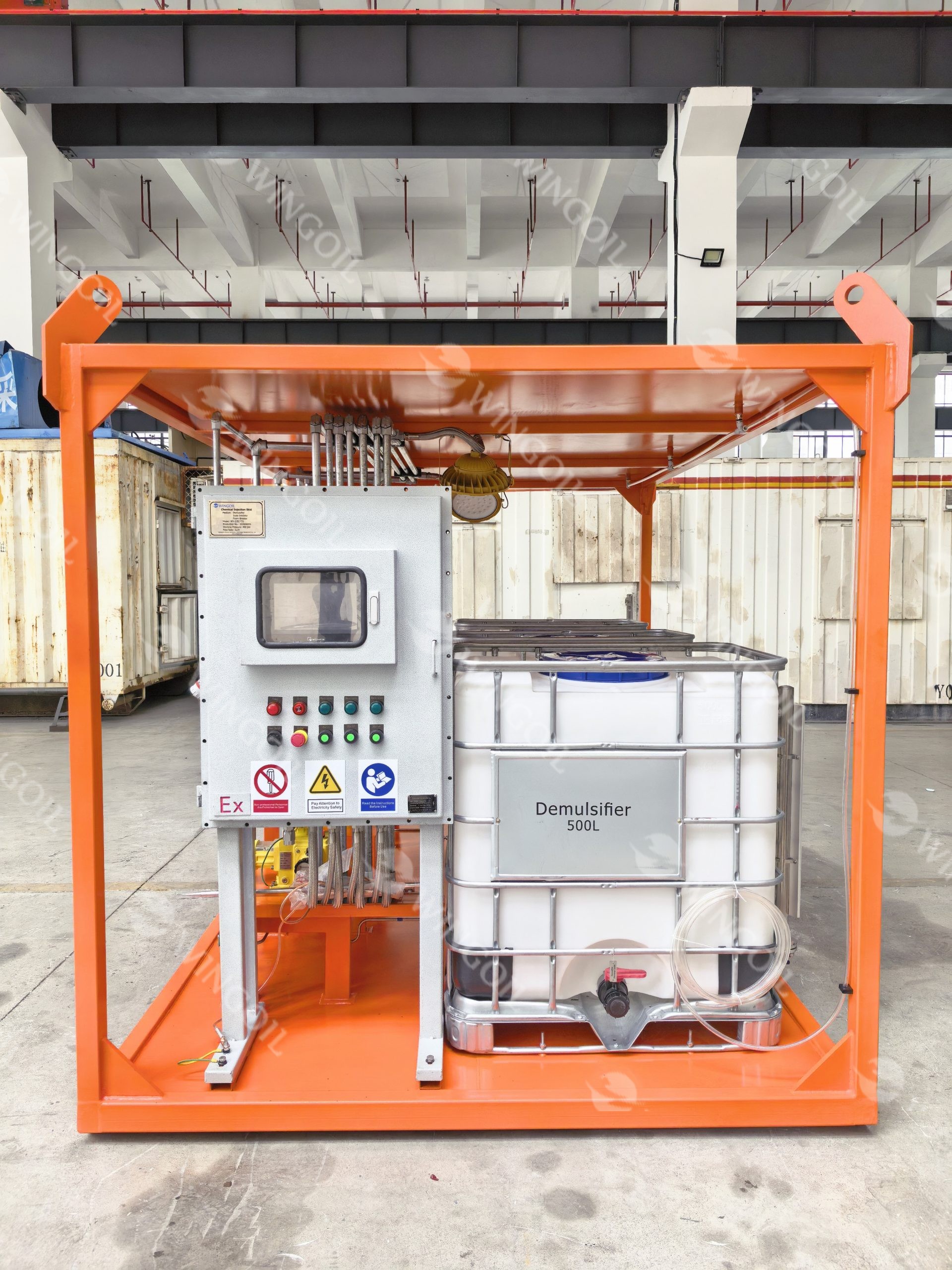

WY-2-5C-TJ1 Chemical Injection Package 3

FAQ

①  Driving air source pressure is too low (Driving Air Source Pressure * Boost Ratio = High-Pressure Outlet Pressure)a. Check whether the driving air pressure reaches the rated value.

b. Listen for air leaks or abnormal noises in the air loop.

c. Adjust the driving air pressure to the required value.
② Filter—Pressure Regulator Component Failure
Check if the pressure regulator filter is blocked or if there is water accumulation.
③ Pressure fluctuationsa. Observe the pressure gauge at the outlet of the pressure regulator to ensure the pressure remains stable at the rated value.

b. Consider adding pressure stabilization protection as needed, such as installing a small pressure buffer tank to absorb momentary pressure fluctuations and ensure stable air pressure at the pump end.

Model: WY-2/5C-TJ1

MediumDemulsifier, Scale Inhibitor, Foam breaker
Dimension3000*2100*2100mm
Explosion-proof ratingEXd II
Power supply AC 400V ±10% 50Hz 3φ
Max. pressure50 bar / 725 psi
Max. flow rate2 L/h
Flow rate adjustment range0.6-2 L/h
Tank volume for each medium500L

————————————————————————————————————————————————————————————————————————————————————————————————————————————————————
