210MPa Chemical Injection Surface Package
- The control panel features a user-friendly interface that allows operators to monitor and adjust system parameters in real-time.
- The package is designed with safety in mind, incorporating multiple safety features such as pressure relief valves, temperature transmitter, and emergency shutdown button. And it’s also designed for ease of maintenance, with easy access to components and minimal downtime required for routine maintenance tasks.
Share to
Overview
This set of equipment is mainly used for high-pressure injection of chemical reagent such as diesel and benzaldehyde. The device is a complete closed-loop system consisting of three skids: Chemical Injection Skid, Chemical Reagent Storage Tank Skid, and Explosion-proof Air Compressor Skid.
Application
- Mainly used for high-pressure continuous injection of paraffin inhibitor, diesel, antifreeze and other chemical reagents in oil and gas wells.
- It can also be used as the ultra-high pressure test equipment for pressure testing of oil casing, BOP, and so on.
Feature
- With automatic and manual pressure adjustment function.
- The storage tank has automatic heating and liquid filling functions.
- With pressure and flow rate curve display and automatic recording function.
- The components adopt ExdII BT4 or above explosion-proof grade, which is safer and more reliable.
Parameter
| Model | Name | Main Technical Parameters | Function Brief |

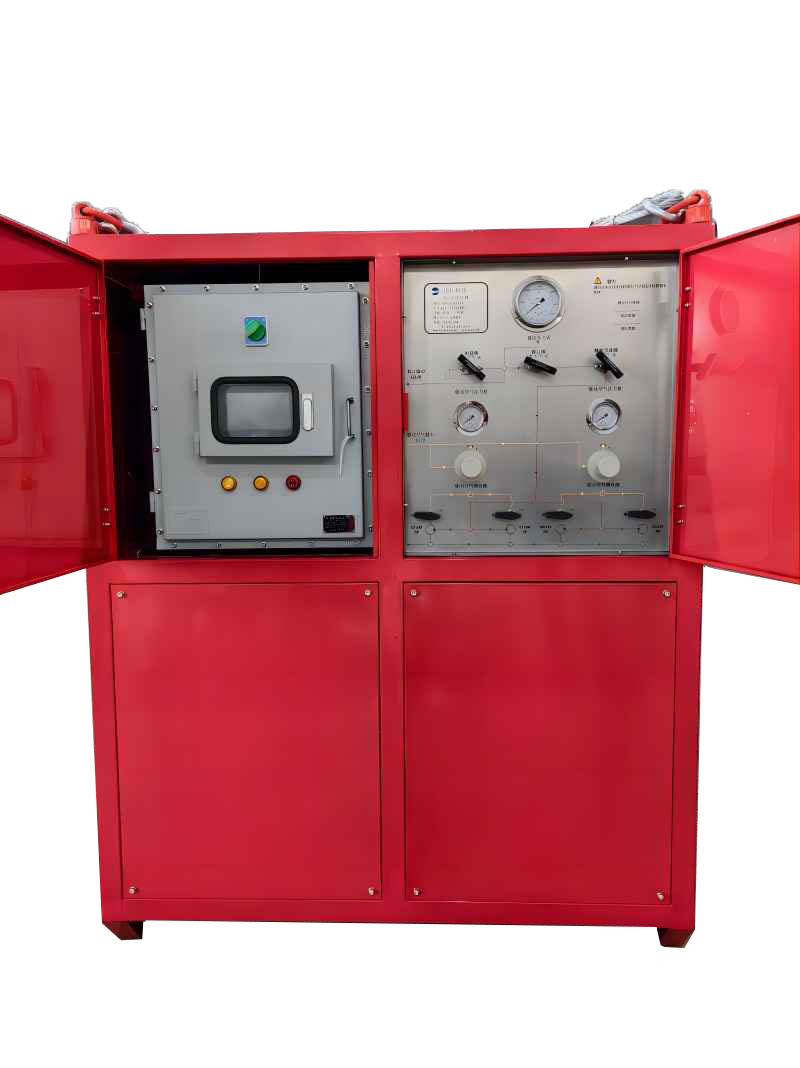

| WY-210CH-J2 | Chemical Reagent Injection Skid | Pressure: 210MPa Flow rate: 3.38L/min | Self-contained equipment, only chemical reagents can be injected into the system |
| WY-100-J2 | Explosion-proof Air Compressor Skid | Pressure: 1MPa Displacement: 2.3m³/min | Explosion-proof and energy-saving air compressors |
| WY-1000L | Chemical Reagent Storage Tank Skid | Volume: 1000L | Liquid storage tank with heating, heat preservation, and stirring |
————————————————————————————————————————————————————————————————————————————————————————————————————————————————————
