Overview
Portable chemical injection equipment is used for the injection of various chemical liquids. It uses an air-driven hydraulic pump as an injection power source to infinitely adjust the injection pressure and injection flow rate.
The equipment is connected to the drive air power source and the workpiece (wellhead or pipeline). The portable reel spools the individual tubes neatly to increase their service life and standard operation.
Features
- Infinitely variable output pressure and flow rate.
- Portable structure for easy transportation and hoisting.
- Holds static pressure without generating heat or consuming power.
- The reel hose skid places the chemical medium transfer line and the drive air line.
- Adjust the injection pressure and the equipment automatically injects the chemicals continuously.

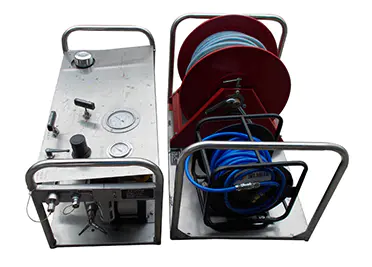

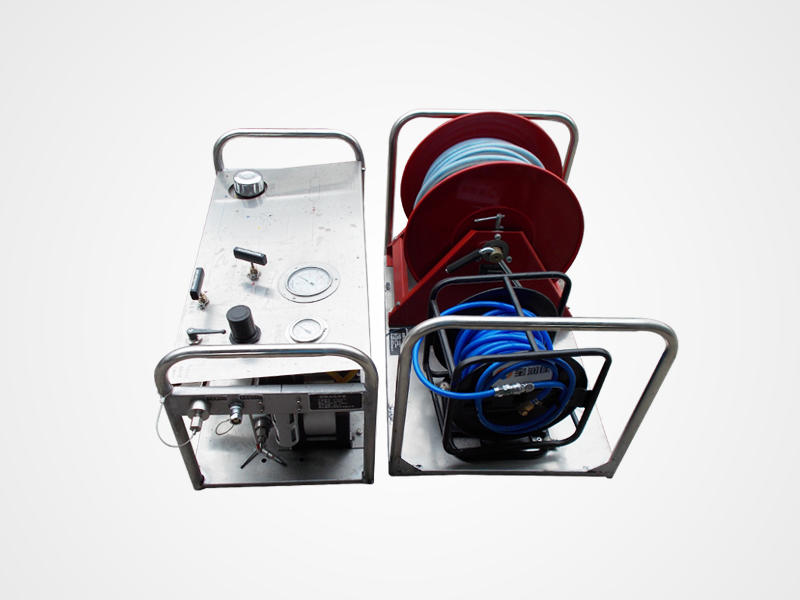

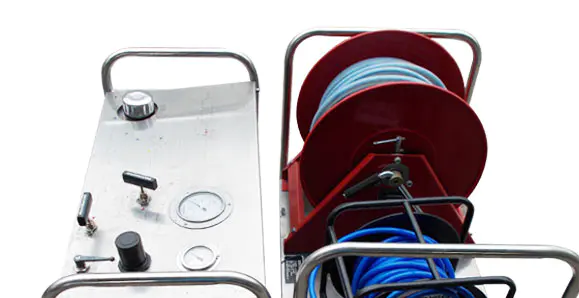

Model: WY-1000CH-J0
Model: WY-1000CH-J0

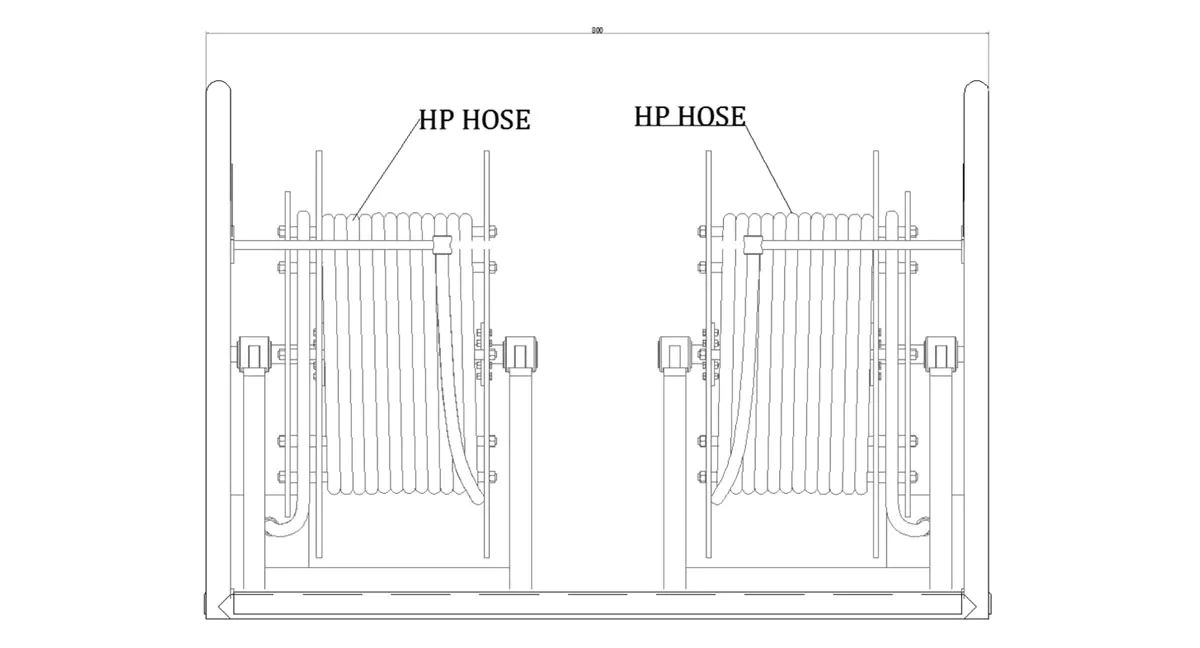

with Hose Reel
| Air driven hydraulic pump model | GSF150 |
| Pressure ratio | 1:151 |
| Max. flow rate | 1.49L/min |
| Pressurized medium | Chemical liquid (methanol, ethanol) |
| Drive air source | Pressure 6 to 8 bar; Flow rate: 1500LN/ min |
| Max. outlet pressure | 1000 bar / 15,000 psi |
| Max. working temperature | 60°C |
| High pressure pipe | Rated pressure 1800bar, model DN4*40m |
| Drive air tube | Pressure 10bar, model DN8*20m |

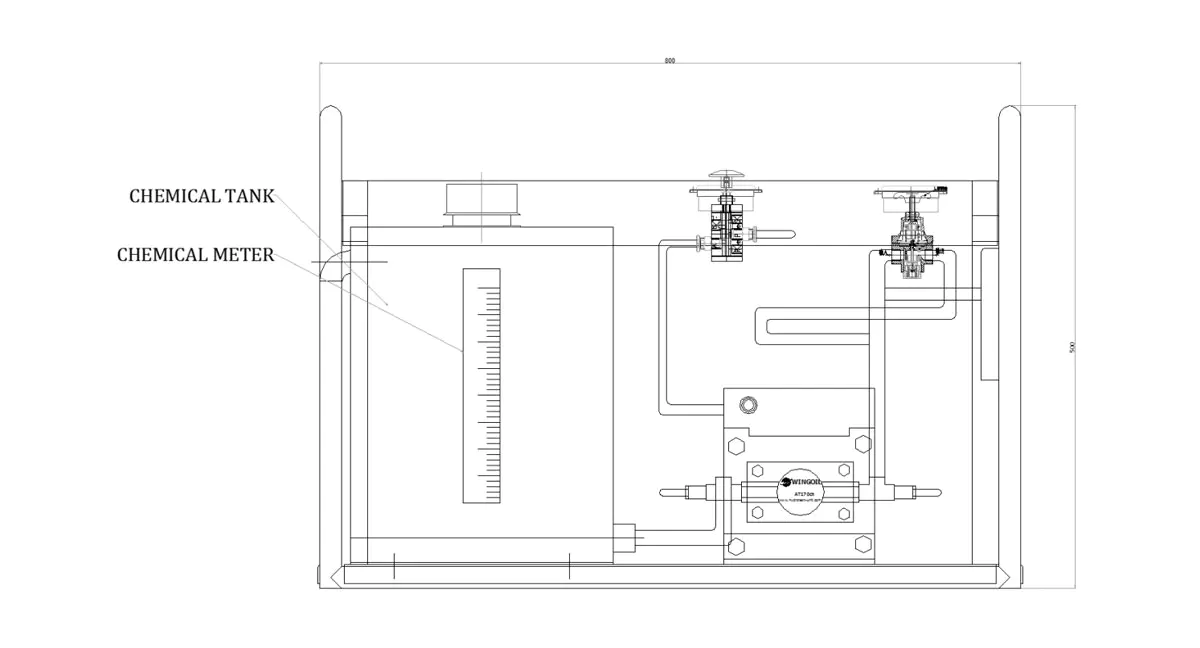

| Chemical liquid tank | 30L |
Connection
| Compressed air inlet | 1/2FNPT |
| Hydraulic outlet | G1/4M-60° |
| Chemical medium inlet | DN15 |
| Sewage outlet | 1/2FNPT |
| High pressure hose | G1/4F-60° |
Construction
| Panel | Stainless steel |
| Gas cylinder | Stainless steel |
| Pressure gauge | Stainless steel |
| Valve | Stainless steel |
| Tube | Stainless steel |
| Connections | Stainless steel |
| Hydraulic Cylinder | Anodized aluminium |
| Piston | Stainless steel |
| Booster pump head | Stainless steel |
Hydraulic Pressure Static Conditions (@7bar)
| Air pressure (bar) | 0 | 1 | 2 | 3 | 4 | 5 | 6 | 7 |
| Hydraulic pressure (bar) | 0 | 170 | 340 | 510 | 680 | 850 | 1020 | 1190 |
| Output flow rate (L/min) | 1.49 | 0.69 | 1.6 | 1.43 | 1.3 | 0.28 | 0.22 | 0.12 |
————————————————————————————————————————————————————————————————————————————————————————————————————————————————————
