Overview
The multi-functional well control and pressure test system is used for tool downhole and ground pressure test. The equipment uses compressed air as the power source for rapid pressure detection, and has data display and electronic record requirements.
Features
- Digital recording function.
- Stainless steel for all kinds of harsh environments.
- Electronic recording system and mechanical control system are designed separately.
- The control panel is etched with a schematic diagram, and the operation flow is clear at a glance.
- The use of high-pressure, large-displacement pumps enables functional control of different pressures, flows, and compression times.

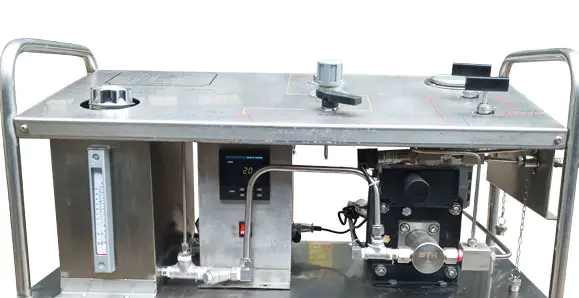

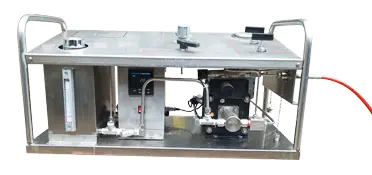

Model: WY-80W-J0/L
Model: WY-80W-J0/L
with Paperless Recorder
| Pressure ratio | 1:100 |
| Medium | Clean water |
| Max. output pressure | 8300bar/@8.3bar |
| Max. flow rate | 3.62L/min @7bar |
| Max. air pressure | 10 bar / 145 psi |
| Air consumption | 1000L/Min@7bar |
| Tank capacity | 20L |
| Dimension | 1000W*460W*500H (mm) |
| Recorder | 360L*180W*320H |
Connection
| Compressed air inlet | G1/2 |
| High-pressure outlet | 1/2NPT |
| Water inlet | DN50 |
| Aviation plug | 2 cores |

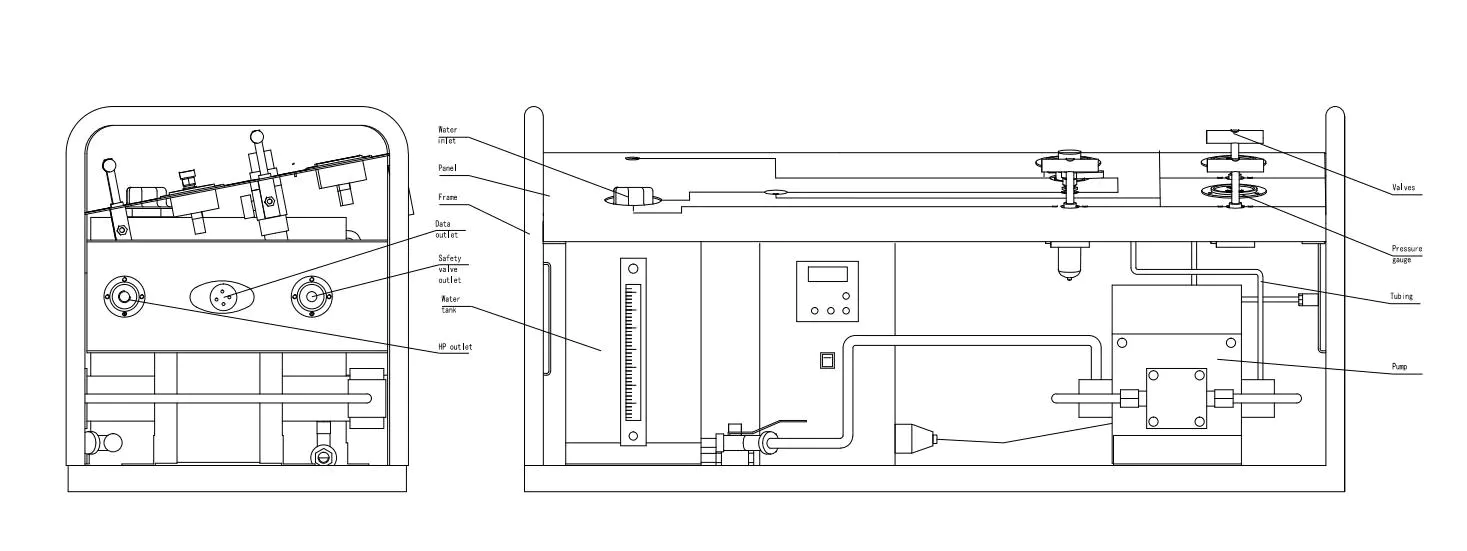

Construction
| Frame and panel | Stainless steel |
| Tank | Stainless steel |
| Pressure gauge | Stainless steel |
| Valve | Stainless steel |
| Tube | Stainless steel |
| Connector | Stainless steel |
| Hydraulic cylinder | Anodized aluminium |
| Piston | Stainless steel |
| Pump head | Stainless steel |
| Flow meter | Carbon steel |
| Recorder | Stainless steel |
Hydraulic Pressure Static Conditions (@7bar)
| Air pressure (bar) | 0 | 0.4 | 1.0 | 1.5 | 2.0 | 3.0 | 5.0 | 7.0 |
| Hydraulic pressure (bar) | 0 | 40 | 100 | 150 | 200 | 300 | 500 | 700 |
| Output flow rate (L/min) | 3.62 | 3.02 | 2.56 | 2.26 | 1.81 | 1.51 | 1.06 | 0.9 |
————————————————————————————————————————————————————————————————————————————————————————————————————————————————————
